Motion Control Rotary Encoders

Elcis 68-200-1828-B-CV-R-2.50 Incremental Encoder

Name: ELCIS 68-200-1828-B-CV-R-2.50 INCREMENTAL ENCODER
Brand: ELCIS
SKU: 980511
Availability: LimitedAvailability

elcis-68-200-1828-b-cv-r-2-50-incremental-encoder-1

elcis-68-200-1828-b-cv-r-2-50-incremental-encoder-2

Gebraucht

Auf Lager3 EinheitenVersandbereit

INCREMENTAL-ENCODER Elcis 68-200-1828-B-CV-R-2.50 Encoder mit Massivwelle, bidirektionalem Ausgang und 200 Impulsen. Verfügt über NPN-, Line-Treiber- und Push-Pull-Elektronik, betrieben mit 18“28 V und bis zu 300 kHz.

Hersteller

ELCIS

SKU

980511

Kategorie

Rotary Encoders

Zustand

Gebraucht

200 68-200-1828-B-CV-R-2.50 bidirectional Driver Elcis Encoder Impulse Incremental Industrial Line Motion NPN Pull Push Sensor shaft Solid

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

ELCIS 68-200-1828-B-CV-R-2.50 INCREMENTAL ENCODER

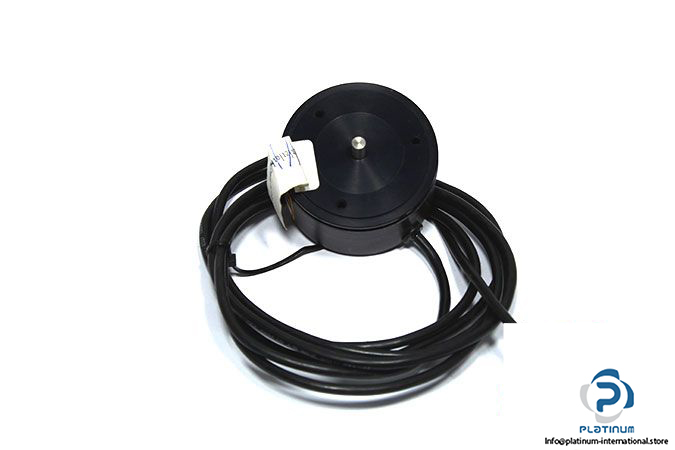

This high-precision incremental encoder from Elcis is engineered for accurate motion control and feedback applications. Designed with a robust solid shaft and reliable electronics, it supports bidirectional operation and delivers dependable performance in industrial environments.

Manufacturer: Elcis

Type: Incremental Encoder

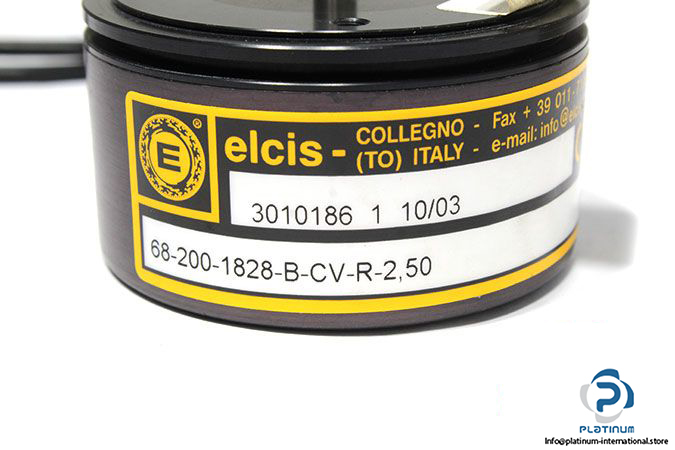

Order Code: 68-200-1828-B-CV-R-2.50

Part No.: 3010186 1 10/03

Shaft	Solid Shaft
Shaft Diameter	Ã¸ 6Ã—10
Shaft Load	Max 2 kg
Impulse	200

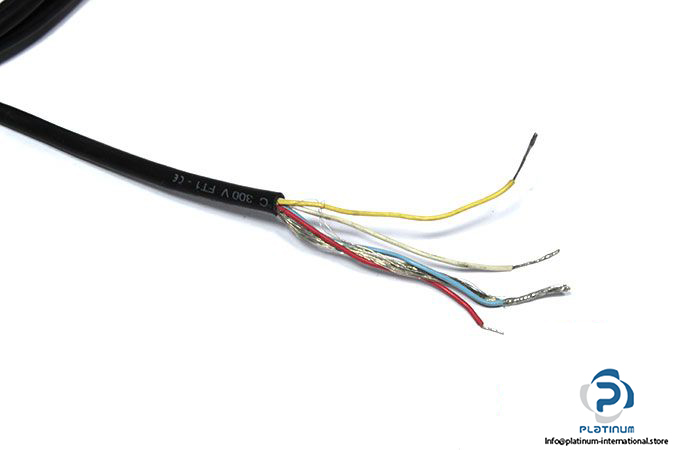

Connection	Radial Cable
Power Supply	18 / 28 V
Version	Bidirectional
Cable Length	2.5 m
Electronics	NPN, Line-driver, Push-pull
Frequency	Max. 300 kHz
Operating Temperature	0 / 70°C
Dimensions	Ã¸ 68Ã—37.5 mm “ IP53 to IP66
