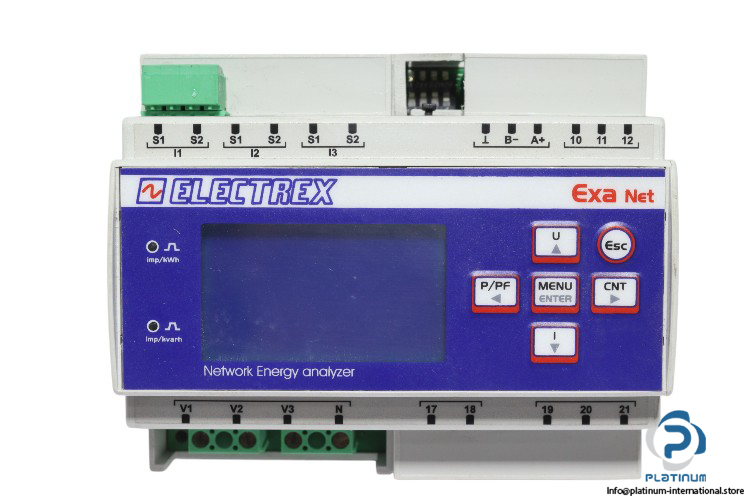

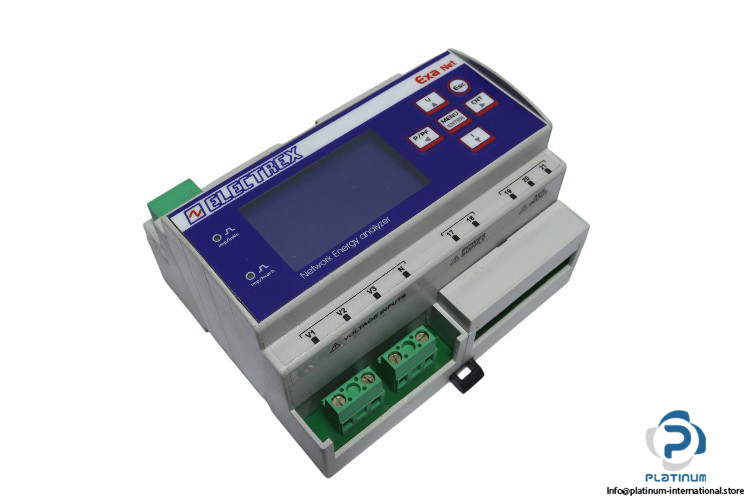

Electrex PFNE6-1H709-0M0 Network Energy Analyzer
Energieanalysator und Datenmanager Der Electrex PFNE6-1H709-0M0 (EXA RJ45 D6 H) ist ein leistungsstarker Energieanalysator mit 85-265 V AC Versorgung, 7 RJ45-Kommunikationsports und einem DIN-Schienenmontagedesign für die industrielle Energiemonitoring.
Electrex PFNE6-1H709-0M0 Energy Analyzer & Data Manager
The Electrex PFNE6-1H709-0M0, also known as EXA RJ45 D6 H, is a high-precision Energy Analyzer & Data Manager designed for industrial energy monitoring and data management applications. With robust communication features, a wide supply voltage range, and a compact DIN-rail mountable design, it ensures efficient power analysis and real-time data logging.
Manufacturer: Electrex
Type: Energy Analyzer & Data Manager

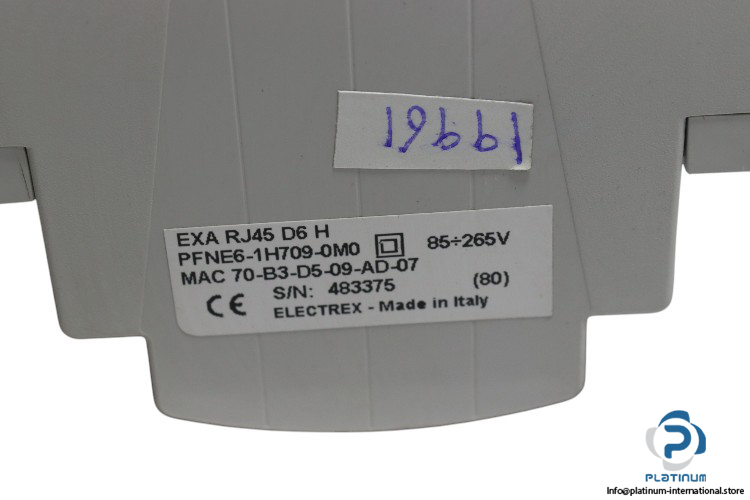

Model: PFNE6-1H709-0M0
Alt. Model: EXA RJ45 D6 H
MAC Address: 70-B3-D5-09-AD-07
| Supply Voltage | 85 to 265 V AC |
| Dimension | 6 modules DIN |
| Current Input | 1 A |
| Communication | 7, RJ45 |
| Internal Module | No internal module, Log service for the internal analyzer |
| Protection Class | IP20/40 |
| Operating Temperature | -20 to 60 °C |
| Dimensions (W x H x D) | 90.5 x 106.2 x 62 mm |
