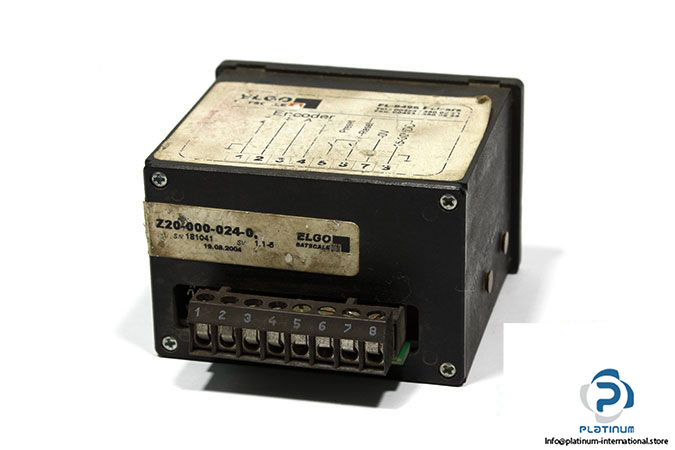

Elgo Z20-000-024-0 Miniature Position Indicator
Gebraucht
Auf Lager1 EinheitVersandbereit
144,44$
MINIATURE POSITION INDICATOR ELGO Z20-000-024-0 ist ein kompakter digitaler Positionsanzeiger mit 5-stelliger LED-Anzeige, 20 kHz Eingangsfrequenz und 15“30 VDC Stromversorgung, entwickelt für hochauflösende Positioniersysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
ELGO Z20-000-024-0 MINIATURE POSITION INDICATOR
The ELGO Z20-000-024-0 is a compact and efficient miniature position indicator engineered for precise positioning and control in automation environments. With a clear red 5-digit LED display and fast counting frequency, it is ideal for applications requiring high-resolution feedback and reliable signal input handling.
Manufacturer: ELGO
Type: Miniature Position Indicator
Model: Z20-000-024-0

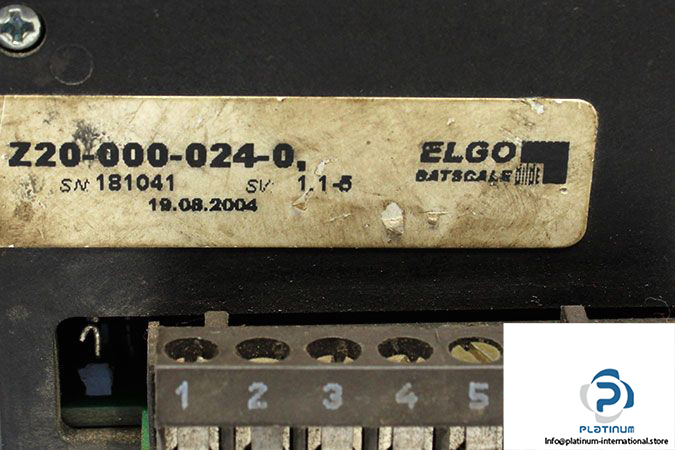

S. No: 181041
| SV | 1.1-5 |
| Power Supply | 15 “ 30 VDC |
| Power Consumption | 1 VA |
| Counting Frequency | 20 KHz = 2 m/s at 0.1 mm resolution |
| Encoder Supply Output | Power Supply |

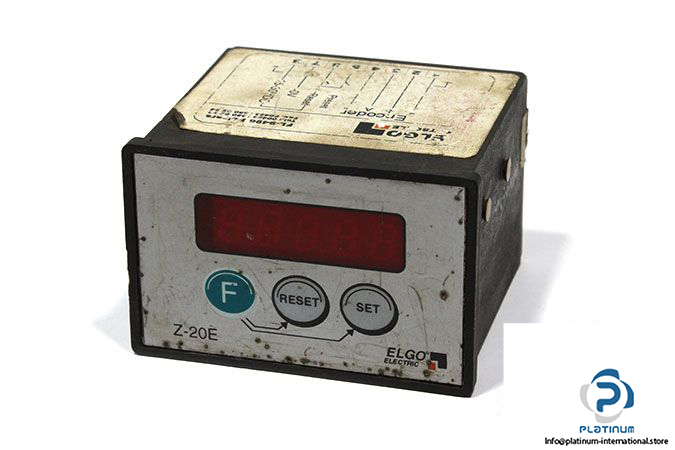

| Display | Red 5 digits LED display + sign, 8 mm high |
| Input Frequency | 90° phase shifted square waves (12 V level) |
| External Set / Reset Inputs | Potential free inputs (max. 10 Hz) |
| Power Down Memory | EE-Prom |
| Housing | Black plastic panel housing |
| Install Depth | 77 mm incl. Connector |
| Outer Dimensions (W × H) | 72 × 48 mm |
| Panel Cut Out (W × H) | 68 × 45 mm |
| Protection Class | IP 40 (installed state) |
