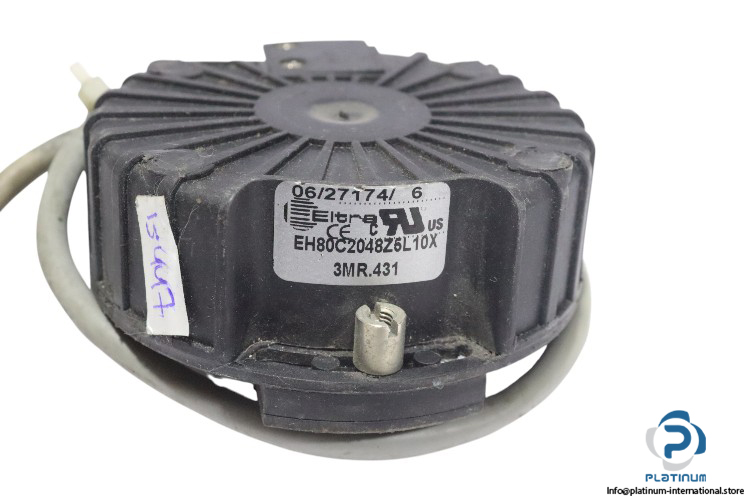

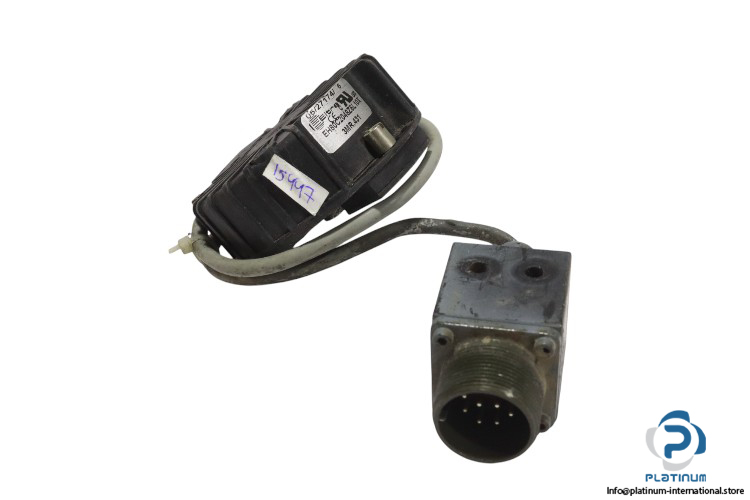

Eltra EH80C2048Z5L10X3MR.431 Incremental Encoder

ELTRA EH80C2048Z5L10X3MR.431 Incremental Encoder

The ELTRA EH80C2048Z5L10X3MR.431 is a high-performance incremental encoder designed for rotary motion sensing in industrial automation systems. Featuring a robust optical sensing mechanism, this encoder includes a blind hollow shaft with a 10 mm bore and synchronous flange mounting for secure and easy installation. The line driver electronic interface ensures reliable signal transmission, while its MIL connector output offers secure connectivity. Built to operate in high-temperature conditions, it withstands up to 100°C and supports rotational speeds up to 3000 RPM, making it ideal for demanding applications.

• Manufacturer: ELTRA
• Type: Incremental Encoder
• Model: EH80C2048Z5L10X3MR.431

Technical Specifications:

• Principle of Operation: Incremental
• Measurement Type: Rotary
• Sensor Type: Optical
• Shaft Type: Blind Hollow Shaft
• Bore Diameter: 10 mm
• Mounting Type: Synchronous Flange
• Electronic Interface: Line Driver

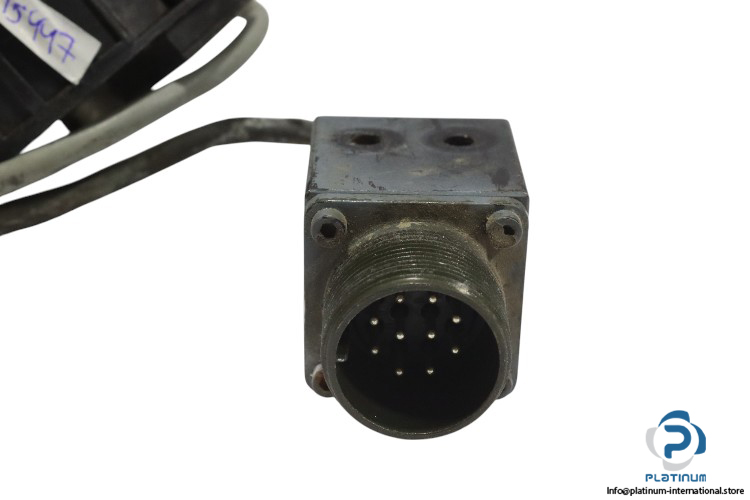

• Output Type: MIL Connector
• Construction Size: 80 mm Diameter
• Power Supply: 5V DC
• Max Rotation Speed: 3000 RPM
• Enclosure Rating: IP54
• Operating Temperature: -20°C to +100°C

Applications:

• Industrial automation and control systems
• Motor feedback and positioning
• Packaging and production machinery
• High-temperature motion sensing environments
