Emas L5K13PUM211R Limit Switch
Neu
Auf Lager1 EinheitVersandbereit
Limit Switch
The EMAS L5K13PUM211R limit switch features a plunger with reset, snap action contacts, and IP65 protection, making it suitable for reliable mechanical position control in industrial applications.1NC1NOActionAutomationComponentsEmasIndustrialIP65L5L5K13PUM211RLimitMechanicalPlungerPositionSeriesSnapSwitch
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

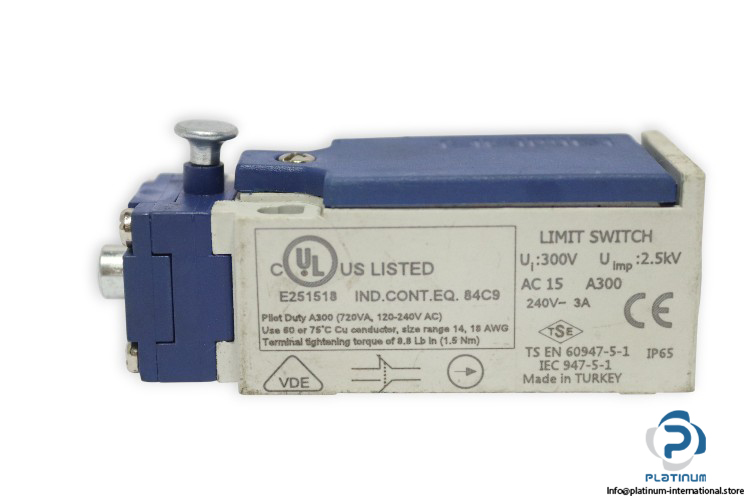

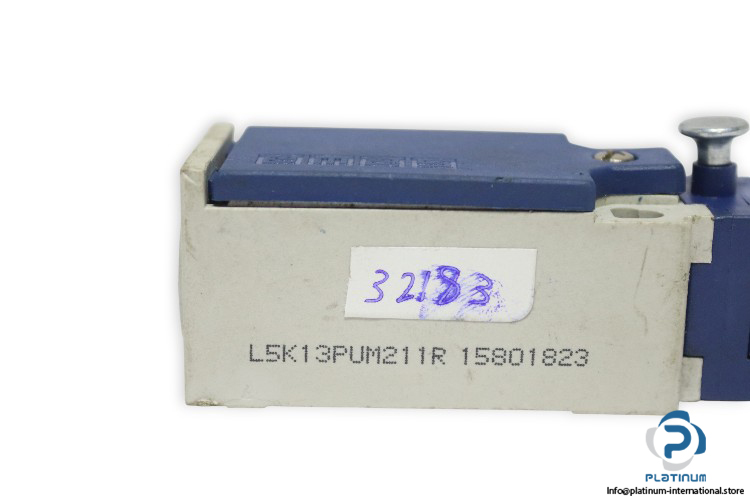

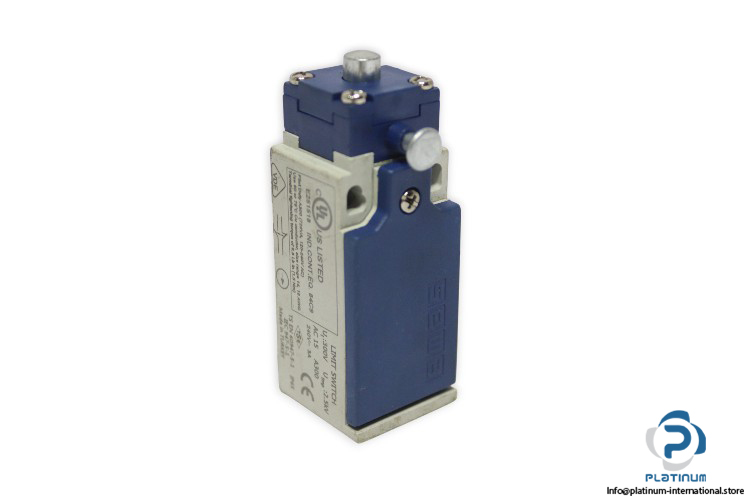

EMAS L5K13PUM211R Limit Switch
The EMAS L5K13PUM211R is a reliable limit switch from the L5 series, designed for precise mechanical position detection in industrial automation systems. It features a durable plunger actuator with reset function and provides consistent switching performance in various applications.
Manufacturer: EMAS
Type: Limit Switch
Model: L5K13PUM211R
Part Number: 15801823
Series: L5
| Output Configuration | 1 normally open + 1 normally closed |
| Impulse Voltage | 2.5 kV |
| Input Voltage | 300 V |
| Contact Operation | Snap action |
| Actuator | Plunger with reset |
| Actuator Type | Plastic |
| Actuator End Unit Material | Metal |
| Protection Class | IP65 |
| Body Material | Plastic |
| Switching Voltage Max | 240 V AC |
| Contact Current Max | 3 A |
| Connection | Cable entry |
| Standard | VDE, E251518 |
