Embraco NEK6165GK Compressor
Neu
Auf Lager1 EinheitVersandbereit
Einphasiger Embraco NEK6165GK Kompressor mit 1/3 PS, 220-240 V Eingangsspannung und R-404A Kältemittel. Entwickelt für kommerzielle Kühlsysteme mit hohem Massenstrom und ausgezeichneter thermischer Stabilität.
1.3220VcommercialcompressorCoolingEmbracoHPISO22lubricantNEK6165GKPhaseR-404ARefrigerationSingleUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

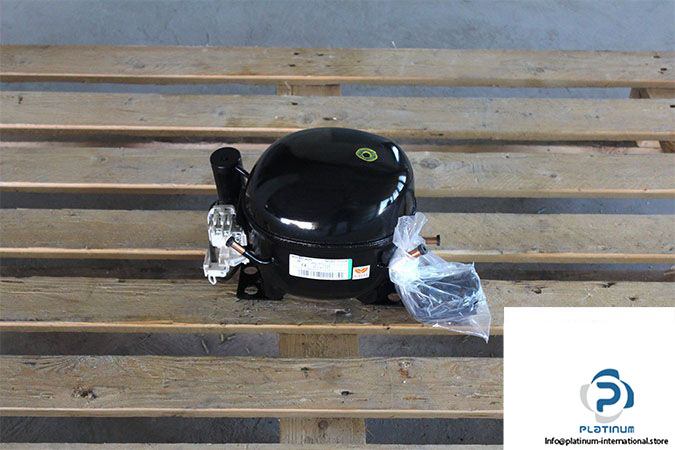

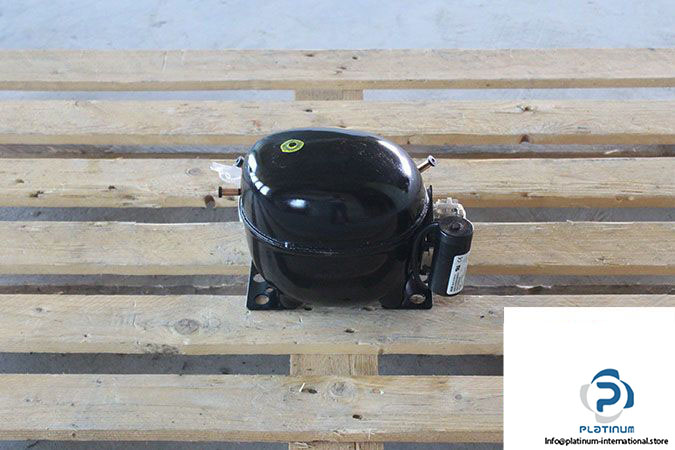

EMBRACO NEK6165GK COMPRESSOR
The Embraco NEK6165GK is a high-performance single-phase compressor designed for commercial refrigeration systems. Operating with R-404A refrigerant, this unit delivers exceptional efficiency and cooling reliability across a wide evaporating temperature range.
Manufacturer: Embraco
Type: Compressors
Model: NEK6165GK

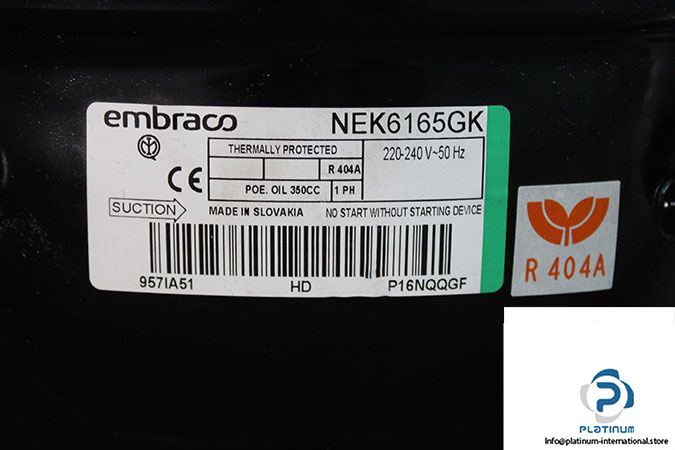

Part No.: P16NQQGF
Engineering Nr.: 957IA51
Phase: 1~ Single Phase
| Horsepower [Hp] | 1/3 |
| Rated Voltage [V] | 220 to 240 |
| Displacement [cm³] | 6.2 |
| Bore [mm] | 20.87 |
| Stroke [mm] | 9.06 |
| Start Winding Resistance [„¦] | 28.9 |
| Run Winding Resistance [„¦] | 6.8 |
| Mass Flow Rate [kg/h] | 28.82 |
| Evaporating Temperature Range [°C] | -20 to 10 |
| Maximum Winding Temperature [°C] | 130 |
| Frequency [Hz] | 50 |
| Refrigerant | R-404A |
| Lubricant Charge [ml] | 350 |
| Lubricants Type/Viscosity | Polyolester / ISO22 |
