Embraco NEK6217GK Compressor
KOMPAKTSET Einphasiger Kältemittelkompressor mit Embraco NEK6217GK, ideal für R-404A Systeme. Inklusive hocheffizientem ELCO Schattierpolmotor und Frigomec Ansaugakkumulator zur Verbesserung der Kühlleistung.

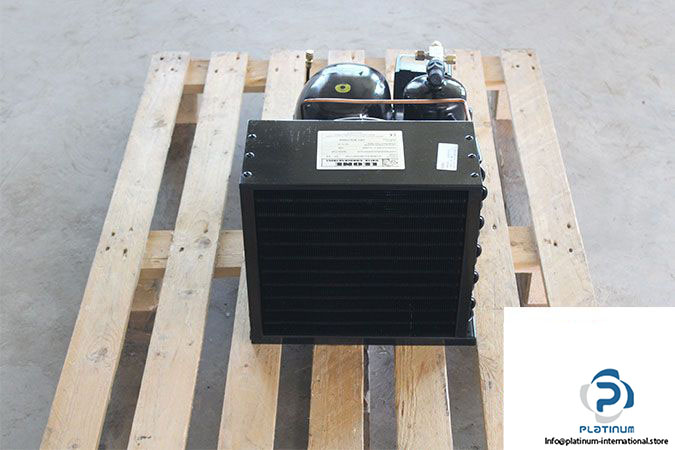

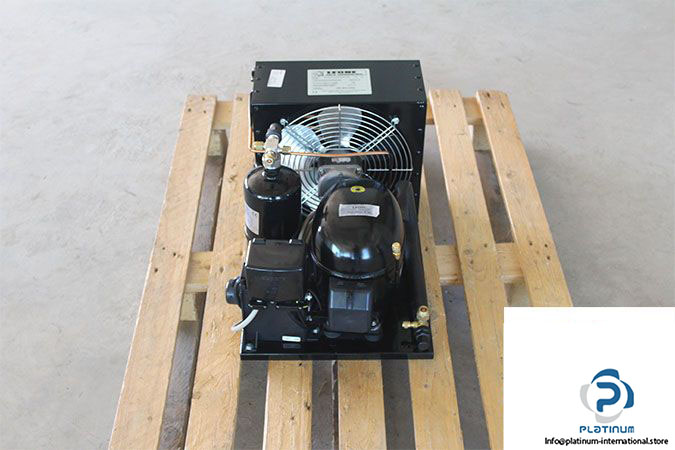

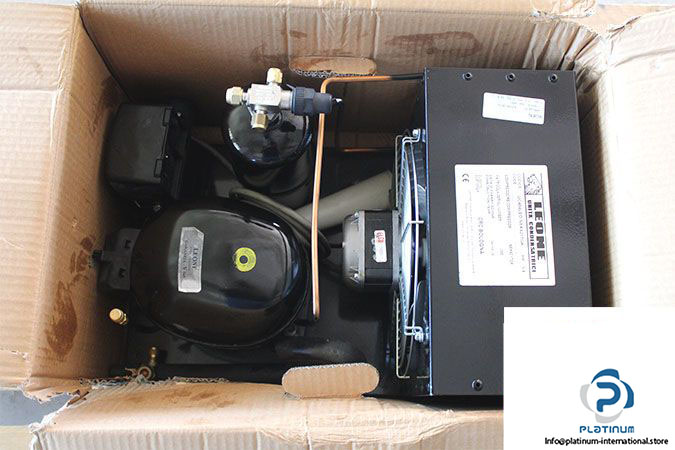

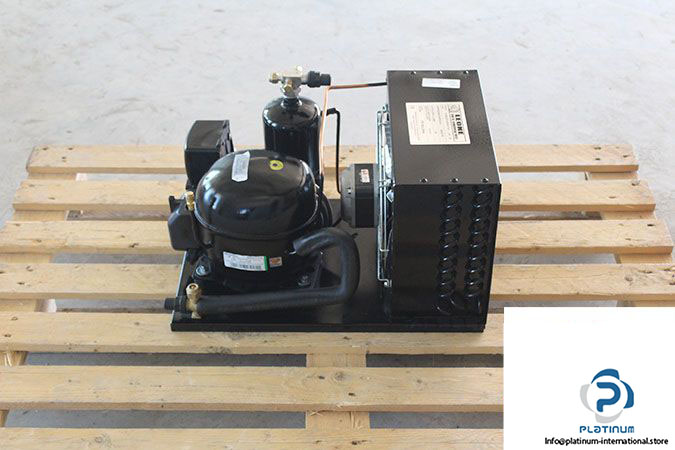

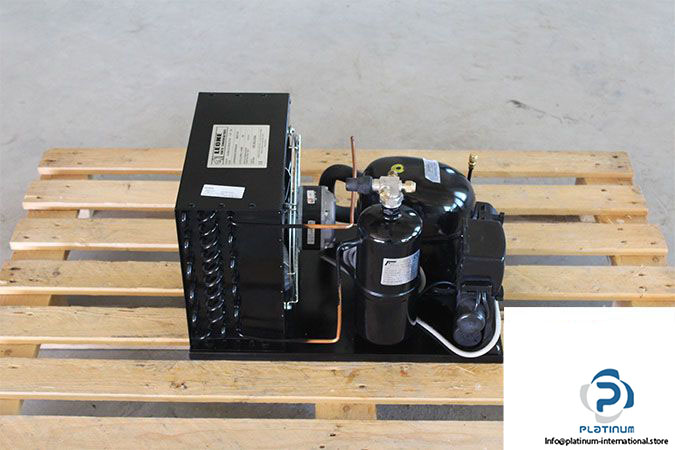

EMBRACO NEK6217GK COMPRESSOR SET
The Embraco NEK6217GK is a high-performance refrigeration compressor engineered for low-temperature applications, designed with robust build quality and optimized for R-404A refrigerant. This unit is paired with an ELCO NET2T18PVN004 shaded pole motor and a Frigomec RV-100X242 suction accumulator, delivering a complete and reliable cooling solution for commercial and industrial systems.
Manufacturer: Embraco
Type: Compressors

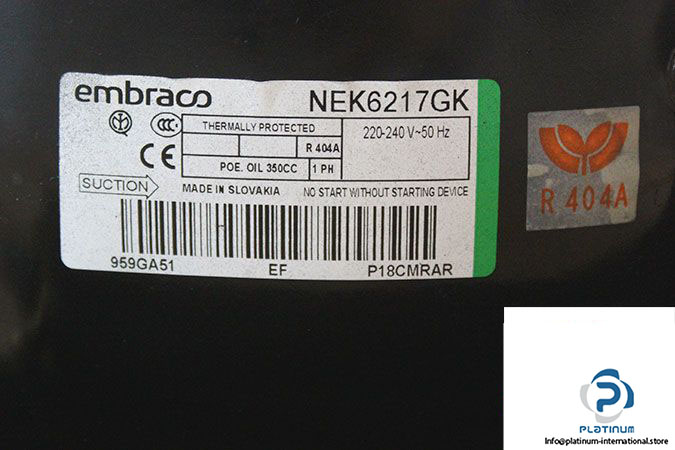

Model: NEK6217GK
Part No.: P18CMRAR

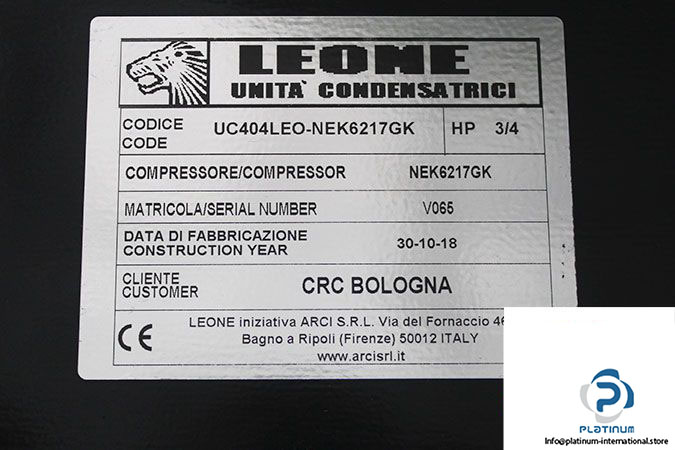

Code: UC404LEO-NEK6217GK
Engineering Nr.: 959GA51
Phase: 1~ Single Phase
| Horsepower [Hp] | ¾ |
| Rated Voltage [V] | 220 to 240 |
| Displacement [cm³] | 14.28 |
| Bore [mm] | 30.157 |
| Stroke [mm] | 20.0 |
| Range Temperature [°C] | -20 to 10 |
| Lubricants Type/Viscosity | ESTER / ISO22 |
| Frequency [Hz] | 50 |
| Refrigerant | R-404A |
| Lubricant Charge [ml] | 350 |

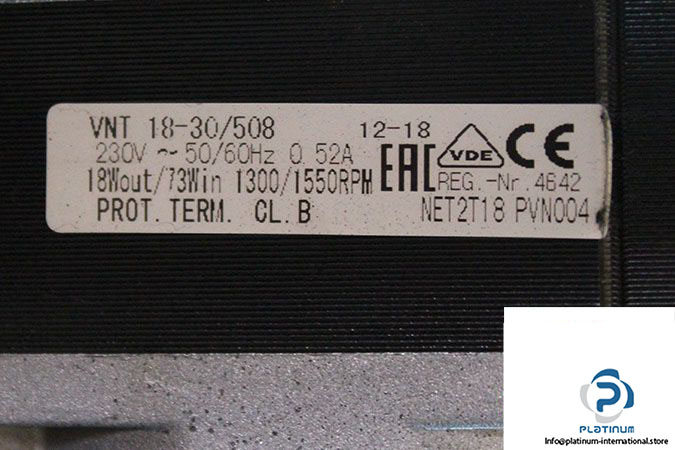

| Attachment | ELCO NET2T18PVN004 Shaded Pole Motor |
| Type Motor | VNT18-30/508 |
| Nominal Voltage [V] | 230 |
| Rated Current [A] | 0.52 |
| Power In [W] | 73 |
| Power Output [W] | 18 |
| Frequency [Hz] | 50/60 |
| Speed [rpm] | 1300/1550 |
| Degree of Protection [IP] | 44 |
| Insulation Class | B |
| Attachment | FRIGOMEC RV-100X242 Suction Accumulator |
| Fluids Group | 2 |
| Volume [L] | 1.6 |
| Temperature [°C] | -10 to 120 / -50 to 120 |
| Max Pressure [bar] | 33 / 24 |
| Test Pressure [bar] | 47.19 |
