Embraco NT6222GK Compressor
Neu
Auf Lager1 EinheitVersandbereit
1 100,00$
KOMPRESSOREINHEIT Embraco 1-PS-Kompressoreinheit mit Elco-Schattierungspolmotor und Frigomec-Saugakkumulator, optimiert für R-404A-Systeme, die zuverlässige Niedertemperaturkühlung und präzise Motorsteuerung benötigen.
16222GKaccumulatorcompressorElcoEmbracoEsterFanFrigomecHPISO22motorNToilPoleR-404ARefrigerationRV-100X242shadedSuctionUC404LEOUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

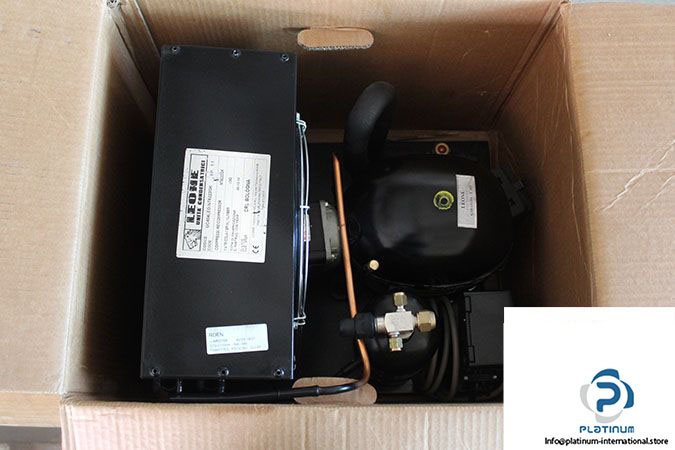

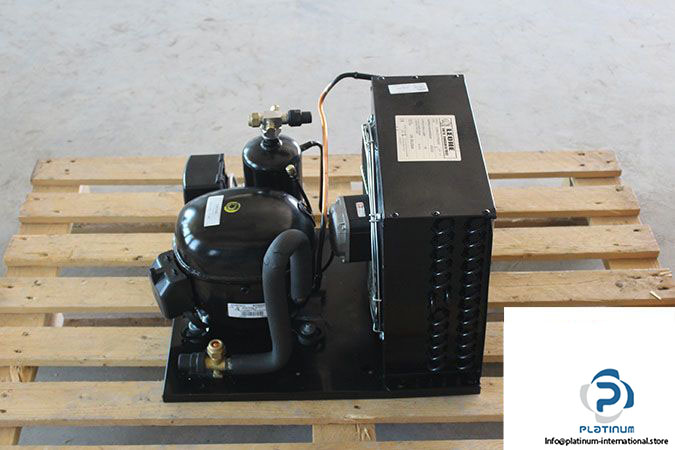

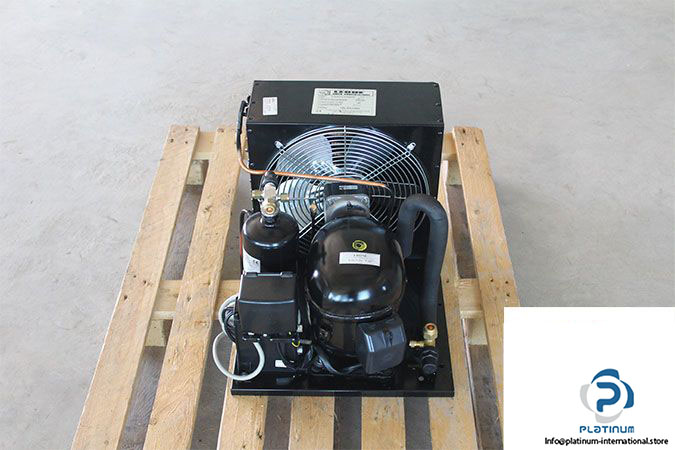

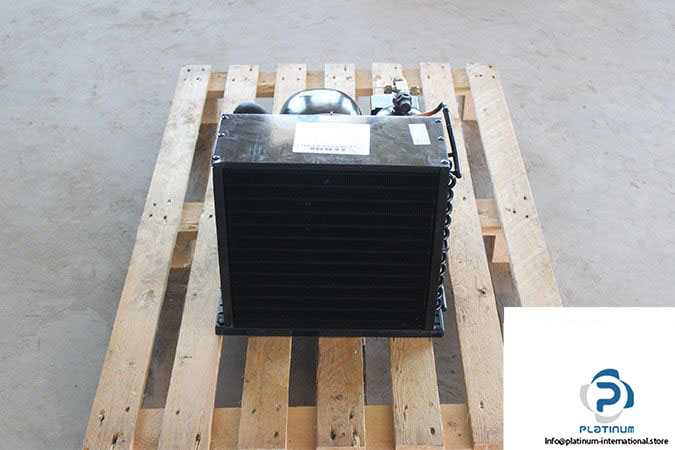

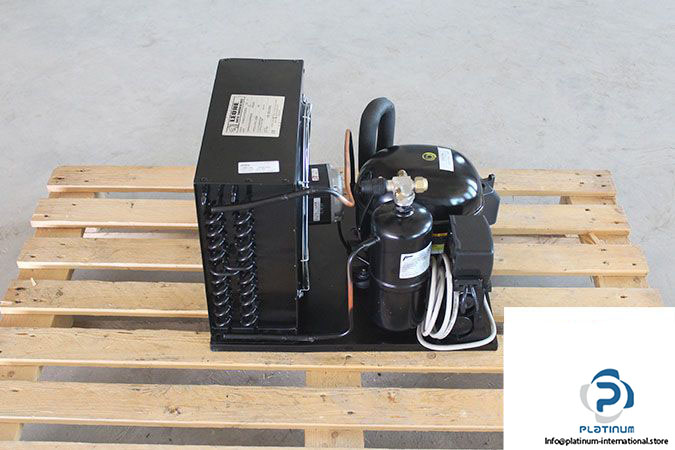

EMBRACO NT 6222GK COMPRESSOR ASSEMBLY
This high-performance Embraco compressor unit is engineered for refrigeration systems requiring robust, energy-efficient cooling under varying conditions. The assembly includes a shaded pole motor from Elco and a suction accumulator from Frigomec, offering a complete, integrated solution for commercial cooling applications.
Manufacturer: Embraco
Type: Compressor

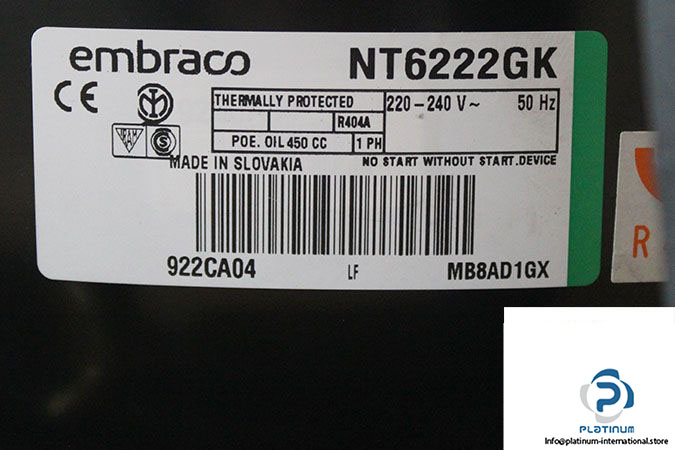

Model: NT 6222GK
Part No.: MB8AD1GX

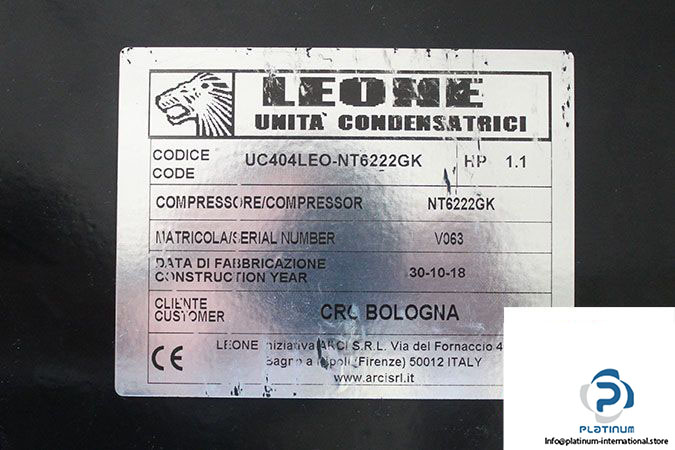

Code: UC404LEO- NT 6222GK
Engineering Nr.: 922CA04
Phase: 1~ Single Phase
| Horsepower | 1 Hp |
| Rated Voltage | 200 to 240/230 V |
| Displacement | 17.39 cm³ |
| Bore | 34.12 mm |
| Stroke | 19.03 mm |
| Range Temperature | -20°C to 10°C |
| Lubricants Type/Viscosity | ESTER / ISO22 |
| Frequency | 50/60 Hz |
| Refrigerant | R-404A |
| Lubricant Charge | 450 ml |
| Attached Component | ELCO SHADED POLE MOTOR |

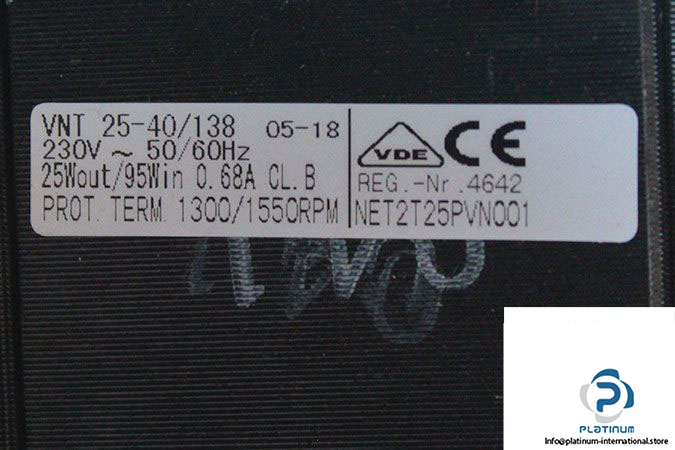

| Type Motor | VNT25-40/138 |
| Nominal Voltage | 230 V |
| Rated Current | 0.68 A |
| Power Input | 95 W |
| Power Output | 25 W |
| Frequency | 50/60 Hz |
| Speed | 1300/1550 rpm |
| Protection Degree | IP44 |
| Insulation Class | B |

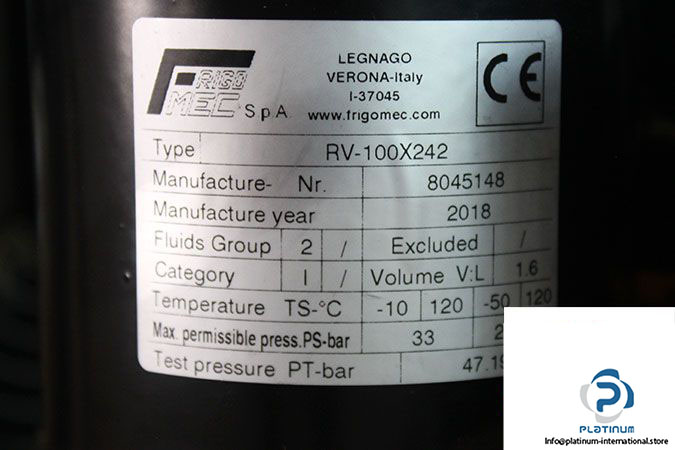

| Attached Component | FRIGOMEC SUCTION ACCUMULATOR |
| Part No. | 8045148 |
| Fluids Group | 2 |
| Volume | 1.6 L |
| Temperature Range | -10 to 120°C / -50 to 120°C |
| Max Pressure | 33/24 bar |
| Test Pressure | 47.19 bar |
