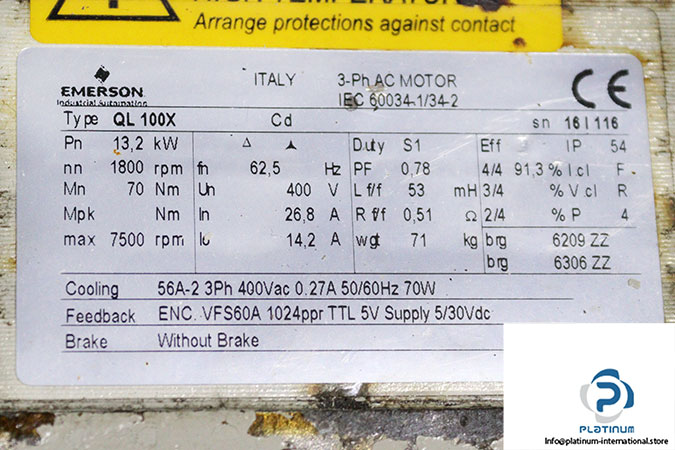

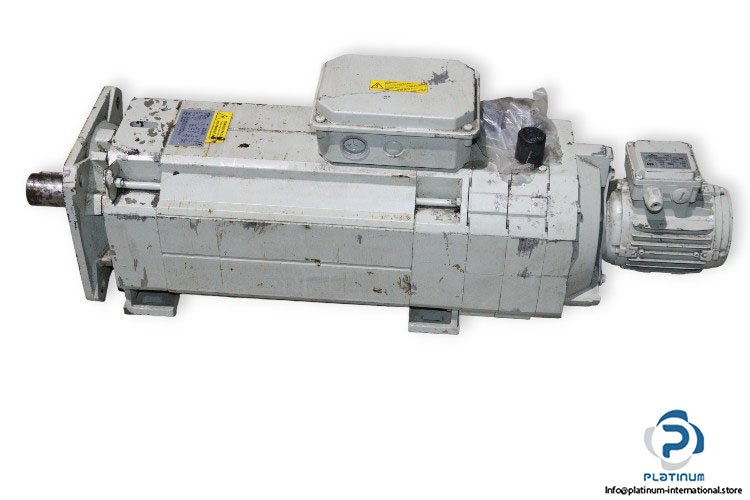

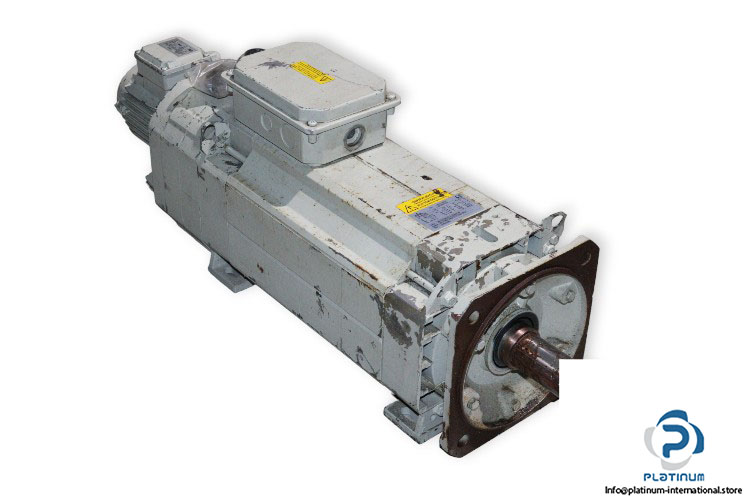

Emerson QL 100X 3 Phase AC Motor

Manufacturer: Emerson
Type: 3 Phase Ac Motor
Model: QL100X

Rated Power [kW]: 13.2
Rated Voltage [V]: 400
Rated Torque [Nm]: 70
Rated Current [A]: 26.8
Stall Current [A]: 14.2
Rated Speed [rpm]: 1800
Max. Speed [rpm]: 7500
Resistance [„¦]: 0.51
Frequency [Hz]: 62.5
Protection Class [IP]: 54
Power Factor: 0.78
Duty: S1
Insulation Class: F

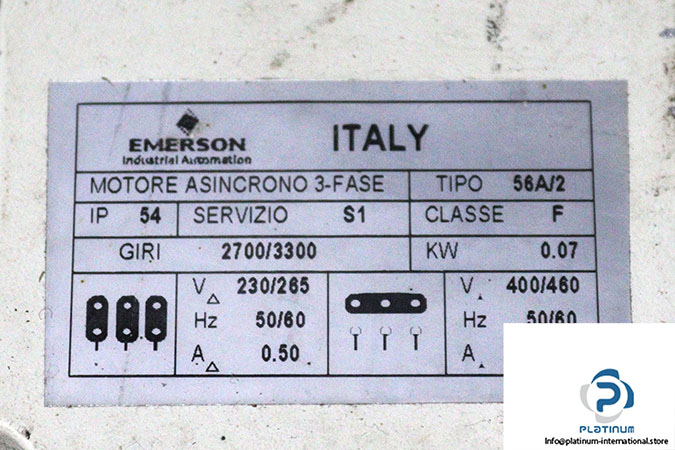

Attachment: Emerson 56A-2 Cooling
Manufacturer: Emerson
Type: Cooling
Model: 56A-2
Rated Voltage [V]: 230-265/400-460
Rated Current [A]: 0.5/0.27
Rated Power [W]: 70
Speed [rpm]: 2700/3300
Frequency [Hz]: 50/60
Protection Class [IP]: 54
Duty: S1
Insulation Class: F
