EMG Eldro ED 23/5C Electro Hydraulic Thruster
Neu
Auf Lager1 EinheitVersandbereit
Elektro-Hydraulischer Stellantrieb EMG ELDRO ED 23/5C mit 220 N Schubkraft, 50 mm Hub und IP65 Schutz, entwickelt für industrielle Brems- und Steuerungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

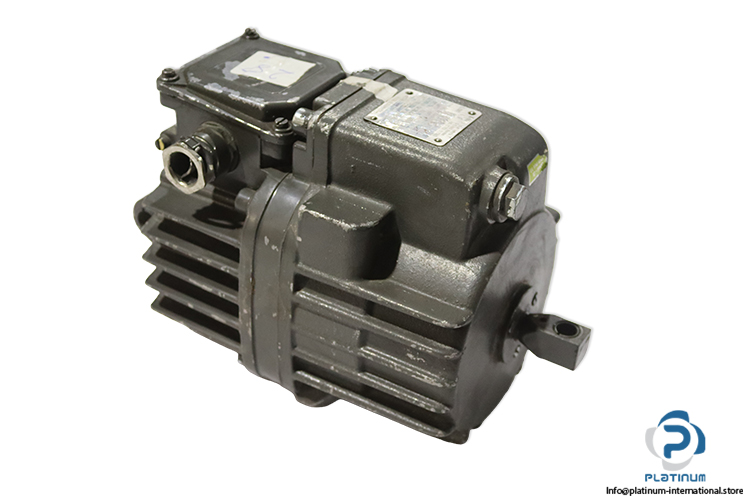

EMG ELDRO ED 23/5C Electro Hydraulic Thruster
The EMG ELDRO ED 23/5C is a robust electro hydraulic thruster designed for reliable and precise actuation in industrial braking and control systems. Built for continuous and intermittent duty, it delivers stable thrust performance with high operational reliability under demanding conditions.

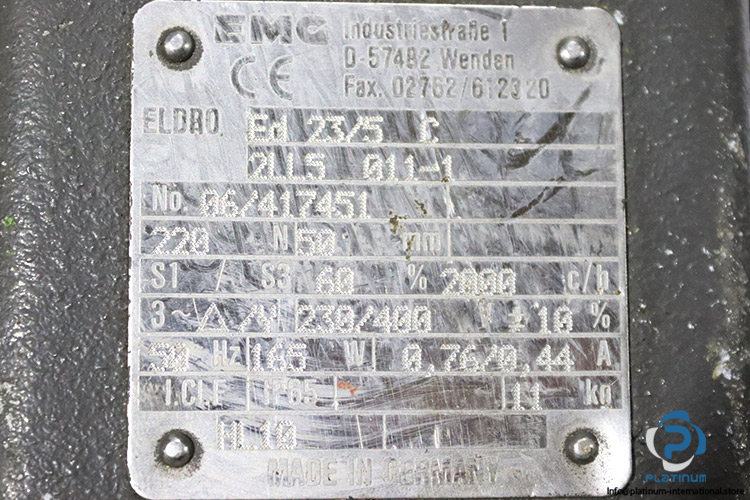

Manufacturer: EMG ELDRO
Series: ED
Type: Electro Hydraulic Thruster
Model: ED 23/5C
Part No.: 06/417451
Code: 2LL5 011-1
| Rated Thrust Force | 220 N |
| Stroke | 50 mm |
| Duty Cycle | S1 / S3 |
| ED | 60% |
| Operating Cycles | Up to 2000 cycles/hour |
| Motor Type | 3-Phase AC |
| Connection | Δ / Y (Delta / Star) |
| Rated Voltage | 230 / 400 V AC |
| Frequency | 50 Hz |
| Power | 165 W |
| Current | 0.76 / 0.44 A |
| Protection Class | IP65 |
| Insulation Class | F |
