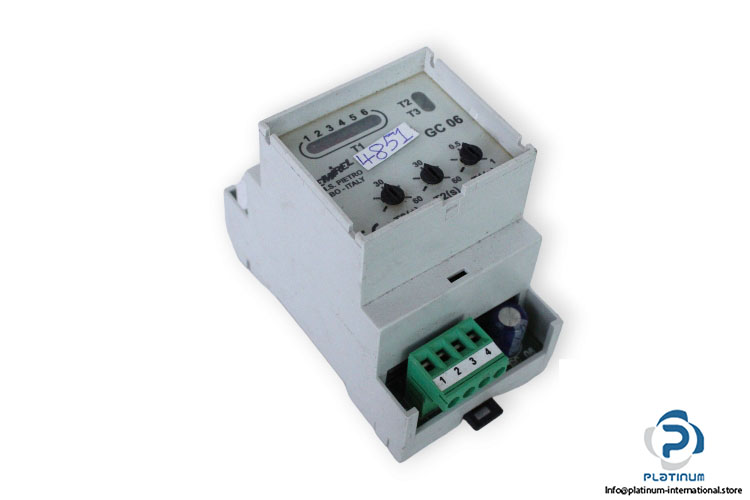

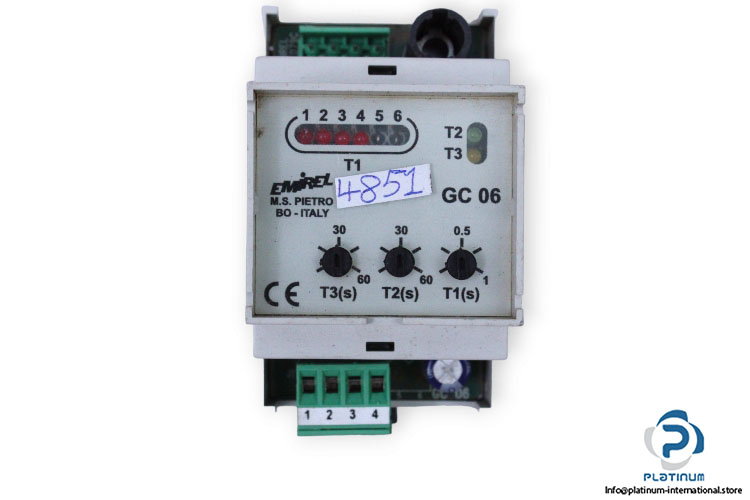

Emirel GC 06-4-CA Cyclical Impulse Generator
Manufacturer: EMIREL
Type: Cyclical Impulse Generator
Model: GC06-4-CA
Supply Voltage: 24 V AC
No. of Outputs: 4
Pulse period T1: 40 ms … 1 sec
Pulse period between two outputs T2 : 1…60 sec
Pause period between the end of one cycle and the beginning of the next T3: 1 … 60 sec
Dimensions: 53 x 90 x 75 mm
Operating Temperature: 0 … 60°C
