Emmecom SC601MGA Side Channel Compressor/Exhauster
SEITENKANAL-KOMPRESSOR/EXHAUSTER Emme Com SC601MGA Seitenkanal-Kompressor/Exhauster mit Gehäuse aus Druckguss-Aluminium, ölfreier Betrieb und geräuscharmer Leistung. Liefert bis zu +280 mbar Druck und -320 mbar Vakuum für anspruchsvolle Industrieumgebungen.
EMME COM SC601MGA SIDE CHANNEL COMPRESSOR/EXHAUSTER
The Emme Com SC601MGA is a high-performance side channel compressor and exhauster, engineered with full die-cast aluminum construction for superior durability and flexible industrial use. Its oil-free design ensures clean operation, while integrated silencers minimize operational noise. Ideal for demanding environments requiring both pressure and vacuum performance.
Manufacturer: Emme Com
Type: Side Channel Compressor/Exhauster
Model: SC601MGA

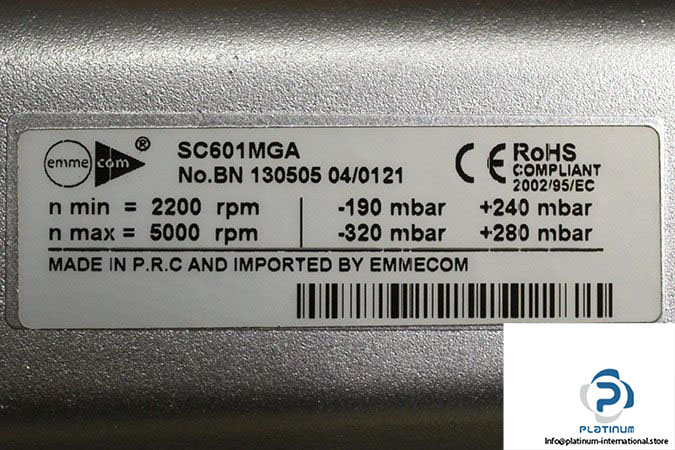

No. BN: 130505 04/0121
| Construction | Full die-cast aluminum for maximum sturdiness |
| Lubrication | Not required “ no contact between static and rotational parts |
| Noise Reduction | Equipped with dedicated silencers |
| Speed Max | 5000 rpm |
| Speed Min | 2200 rpm |
| Pressure Max | +280 mbar |
| Pressure Min | +240 mbar |
| Vacuum Max | -320 mbar |
| Vacuum Min | -190 mbar |
| Dimension (Cut Out) | 56 Ø mm |
| Shaft Diameter | 28 mm |
