Emmecom SC701MF5.5T Side Channel Blower
Neu
Auf Lager1 EinheitVersandbereit
1 999,99$
Seitenkanalgebläse Der EMMECOM SC701MF5.5T Seitenkanalgebläse bietet präzise Vakuum- und Druckregelung mit einer Nennleistung von 5,5 kW bei 50 Hz und 6,3 kW bei 60 Hz, ideal für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

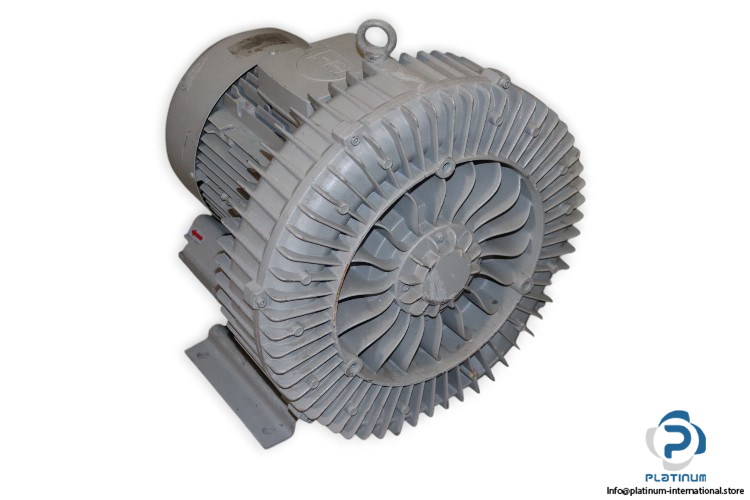

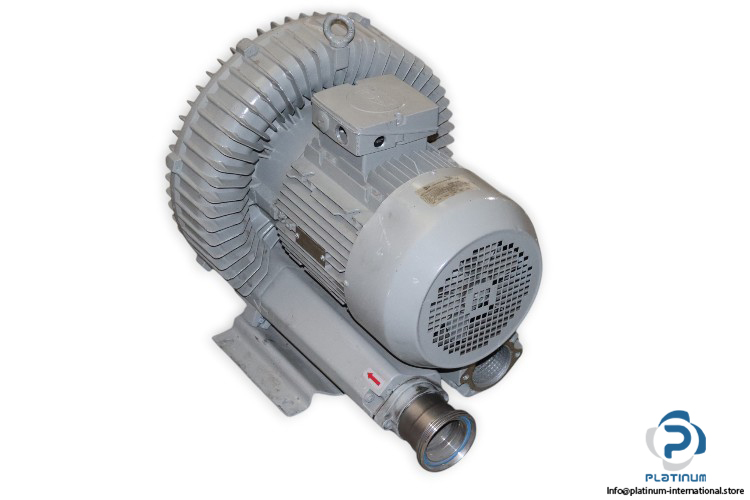

EMMECOM SC701MF5.5T SIDE CHANNEL BLOWER
The EMMECOM SC701MF5.5T Side Channel Blower is a high-performance solution designed for industrial applications requiring reliable vacuum and pressure management. With adjustable vacuum pressure and dual-frequency operation, it offers precision and durability in demanding environments.
Manufacturer: EMMECOM
Type: Side Channel Blower
Model: SC701MF5.5T

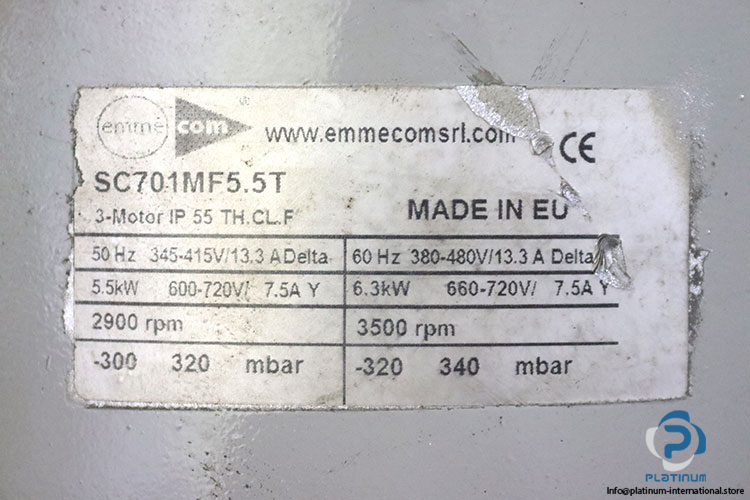

Technical Specifications
- Vacuum Pressure [mbar]:
- -300 / +320 at 50 Hz
- -320 / +340 at 60 Hz
- At Frequency 50 Hz:
- Supply Voltage [V]: 345 “ 415 Delta / 600 “ 720 Star
- Rated Power [kW]: 5.5
- Rated Current [A]: 13.3 / 7.5
- Rated Speed [rpm]: 2900
- At Frequency 60 Hz:
- Supply Voltage [V]: 380 “ 480 Delta / 660 “ 720 Star
- Rated Power [kW]: 6.3
- Rated Current [A]: 13.3 / 7.5
- Rated Speed [rpm]: 3500
- Protection Class [IP]: 55
- Insulation Class: F
