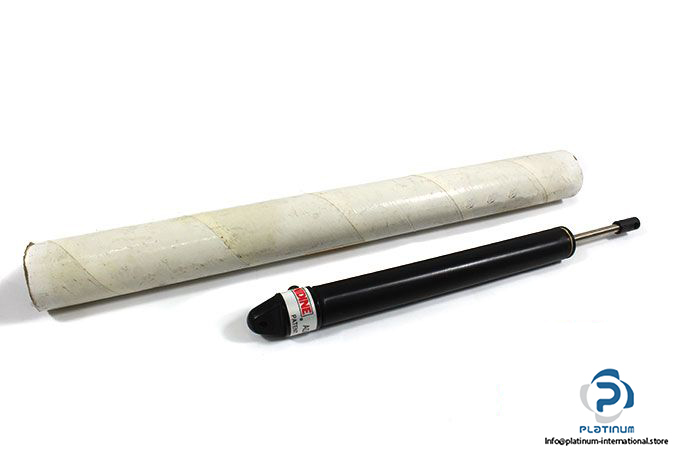

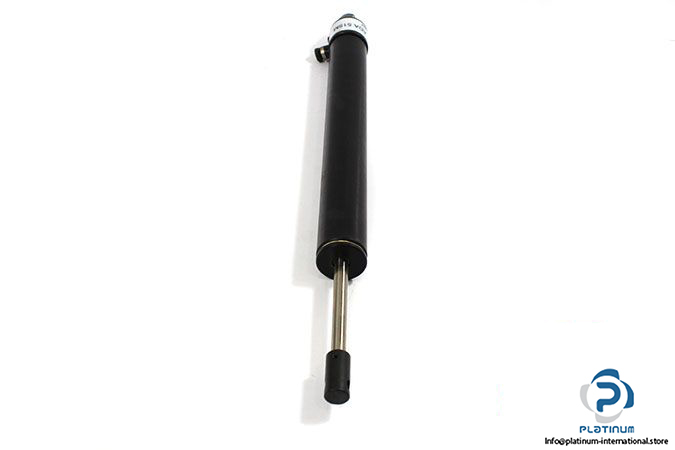

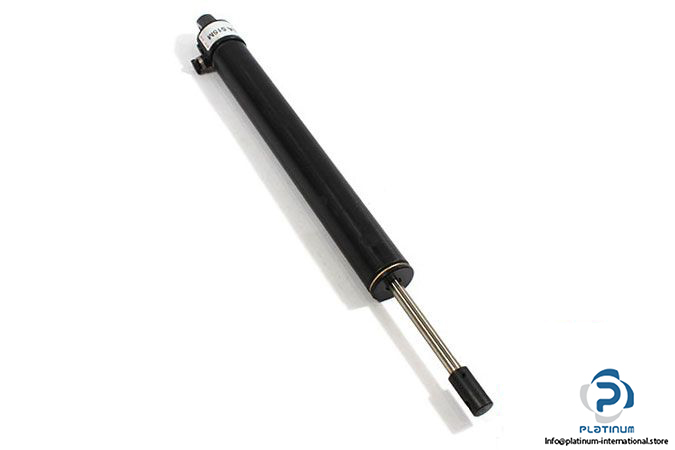

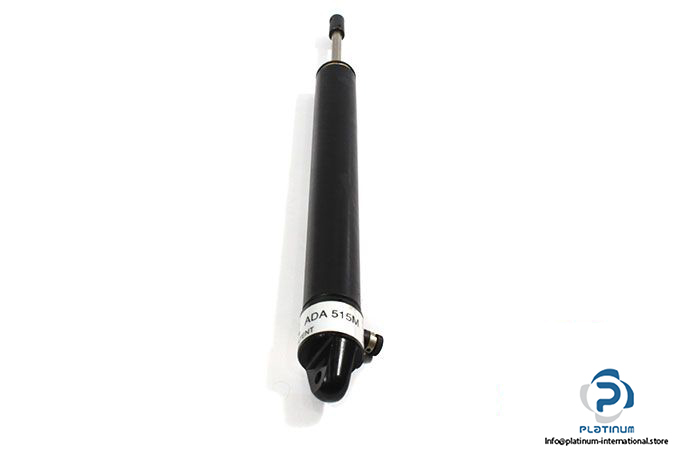

Enidine ADA 515M Shock Absorber

Manufacturer: ENIDINE

Type: SHOCK ABSORBER

Series: ADA

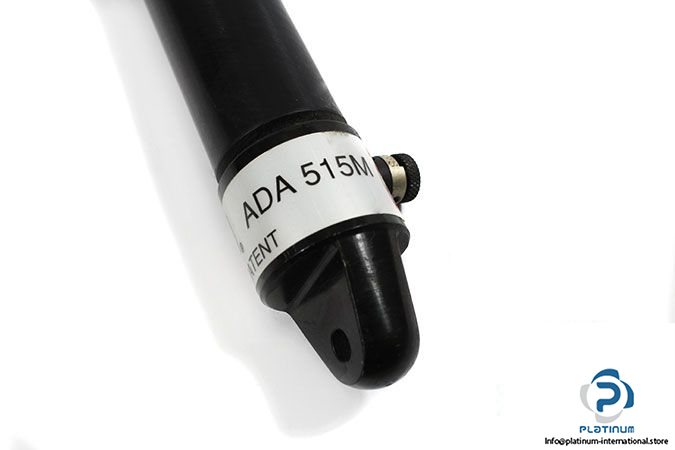

Model: ADA 515M

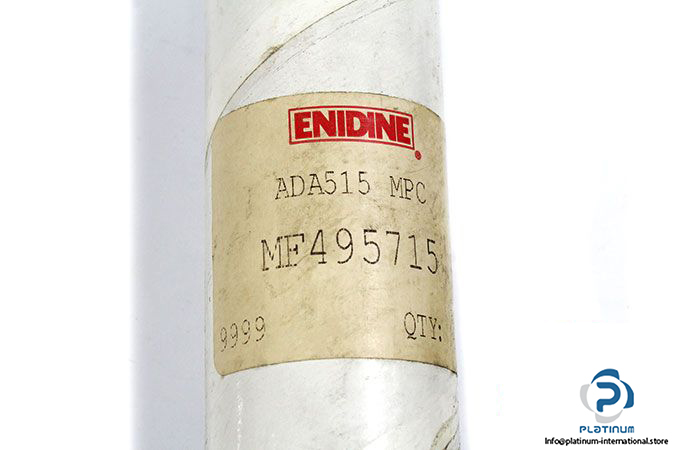

MRN: ADA 515 MPC

Application:

• Printing Presses
• Turnstiles

Tension Mode: Free Flow

Compression Mode: Adjustable

Velocity (V): 0,2 m/s

Max. Extension Force: 2000 N

Max. Compression Force: 1335 N

Max. ETC: 118,650 Nm/hr

Stroke Length: 150 mm

Bore Size: 16 mm

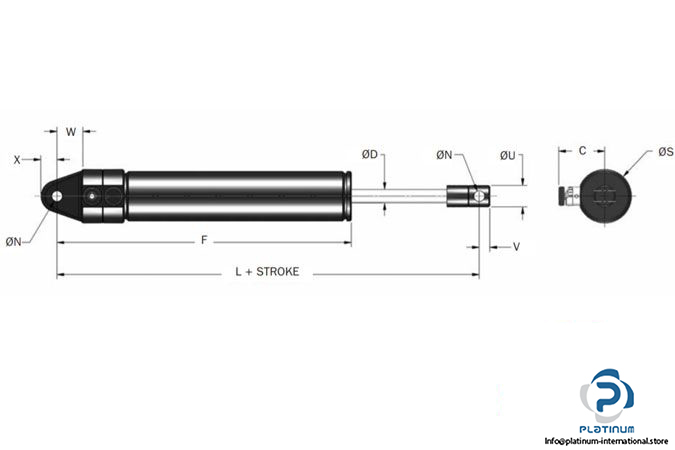

Rod Diameter ( D ): 8 mm

Length ( F ): 275 mm

Total length: 450 mm

Temperature Range: -10 ….. 80 ^°C

Weight: 0.42 kg
