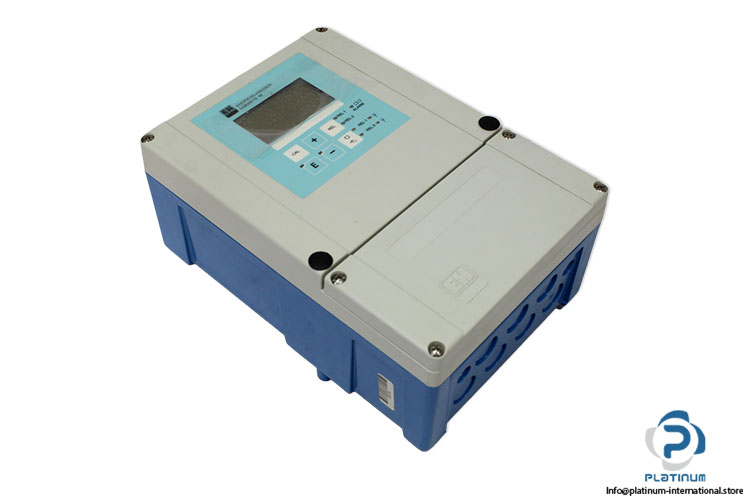

Endress + Hauser CLM253-CD8010 Conductivity Transmitter
Conductivity Transmitter Endress + Hauser CLM253-CD8010 conductivity transmitter with 4-wire operation, two-line display, and Profibus/HART communication for industrial water and process monitoring applications.
“Technical Information:

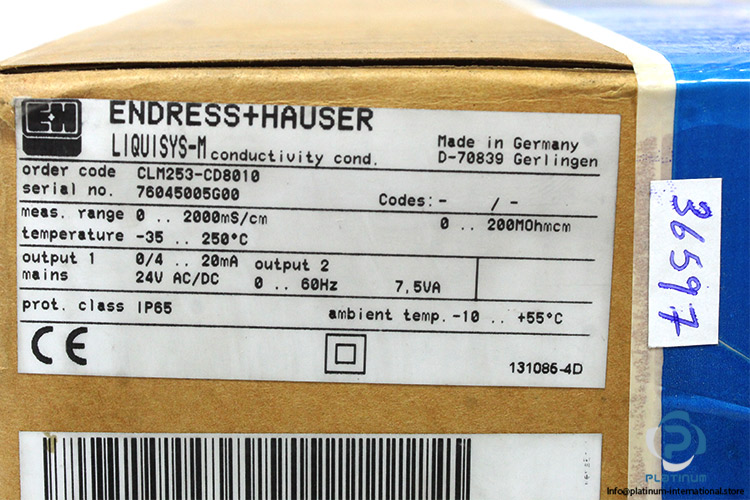

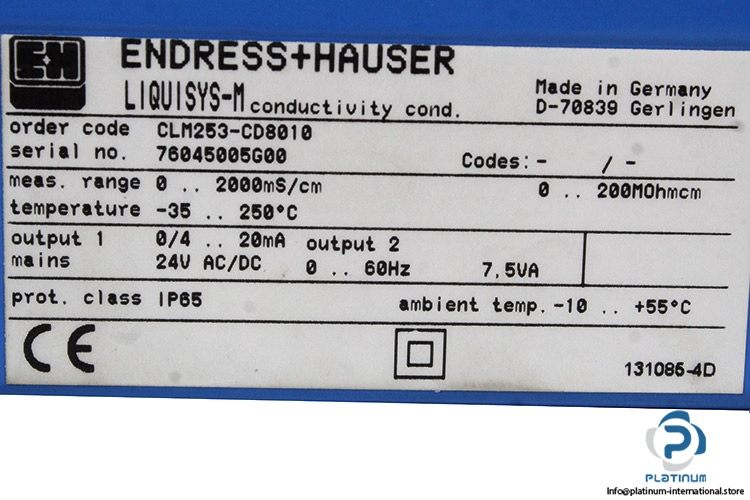

Manufacturer: Endress + Hauser
Type of Product: Conductivity transmitter

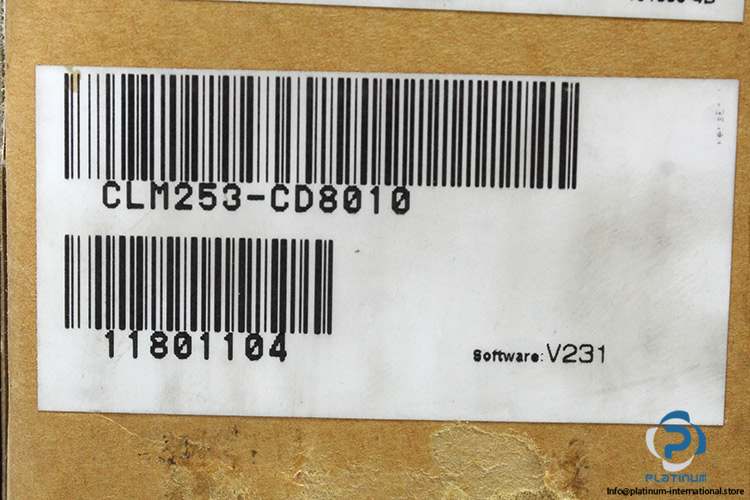

Model: CLM253-CD8010
SN.: 76045005G00

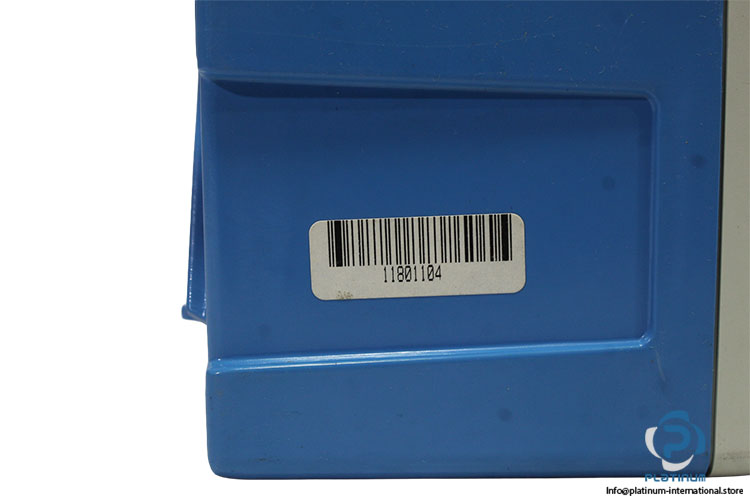

Code: 11801104/ 131086-4D
Range: LIQUISYS-M
Main Voltage: 24V AC/DC,60Hz,7,5VA
Measuring principle: Conductive
Application: Water, waste water, process

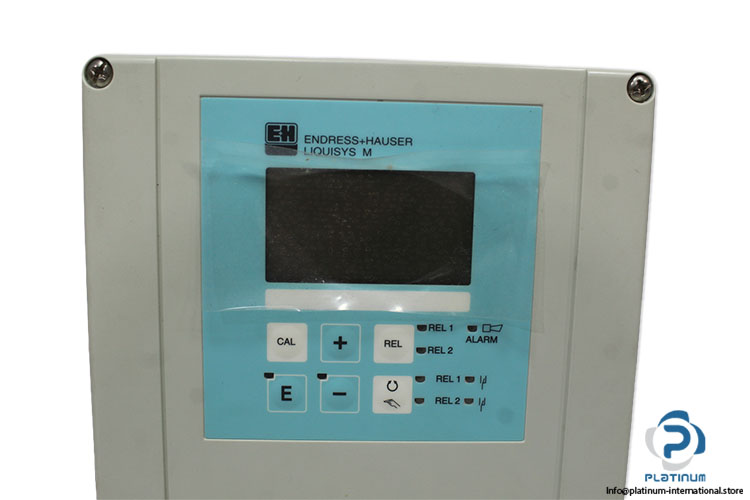

Characteristic: 4-wire transmitter with a two-line display
Design: Conductivity transmitter in a PC/ABS-field housing
Material: PC/ABS
Measuring Range: 0 .2000mS/cm
Temperature Range: -35 .. 250C
Dimension: 247x170x115 mm
Temperature sensor: Display and current output
Ingress protection: IP65
Input: One-channel transmitter
Ambient temp: – 10 ..+55?
prot. Class: IP65
Software: V231
Output / communication: 0/4-20mA, Hart, Profibus.
Certificates, declarations and approvals: CSA Gen. Purpose.
Stock Key: CON-003
Condition: New
Shelf No: 260503
SKU: 1099316
Weight: 2,44
