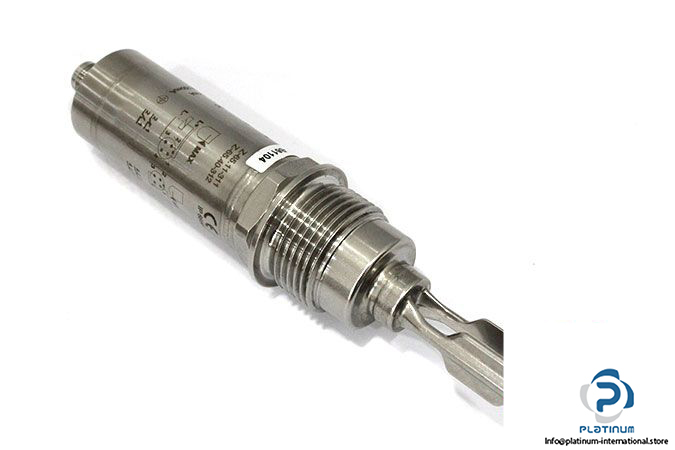

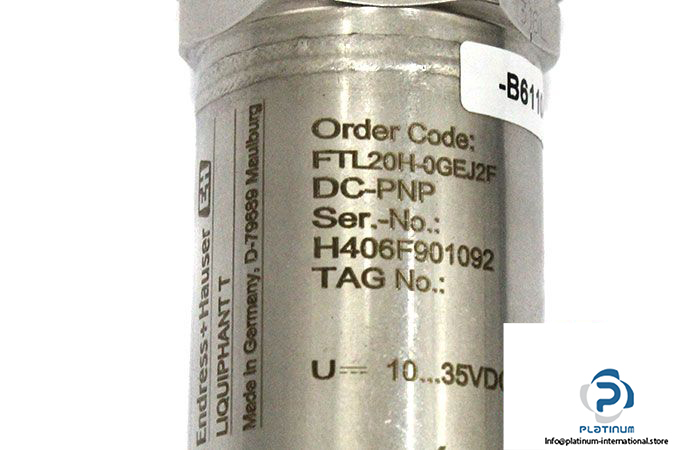

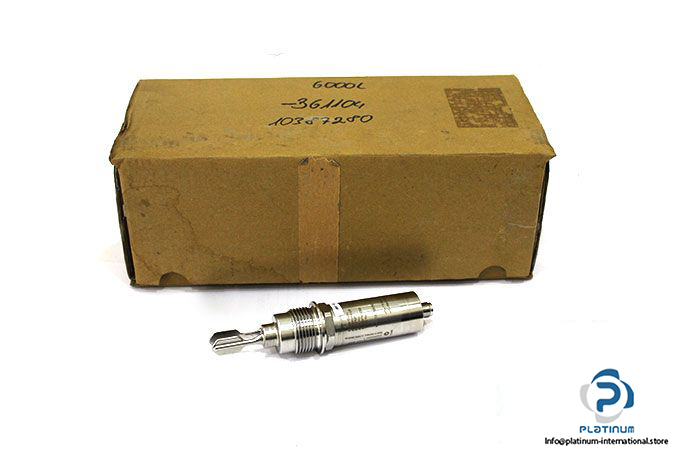

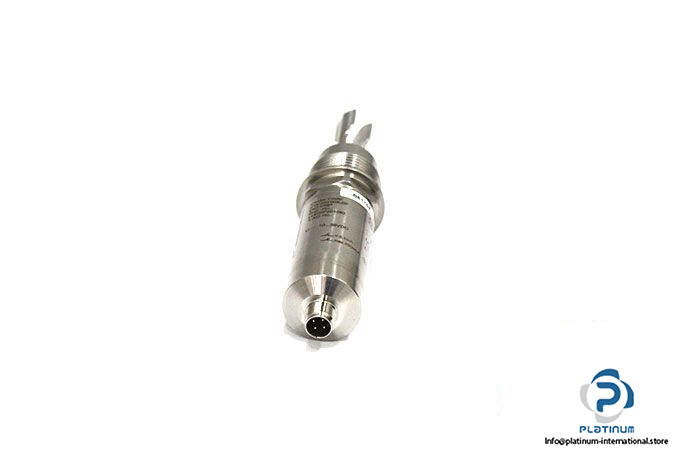

Endress Hauser FTL20H-0GEJ2F Level Limit Switch

Manufacturer: ENDRESS+HAUSER

Type: Level Limit Switch

Model: LIQUIPHANT T

Model: FTL20H-0GEJ2F



Supply voltage: 10 … 35 V DC

Fluid: liquids; water

Measured variable: Density

Sensing range: > 0.7 g/cm3

Switch output: 3-wire, PNP

Response time: 0.5 sec when covering, 1 sec. when becoming free

Cable connection: Plug M12

Operating temp.: up to 150 °C

Process connection: Thread ISO228 G 1

Sensor and housing material: stainless steel 316

Protection Class: IP66/67 plastic | IP66/68 metallic cable

Net Weight: 0.21 kg
