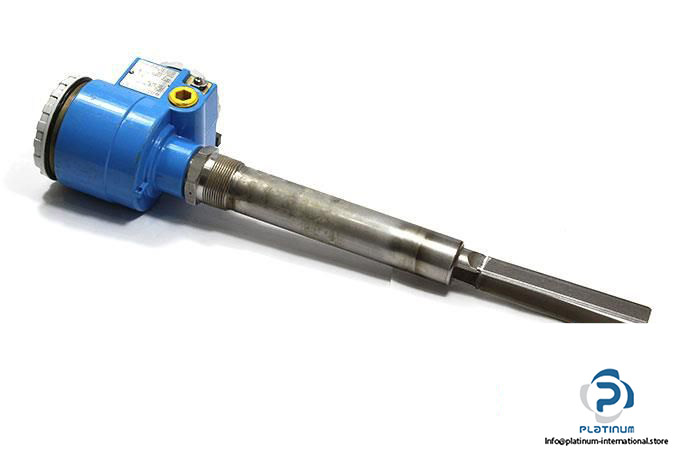

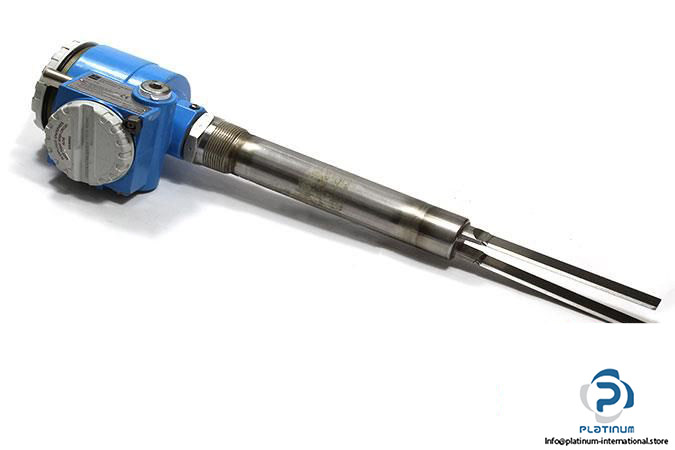

Endress Hauser FTM31D-H4KB1D Point Level Switch

Name: ENDRESS HAUSER FTM31D-H4KB1D POINT LEVEL SWITCH
SKU: 965281
Availability: LimitedAvailability








Auf Lager1 EinheitVersandbereit

SKU

965281

Kategorie

Vibrating / Tuning Fork Level Switch

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: ENDRESS HAUSER

Type: ROBUST POINT LEVEL SWITCH

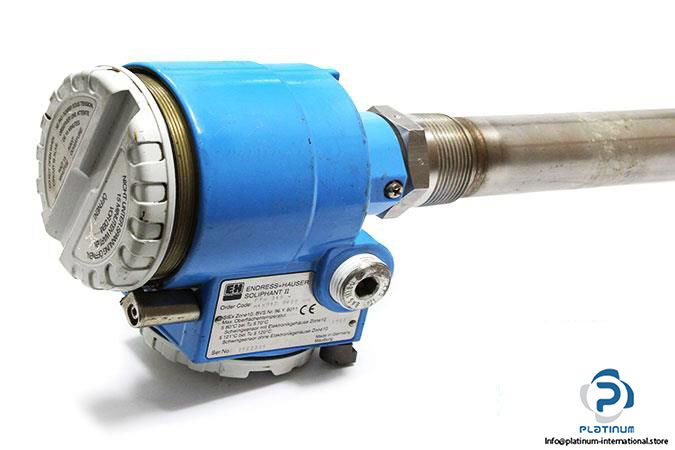

Family: SOLIPHANT II

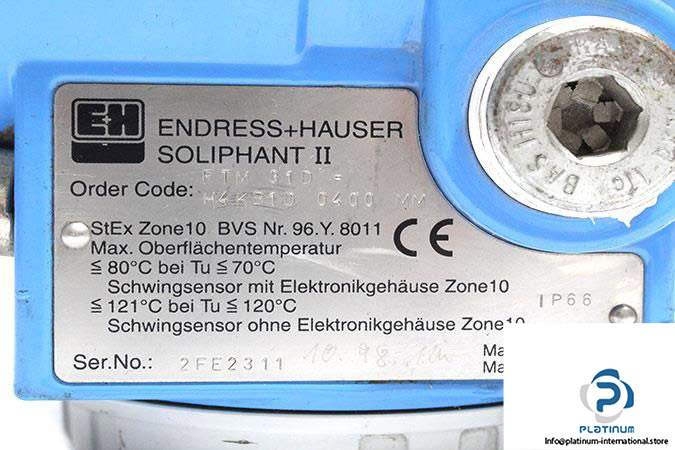

Order Code: FTM 31 -DH4KB1D

Serial No.: 2FE2311

Sensor Version: COMPACT

Approval: ATEX II 1/3D, ATEX II 2G EEx de IIC T6

Probe Length: 400 mm

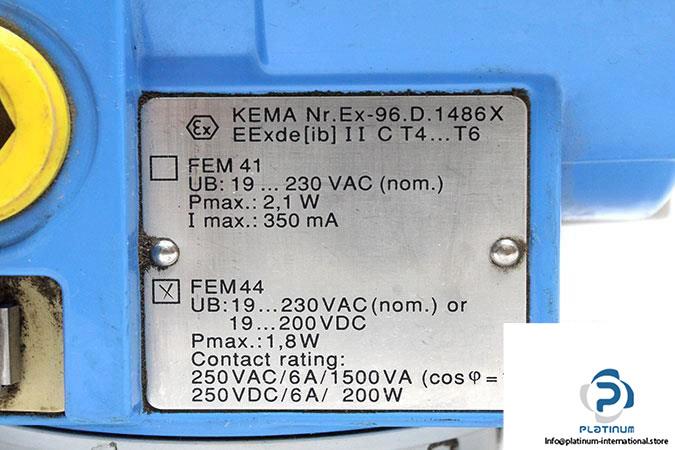

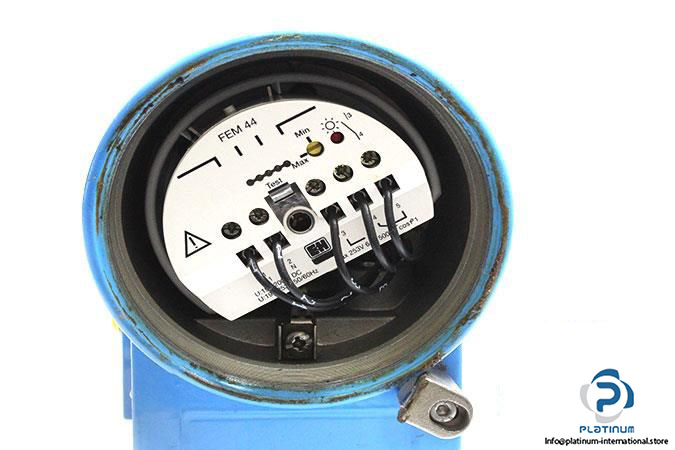

Electronic Insert: FEM44

Electronics; Output: Relay SPDT 19 … 253 VAC / 200 VDC

Maximum Working Pressure: 10 bar

Power: max. 1.8 W

Contact Rating: 250 VAC / 6A/1500 VA

250 VDC / 6A/200 W

Process Connection: Thread ANSI NPT1-1/2, 304

Cable Entry: Thread NPT3/4

Protection Class: IP66

Process Temperature: -40 … +120 °C

Ambient Temperature: -50 … +70 °C

Weight: 3.2 kg

Condition: Used
