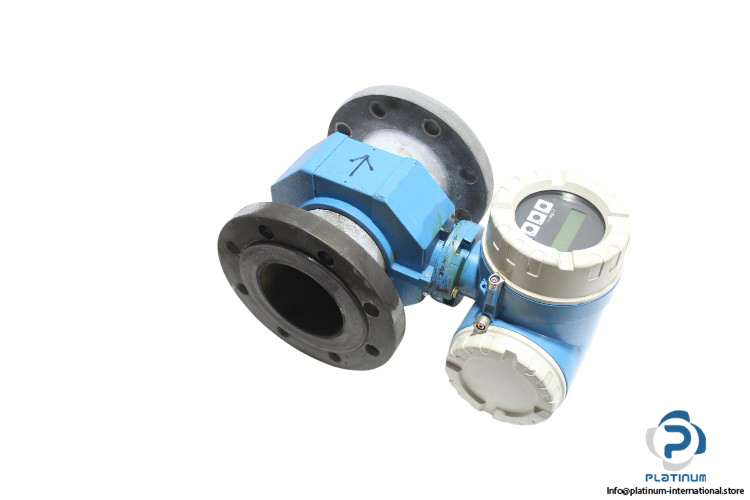

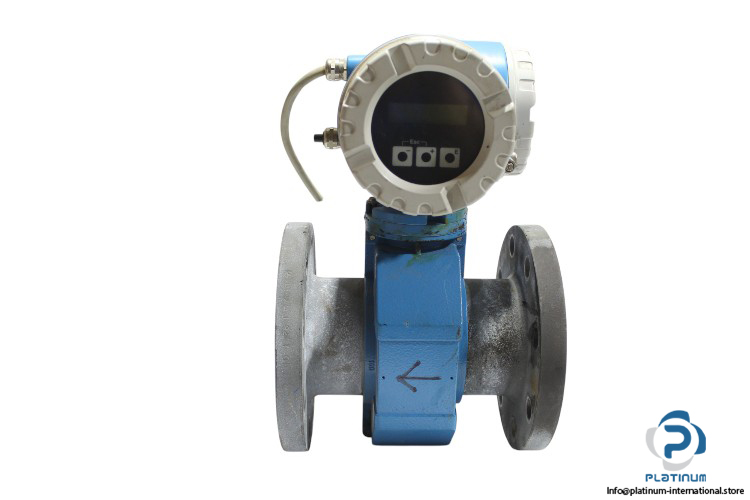

Endress+Hauser 50W1H-UC0A1AA0ABAW Electromagnetic Flow Meter
Electromagnetic Flow Meter

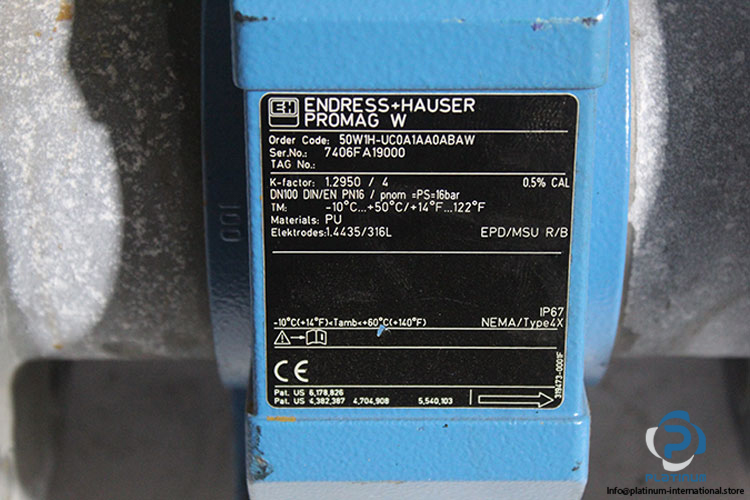

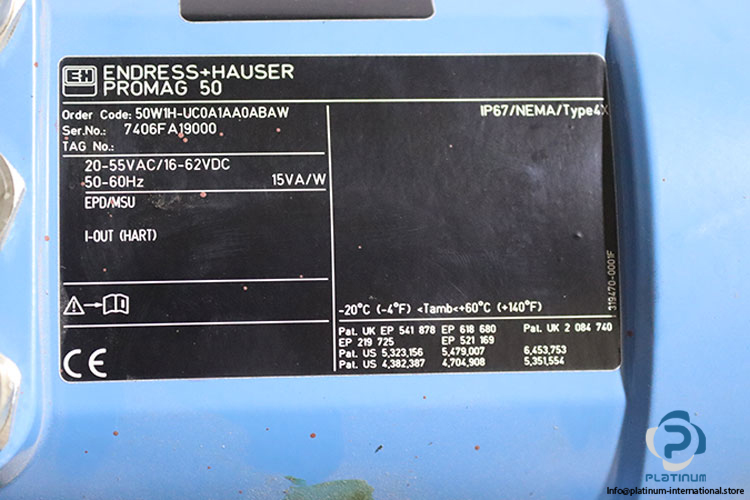

Endress+Hauser 50W1H-UC0A1AA0ABAW Electromagnetic Flow Meter offers precise flow measurement with a wide range of 145 to 4700 dm³/min. Features include Empty Pipe Detection (EPD), IP67 protection, and a temperature range of -20 to +60 „ƒ.Manufacturer: Endress+Hauser Type: Electromagnetic Flow Meter Model: 50W1H-UC0A1AA0ABAW Serial No.: 7406F A19000 Transmitter Name: PROMAG 50 Power supply: 20 to 55 V AC/ 16 to 62 V DC Frequency: 50 to 60Hz Power Consumption: 15 VA/W Additional information: EPD/MSU, with Empty Pipe Detection Outputs available: I-OUT (HART), with current output (HART) Temperature range: – 20 to +60 degree of Celsius Protection: IP67/NEMA/Type4X Recommended flow: 145 to 4700 dm³/min Sensor Name: PROMAG W Calibration factor with zero point: 1.2950 / 4 Nominal diameter / Pressure rating: DN 100 / 16 ( PS, 16bar) Fluid temperature range: – 10 to + 50 degree of Celsius Materials: lining/measuring electrodes: PU/ 1.4435/316L Calibration tolerance: 0.5% CAL Flow direction: left to right Permitted ambient temperature range: – 10 to + 60 degree of Celsius
