Endress+Hauser 63MT50-S2A01A00B2F Flow Meter
1 399,99$
Massendurchflussmesser Endress+Hauser PROMASS 63M mit 50 mm Nennweite, IP67-Schutz, HART-Ausgang und Messbereich bis zu 70.000 kg/h. Ideal für hochpräzise industrielle Durchflussmessungen in anspruchsvollen Prozessumgebungen.

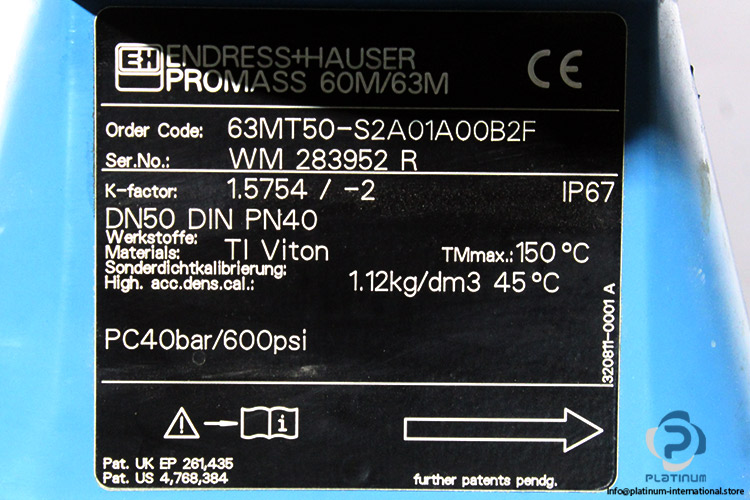

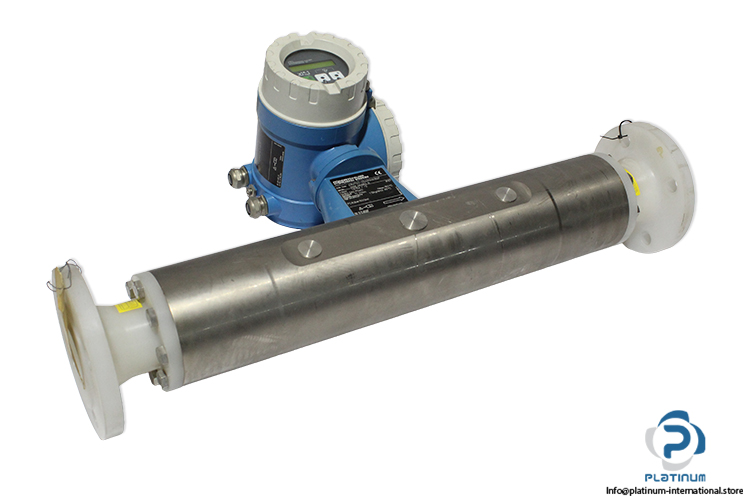

Endress+Hauser PROMASS 63M 63MT50 S2A01A00B2F Mass Flow Meter
The Endress+Hauser PROMASS 63M mass flow measuring system is designed for precise and reliable mass flow measurement in demanding industrial processes. Engineered for high accuracy and stability, it delivers dependable performance across a wide measuring range.
Manufacturer: Endress+Hauser
Type: Mass Flow Measuring System (Mass Flow Meter)
Model: 63MT50 S2A01A00B2F
Series: PROMASS 63M
Serial Number: WM 283952 R
Recommended for high-accuracy mass flow measurement in chemical processing, oil & gas, food production, and industrial automation systems.

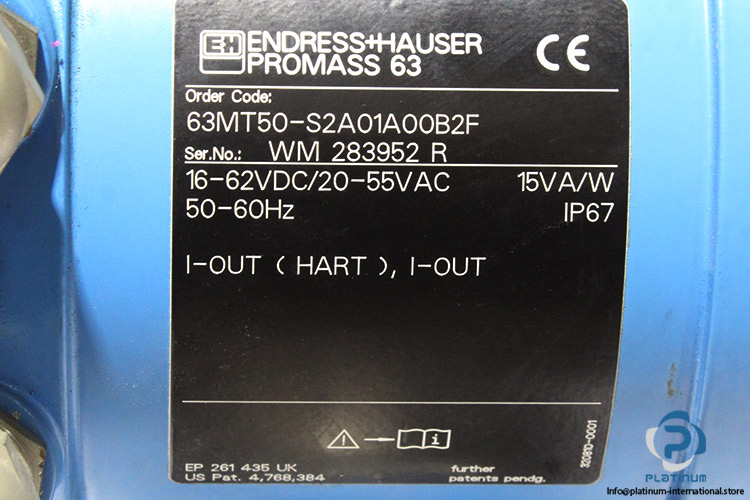

| Supply Voltage (DC) | 16“62 V DC |
| Supply Voltage (AC) | 20“55 V AC |
| Frequency | 50“60 Hz |
| Power Consumption | 15 VA / W |
| Outputs | I-OUT (4“20 mA), I-OUT (HART) |
| Measuring Range | 0 to 70,000 kg/h (Mass Flow) |
| Nominal Diameter | 50 mm |
| Process Pressure Rating | 40 bar / 600 psi |
| Maximum Temperature (Tmax) | 150°C |
| Density Calibration (High Accuracy) | 1.12 kg/dm³ at 45°C |
| K-Factor | 1.5754 / -2 |
| Protection Class | IP67 |
