Endress+Hauser PMD75-8FMA2/101 Differential Pressure Transmitter
Neu
Auf Lager2 EinheitenVersandbereit
Differential Pressure Transmitter
The ENDRESS+HAUSER PMD75-8FMA2/101 Deltabar S differential pressure transmitter delivers precise measurement up to 160 bar with 4 to 20 mA HART output, IP67 protection, and stainless steel construction for industrial process control.160barControlDeltabardifferentialEndressEndress+HauserHartHauserIndustrialInstrumentationPMD75PMD75-8FMA2/101PressureProcesssSensorSeriesstainlessSteelTransmittTransmitter
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

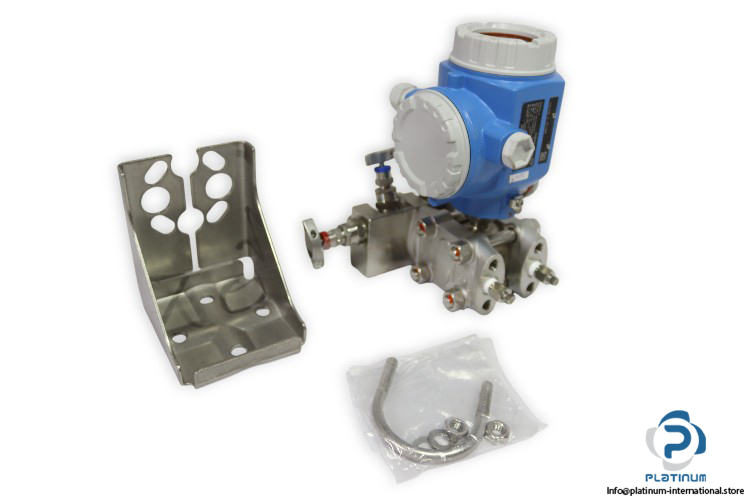

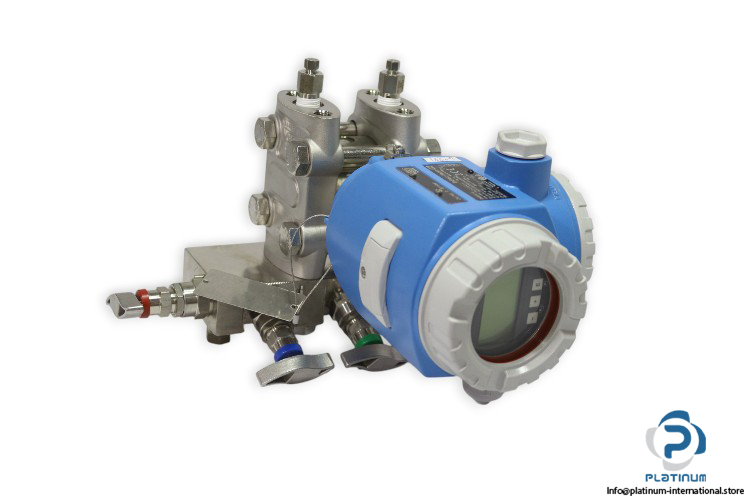

ENDRESS+HAUSER PMD75-8FMA2/101 Differential Pressure Transmitter
The ENDRESS+HAUSER PMD75-8FMA2/101 Differential Pressure Transmitter from the Deltabar S series is designed for highly accurate pressure and level measurement in industrial process applications. It provides reliable operation, high pressure resistance, and compatibility with HART communication systems for easy integration into control environments.

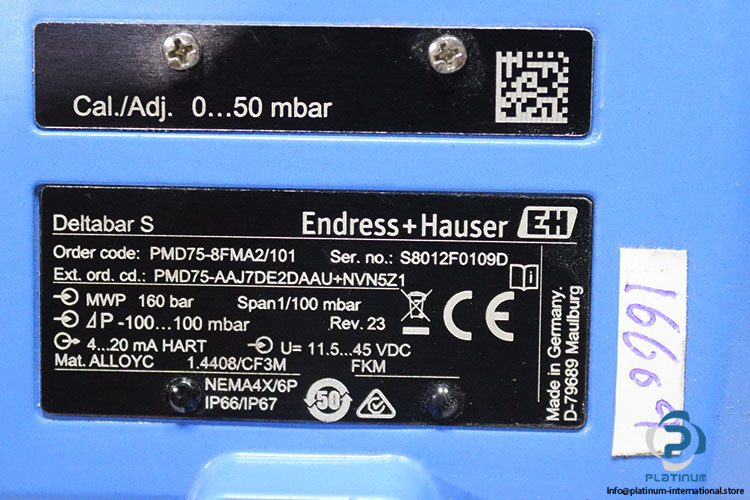

Manufacturer: ENDRESS+HAUSER
Type: Differential Pressure Transmitter
Model: PMD75-8FMA2/101
Series: Deltabar S
Extended Order Code: PMD75-AAJ7DE2DAAU+NVN5Z1
Serial Number: S8012F0109D
| Calibration Range | 0 to 50 mbar |
| Span | 1 to 100 mbar |
| Differential Pressure Range | minus 100 to 100 mbar |
| Maximum Working Pressure | 160 bar |
| Supply Voltage | 11.5 to 45 V DC |
| Output Signal | 4 to 20 mA HART |

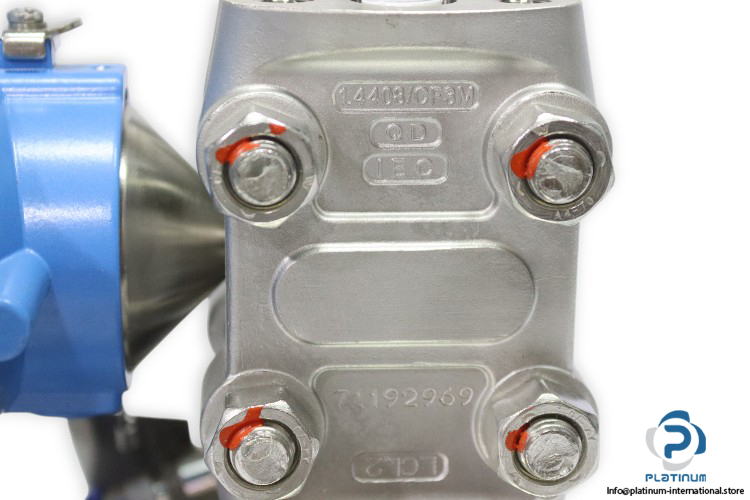

| Material | AlloyC / 1.4408 (CF3M stainless steel) |
| O-Ring Material | FKM |
| Protection | NEMA 4X / IP66 / IP67 |
| Revision | Rev 23 |

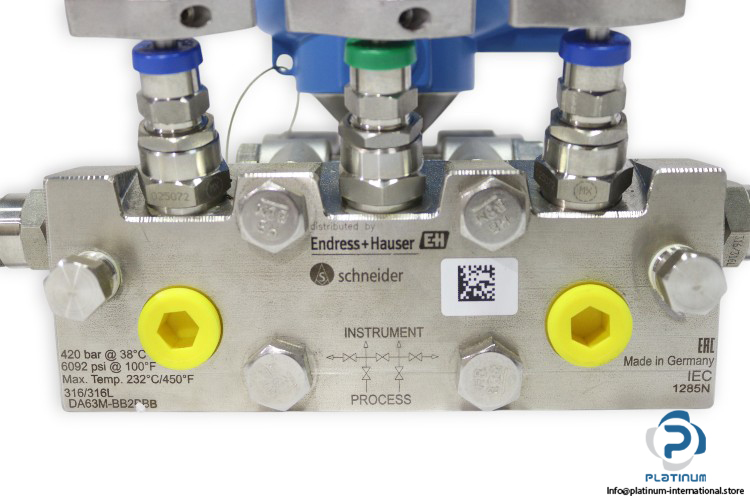

| Attached With | Manifold Block (Distributed by Endress+Hauser / Schneider) |
| Part Code | DA63M-BB2*BB |
| Manifold Material | 316 / 316L stainless steel |

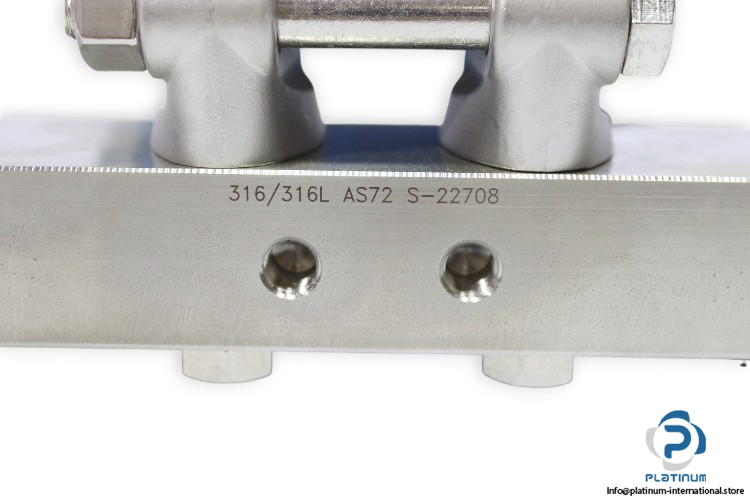

| Manifold Markings | 316 / 316L AS72 S-22708 |
| Pressure Rating | 420 bar at 38 degree Celsius |
| Maximum Temperature | 232 degree Celsius |
| Standards | IEC 1285N |
| Diagram | 5 valve manifold |

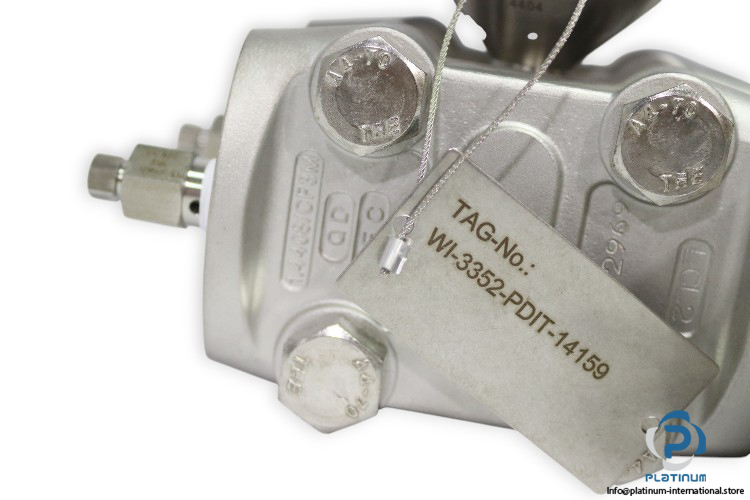

| Tag Plate | Tag No. WI-3352-PDIT-14159 |

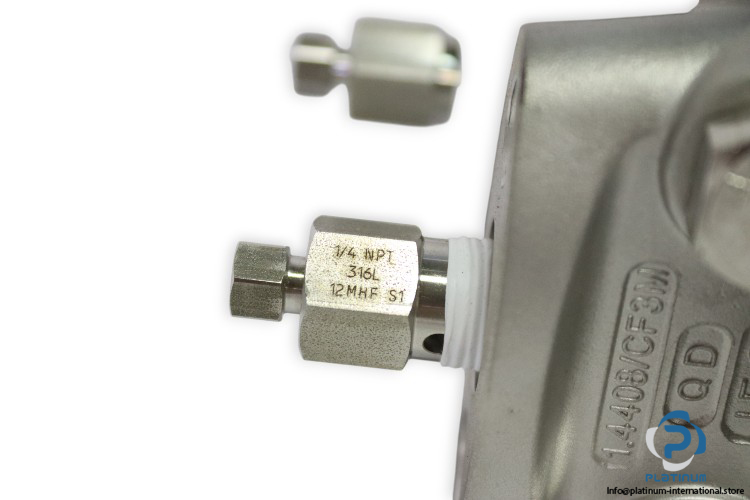

| Fitting and Connector Marking | 1/4 inch NPT 316L 12MHF S1 |

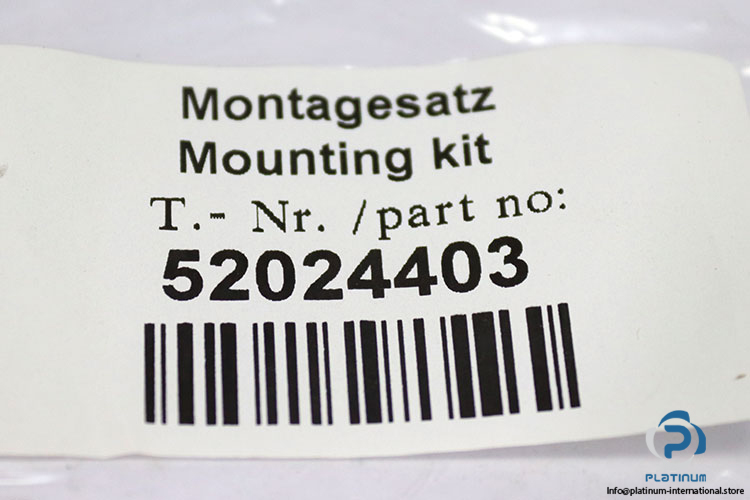

| Attached With | Mounting Kit |
| Part No. | 52024403 |
| Description | Mounting Kit |
