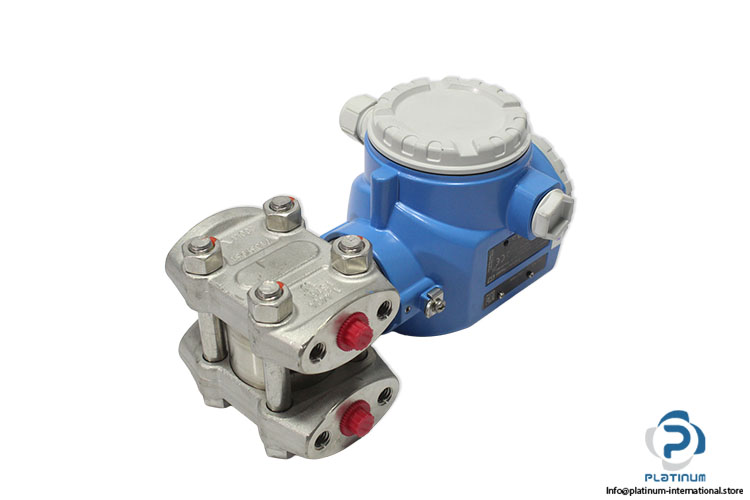

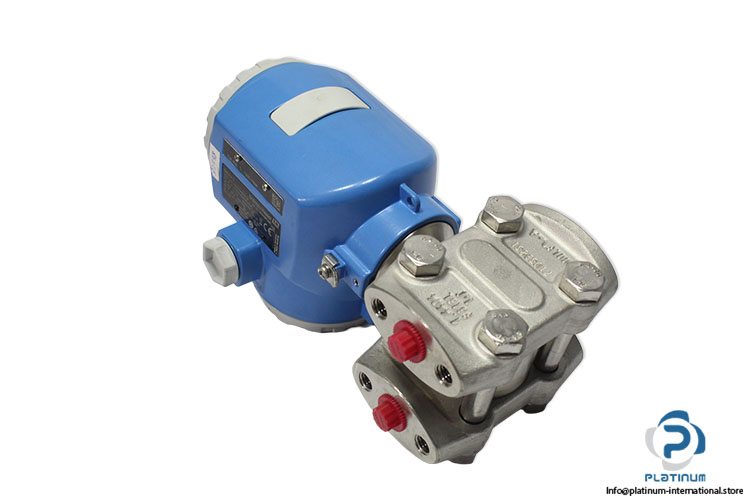

Endress+Hauser PMD75-ACJ7HE12AAA Pressure transmitter
Neu
Auf Lager1 EinheitVersandbereit
555,55$
ENDRESS+HAUSER Pressure Transmitters The ENDRESS+HAUSER Deltabar S PMD75 and Deltapilot S DB52 are advanced industrial pressure transmitters designed for differential pressure measurement and hydrostatic level monitoring. Featuring HART communication, wide measuring ranges, corrosion-resistant materials, and international certifications for reliable process automation.
Series:
Deltabar S / Deltapilot S
Output Signal:
4 To 20 mA HART
Maximum Working Pressure:
Up To 160 bar
Protection:
NEMA 4X / IP66 / IP67
Communication:
HART, PROFIBUS PA, FOUNDATION Fieldbus
Approvals:
ATEX, FM, CSA, IEC Ex, EAC, UK Ex
0.24-20AccuracyAlloyANDApplicationsC276ConstructionDB52-AM21BB11EG20deliversDeltapilotdemandingEndress+HauserforHartHydrostaticIndustrialIP66LevelmAMeasurementOutputPrecisePressureProcessProtectionstheTransmitterWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

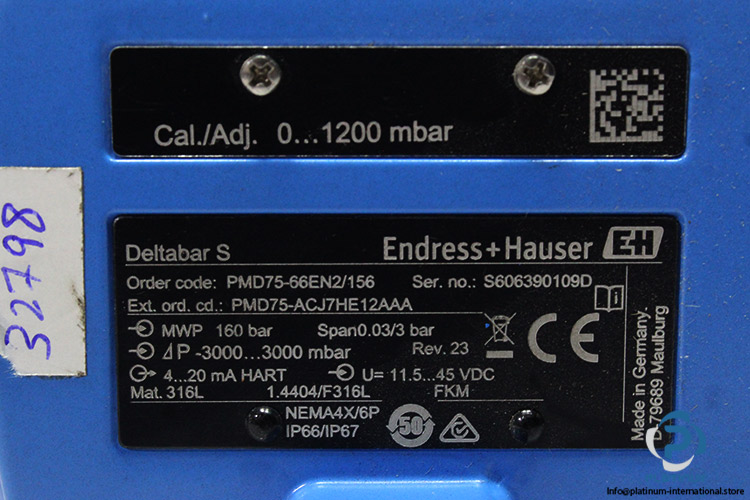

| Series | Deltabar S |
| Order Code | PMD75-66EN2/156 |
| Extended Order Code | PMD75-ACJ7HE12AAA |
| Serial Number | S606390109D |

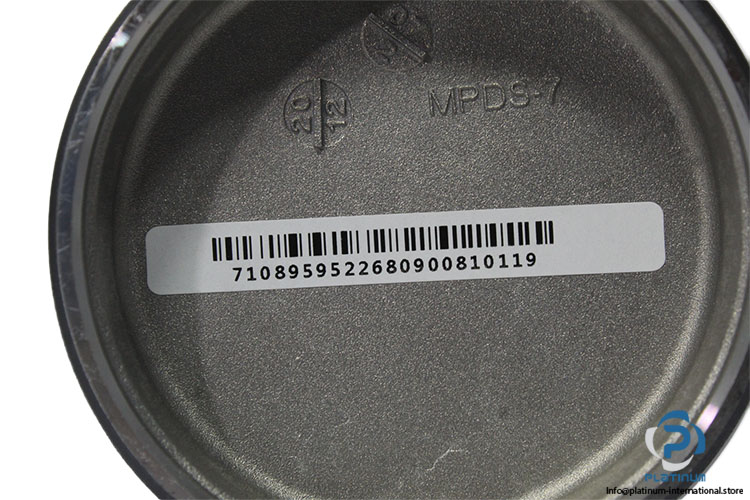

| Ref No | 7108959522680900810119 |
| Code | MPDS-7 |
| Calibration Range | 0 ... 1200 mbar |
| Span | 0.03/3 bar |
| Differential Pressure Range | minus 3000 to 3000 mbar |
| Maximum Working Pressure | 160 bar |
| Supply Voltage | 11.5 to 45 V DC |
| Output Signal | 4 to 20 mA HART |
| Material | 316L, 1.4404/F316L |
| O-Ring Material | FKM |
| Protection | NEMA 4X / IP66 / IP67 |
| Revision | Rev 23 |

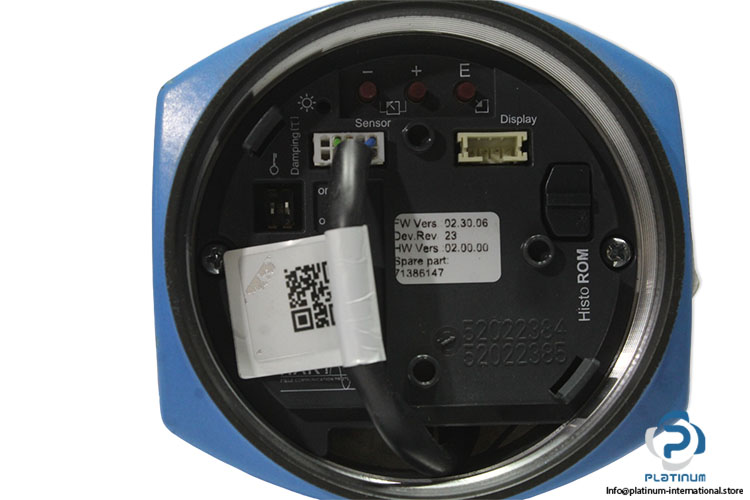

| FW Vers | 02.30.06 |
| HW Vers | 02.00.00 |
| Spare part | 71386147 |
| Process temperature | -40°C...85°C |
| Ambient temperature | -50°C...85°C |
| Measuring cell | 10 mbar...250 bar |
| Process connection | 1/4-18NPT/RC1/4 |
| Communication | 4...20 mA HART,PROFIBUS PA,FOUNDATION Fieldbus |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC, UK Ex |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099042 |
| Weight | 4,85 |
