Endress+Hauser RMA421-A21A4A Process Transmitter

Name: ENDRESS+HAUSER RMA421-A21A4A PROCESS TRANSMITTER
SKU: 1083145
Availability: LimitedAvailability

endress-hauser-rma421-a21a4a-process-transmitter(used)

endress-hauser-rma421-a21a4a-process-transmitter(used)-1

endress-hauser-rma421-a21a4a-process-transmitter(used)-2

endress-hauser-rma421-a21a4a-process-transmitter(used)-3

Gebraucht

Auf Lager1 EinheitVersandbereit

Process Transmitter

Endress+Hauser RMA421 multi-signal process transmitter with LCD display, DIN-rail housing, relay and analog outputs, and flexible DC/AC power supply.

Hersteller

ENDRESS+ HAUSER

SKU

1083145

Kategorie

Safety Relays

Zustand

Gebraucht

Analog Control DIN Display Endress+Hauser Industrial Input LCD Mountable Multi-Signal Output outputs Process rail Relay RMA421 Transmitter Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

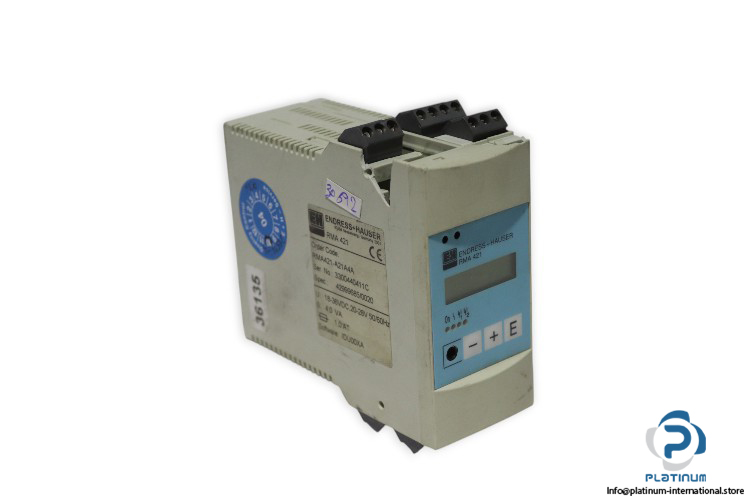

Endress+Hauser RMA421 Process Transmitter

The Endress+Hauser RMA421 is a reliable process transmitter with integrated control unit, engineered to handle multi-signal inputs and provide accurate monitoring in industrial applications. Its compact DIN-rail housing with LCD display makes it easy to operate and integrate into control systems.

Manufacturer: Endress+Hauser

Type: Process transmitter with control unit

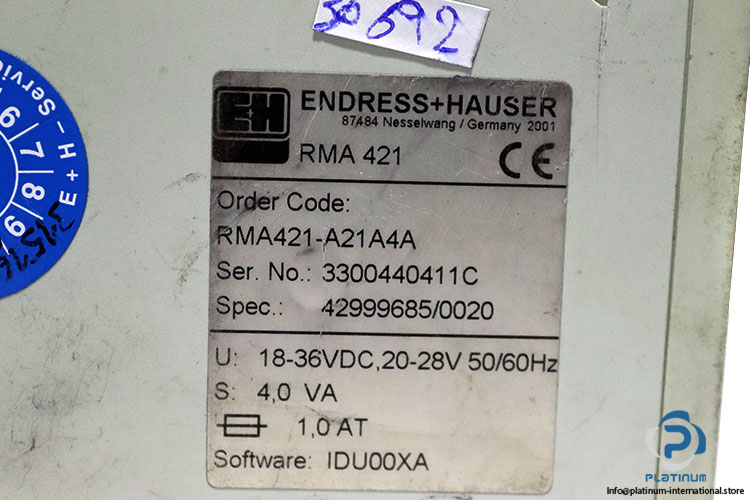

Order Code: RMA421-A21A4A

Model: RMA421

Serial No.: 3300440411C

Spec No.: 42999685/0020

Series: RMA42

Input	RTD, mV, TC, mA, V (multi-signal input)
Outputs	2 Relay outputs (NO/NC), 1 Analog output (mV/mA)
Power Supply	18“36 VDC or 20“28 V AC
Frequency	50/60 Hz
Power Consumption	4.0 VA
Fuse	1.0 AT
Software	IDU00XA

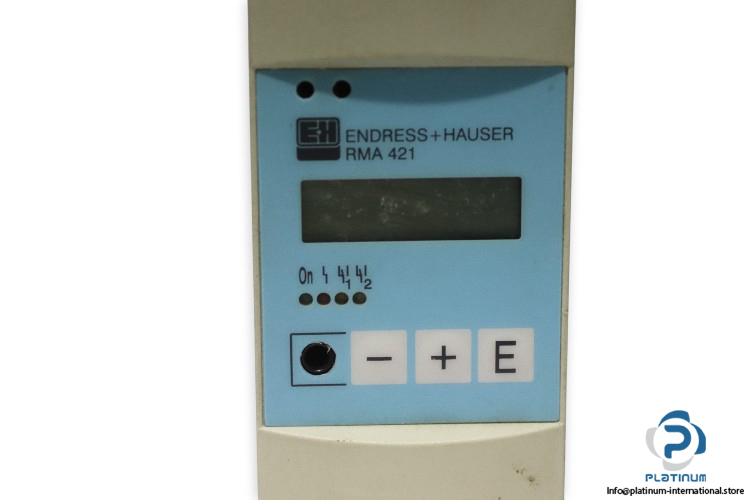

Housing	DIN-rail mountable, LCD display with control buttons
DIN Rail Housing	45 mm wide, 35 mm top hat
Protection Class	IP20

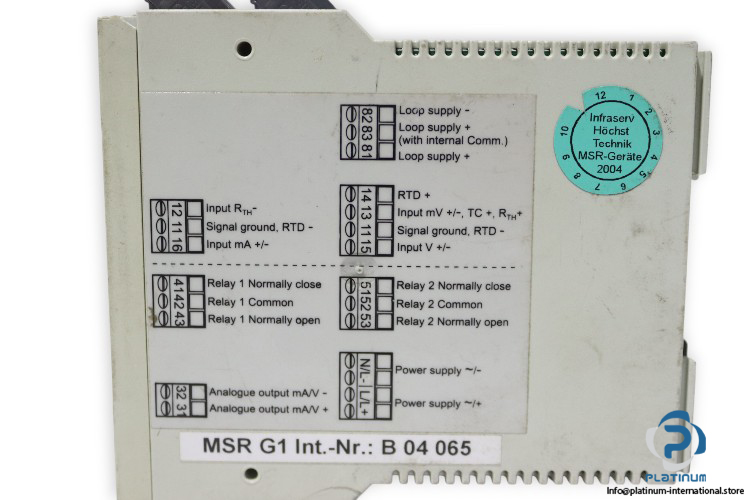

Connection	Plug-on screw terminals
Dimensions	115 x 45 x 118 mm
