Endress+Hauser Soliphant II FTM 30-A8DA1 Level Limit Switch
Niveauschalter Endress+Hauser SOLIPHANT II FTM 30-A8DA1 ist ein robuster Endschalter für Silos mit feinkörnigen Feststoffen. Er enthält den elektronischen Einsatz FEM32 und unterstützt raue Bedingungen mit IP66-Schutz sowie einem weiten Druck- und Temperaturbereich.

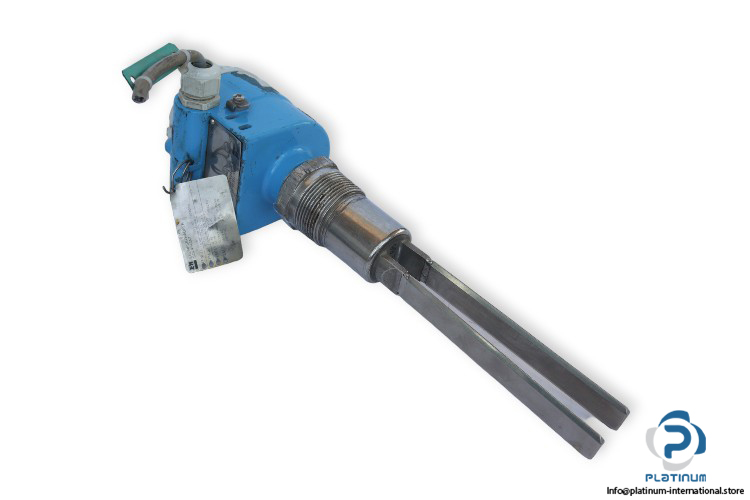

Endress+Hauser SOLIPHANT II FTM 30-A8DA1 Level Limit Switch with FEM32 Insert
The Endress+Hauser SOLIPHANT II FTM 30-A8DA1 is a rugged level limit switch designed for use in silos containing powdered or fine-grained solids. Ideal for materials with very low bulk densities, it operates efficiently in demanding applications including food processing and dust explosion areas. The unit comes equipped with the FEM32 electronic insert for reliable switching performance.
Manufacturer: ENDRESS+HAUSER
Type: Level Limit Switch
Model: SOLIPHANT II FTM 30-A8DA1
Attachment:

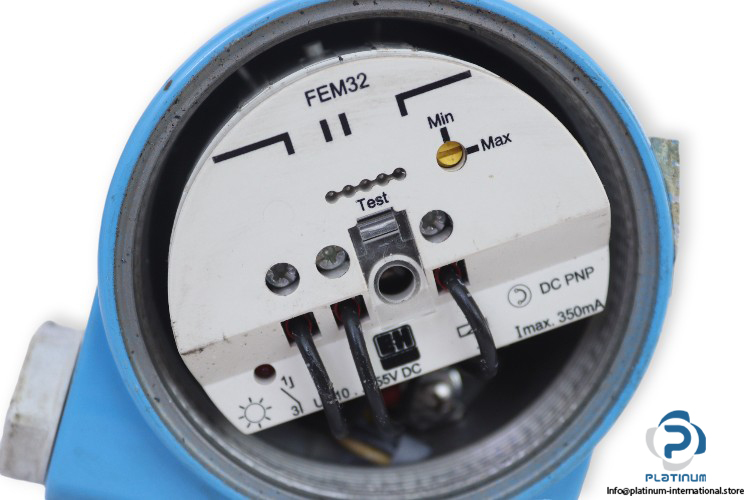

ENDRESS+HAUSER FEM32 ELECTRONIC INSERT
| Series | FTM 30 |
| Description | Rugged limit switch for silos containing powdered or fine-grained solids, including those with very low bulk densities. Can be used in dust explosion areas and food stuffs. |
| Process Pressure | 1 / 16 bar |
| Material | Aluminium |
| Protection Class | IP66 |
| Sensor Fork Length | 230 mm |
| Ambient Temperature | -40 / 70 °C |
| Length / Diameter | 361 / 86 mm |
| Rated Voltage | 10 / 55 V DC |
| Current Consumption Max. | 350 mA |
| Contact | PNP |
