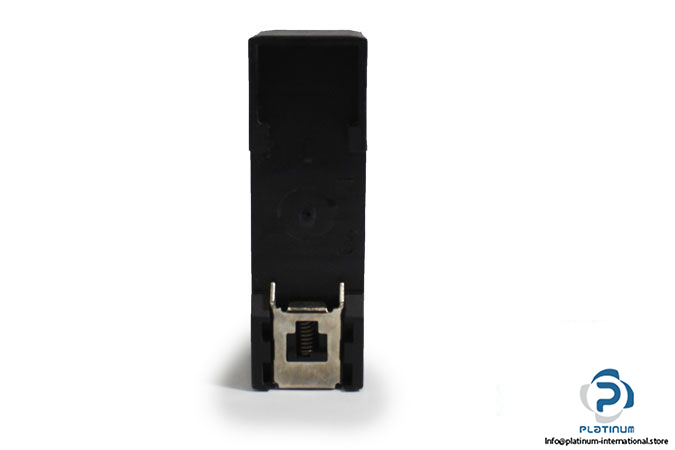

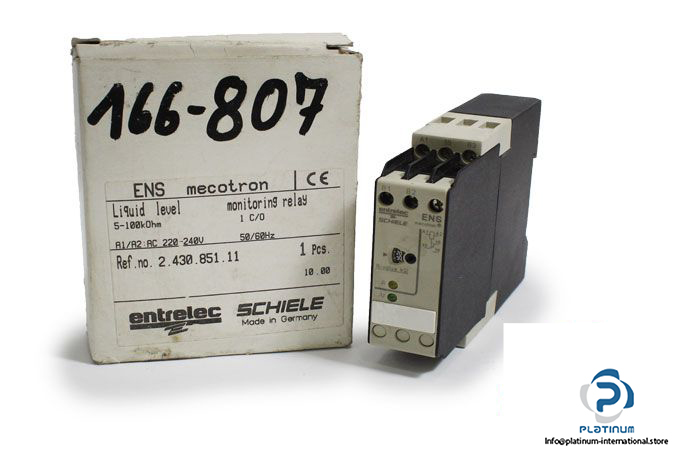

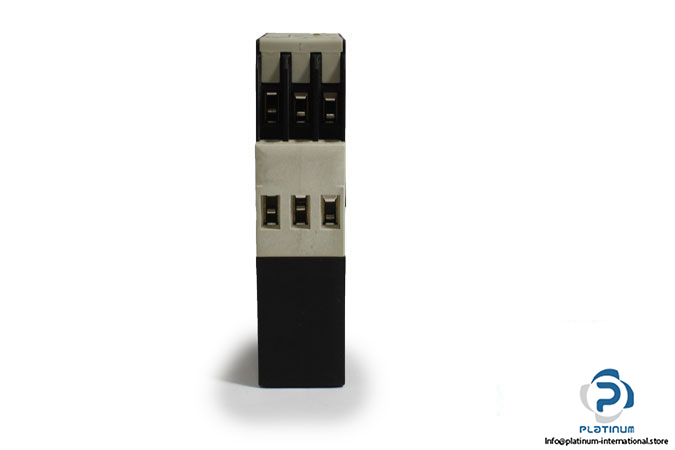

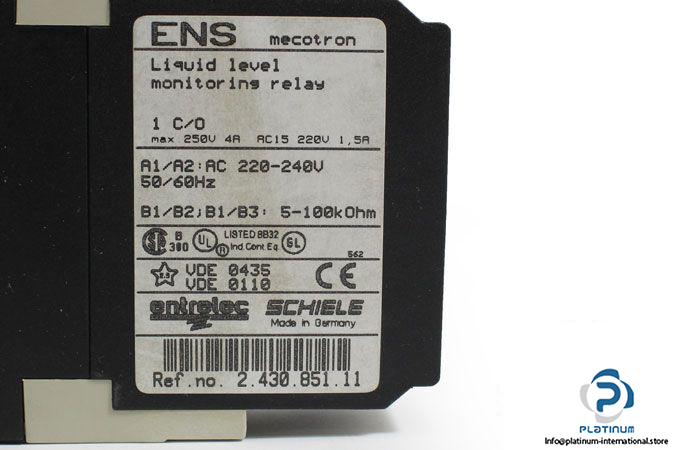

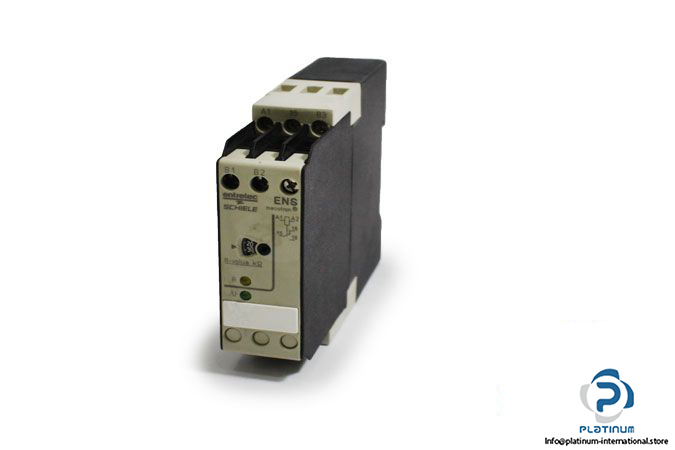

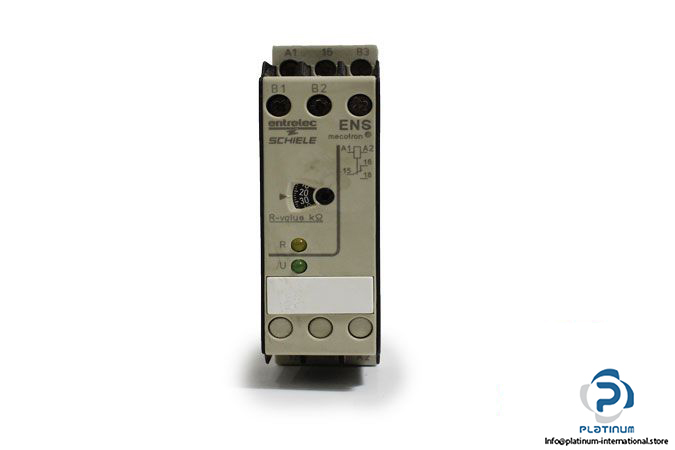

Entrelec Schiele ENS Liquid Level Monitoring Relay

Manufacturer: ENTRELEC SCHIELE

Type: LIQUID LEVEL MONITORING RELAY

Model: ENS

Supply Voltage: 220 … 240 VAC

Power Consumption: 1.5 VA

Frequency: 50/60 Hz

Electrode Inputs: ground-referring electrode

Electrode Current Max.: 1 mA

Electrode Voltage Max: 30 VAC

Delay on Operate: approx. 250 ms

Mounting to DIN: Snap-on mounting/screw mounting by adapter

Operating Temperature: -20 … +60° C

Dimensions: 22.5 X 78 X 101 mm
