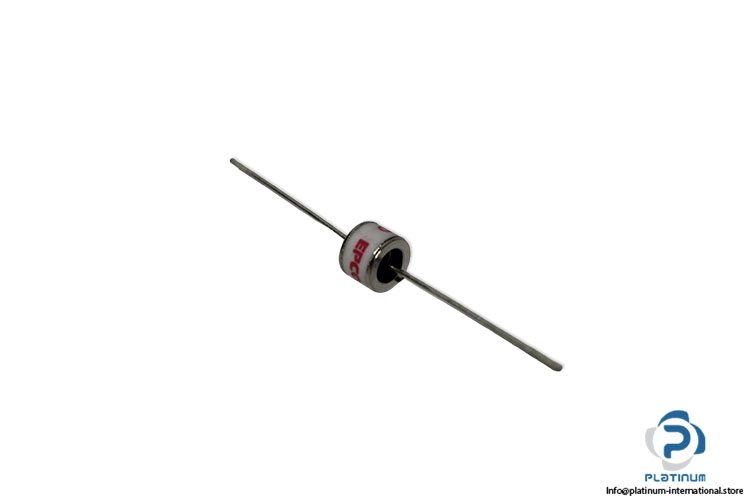

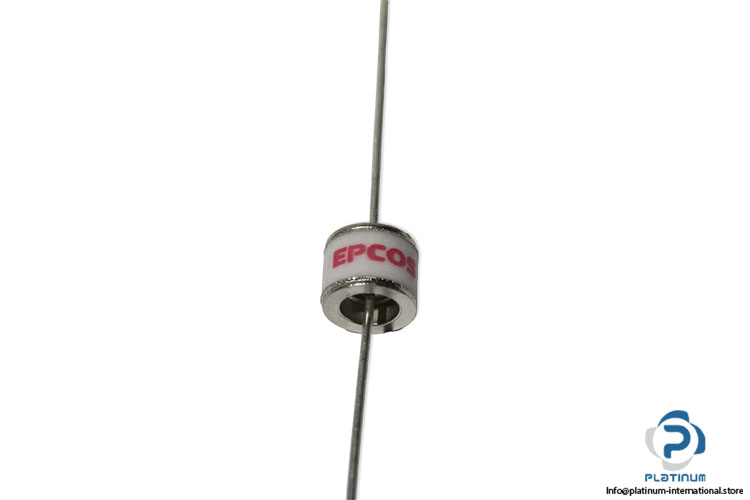

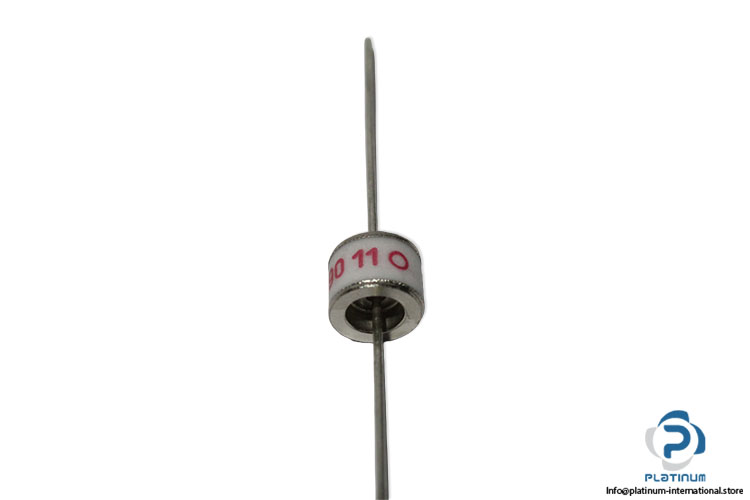

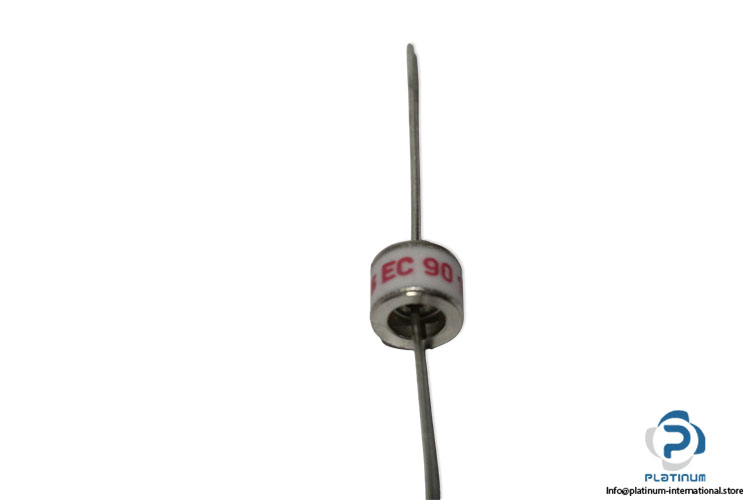

Epcos EC90X 2-ELECTRODE Arrester
Neu
Auf Lager80 EinheitenVersandbereit
The EPCOS EC90X 2-Electrode Arrester is a gas discharge surge protection device featuring a 90–108 V DC spark-over voltage, maximum 1.5 pF capacitance, and long service life. It is designed to protect industrial and telecommunications equipment from transient overvoltages.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Code | B88069X0720S102, |
| spark-over voltage | 90 to 108V DC |
| Capacitance at 1 MHz | max. 1.5 pF |
| Service life | (10 operations 50 Hz, 1 s 5A), (1 operation 50 Hz, 0.18s (9 cycles) 20A) |
| Operation temperature | -40 ... +90 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093451 |
| Weight | 0,01 |
