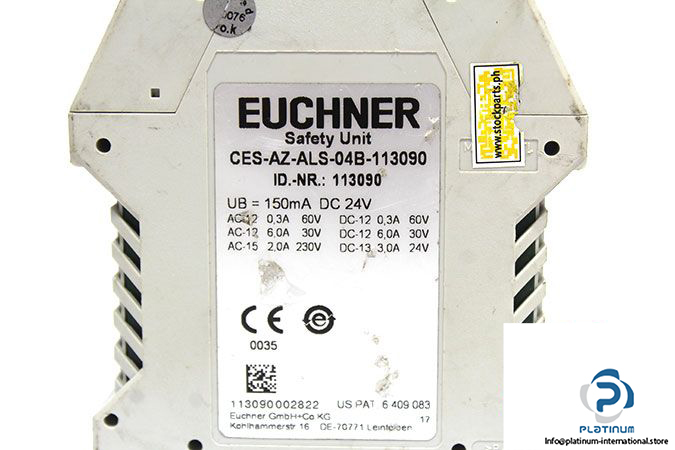

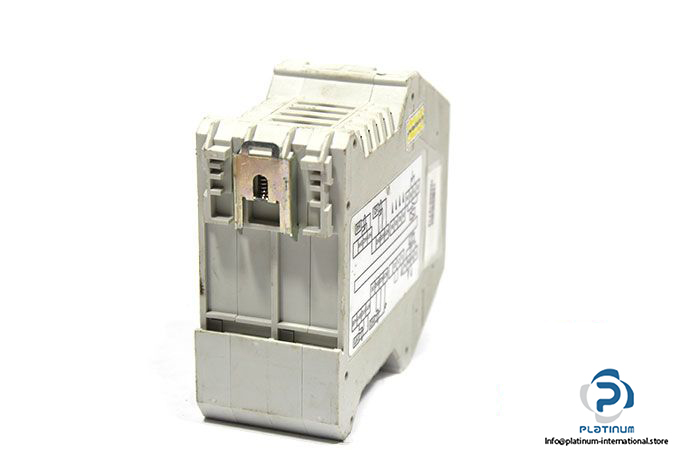

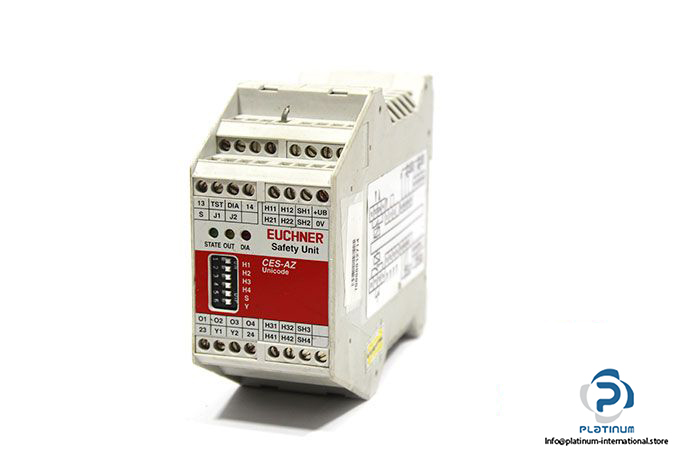

Euchner CES-AZ-ALS-04B-113090 Safety Unit‎

Manufacturer: EUCHNER

Type: Evaluation unit

Model: CES-AZ-ALS-04B-113090 ‎

Part No.: 113090

Inputs

Operating voltage: 21 … 24 … 27 V DC

Resistance: max. 600 Ω

Input current: 5 … 8 … 10 mA

Current Consumption: 150 mA

Input voltage: LOW 0 … 2 V DC, HIGH   15 … UB V DC

Output

Output current: max. 20 mA

Output voltage: 0 … 1 V DC

Output type: Relay contacts, floating

Ready delay: 10 … 12 S

Protection: IP20

Weight: 0.23 kg
