Euchner N01K550-M Plunger Limit Switch
Grenztaster EUCHNER N01K550-M Präziser Einzelschalter mit Kugelkolbenantrieb, Schnapp-Schaltkontakt, IP67 Schutz und robustem eloxiertem Gehäuse für industrielle Automatisierungsanwendungen.

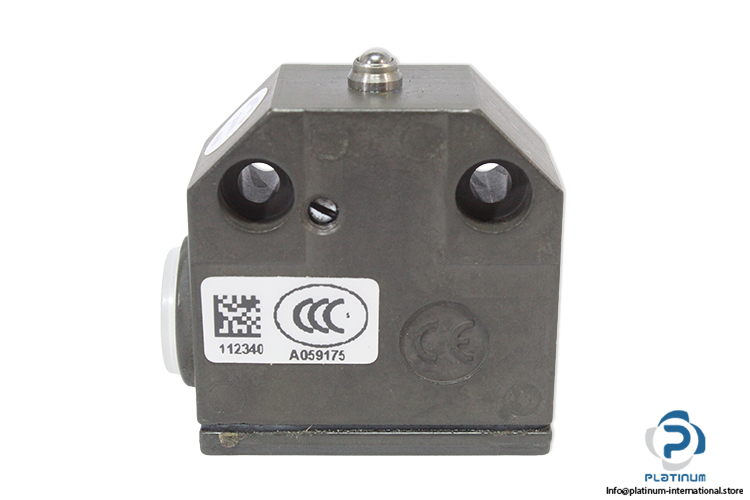

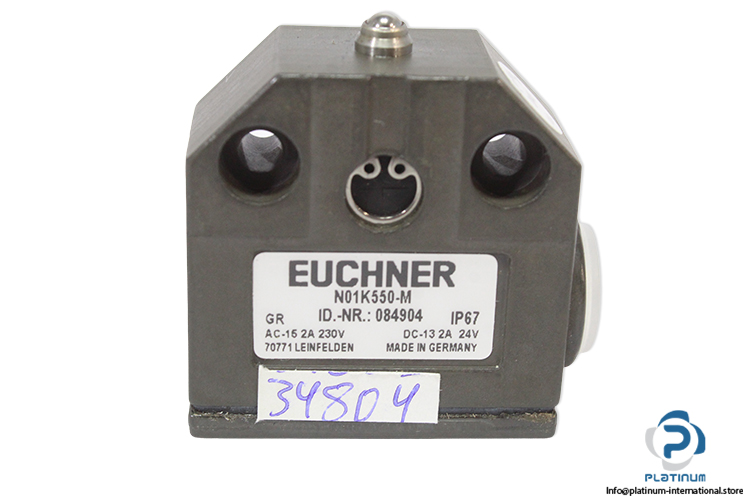

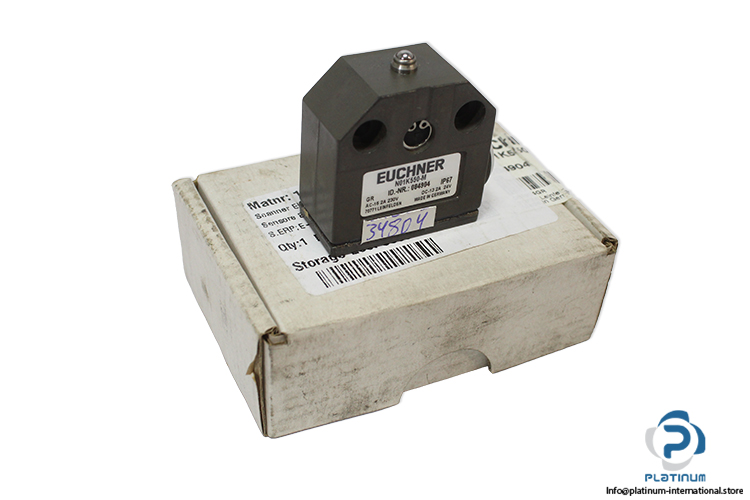

EUCHNER N01K550-M Precision Single Limit Switch
The EUCHNER N01K550-M is a precision single limit switch with ball plunger actuation designed for reliable position detection in industrial automation systems. Built with a robust anodized die-cast housing and high-quality contact materials, this switch ensures dependable switching performance and long mechanical life in demanding environments.
Manufacturer: EUCHNER
Type: Precision Single Limit Switch, Plunger
Model: N01K550-M
Order No.: 084904
MAT No.: 10224681
Code: E-084904
| Number Of Door Position NC Contacts | 1 Changeover Contact |
| Number Of Door Position NO Contacts | 1 |
| Actuating Element | Steel Ball D Ball = 4 mm “ Ball Plunger |
| Electrical Connection Values Fuse | Max. 6 A gG |
| Connection Cross Section | 0.14 ... 1 mm² |
| Rated Insulation Voltage Ui | 250 V |
| Rated Impulse Voltage Uimp | 2.5 kV |
| Utilization Category AC-15 | 2 A 230 V |
| Utilization Category DC-13 | 2 A 24 V |
| Switching Current Min. At DC 24V | 10 mA |
| Thermal Rated Current Ith | 6 A |
| Mechanical Values And Environment Anfahrgeschwindigkeit | 0.01 ... 8 m/min |
| Connection Type | 1 × M12 × 1.5 |
| Actuating Force | 15 ... 20 N |
| Installation Orientation | Any |
| Storage Temperature | -25 ... 80 °C |
| Mechanical Life | 10 × 10¶ |
| Switching Principle | Changeover Contact With Snap-Action Function |
| Degree Of Protection | IP67 |
| Ambient Temperature | -5 ... 80 °C |
| Material Contact | Silver Alloy, Gold Flashed |
| Housing | Anodized Die-Cast Alloy |
