Euchner N1AR514SVM5-M Roller Plunger Single Safety Switch

Name: EUCHNER N1AR514SVM5-M ROLLER PLUNGER SINGLE SAFETY SWITCH
SKU: 1091311
Availability: LimitedAvailability

euchner-N1AR514SVM5-M-safety-switch-(New)

euchner-N1AR514SVM5-M-safety-switch-(New)-1

euchner-N1AR514SVM5-M-safety-switch-(New)-2

euchner-N1AR514SVM5-M-safety-switch-(New)-3

Neu

Auf Lager1 EinheitVersandbereit

Single Safety Switch

Industrial single safety switch with roller plunger actuator, IP67 protection, and M12 connector, designed for reliable position monitoring and safety applications.

Hersteller

EUCHNER

SKU

1091311

Kategorie

Safety Devices

Zustand

Neu

Euchner Industrial IP67 M12 Machine Plunger Position Roller Safety Single Switch

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

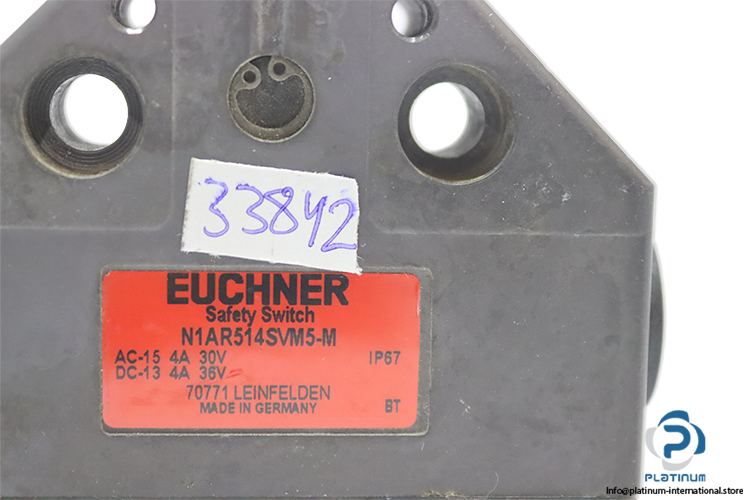

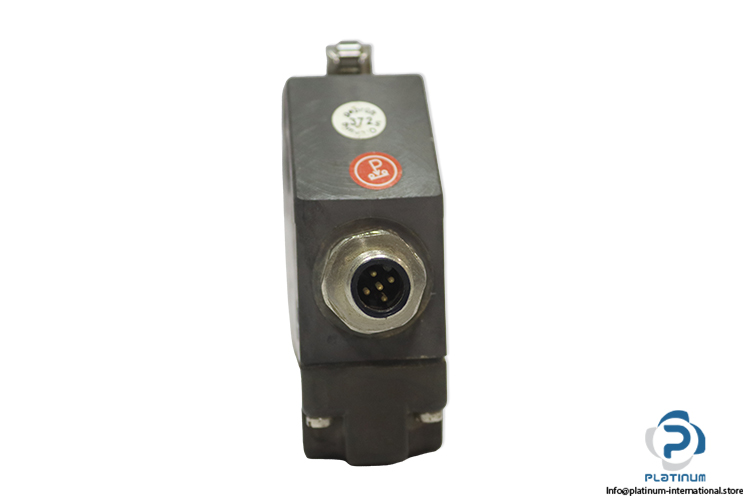

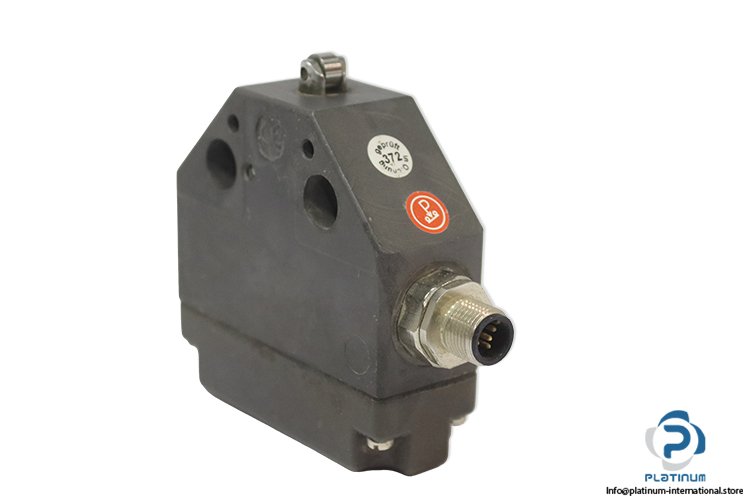

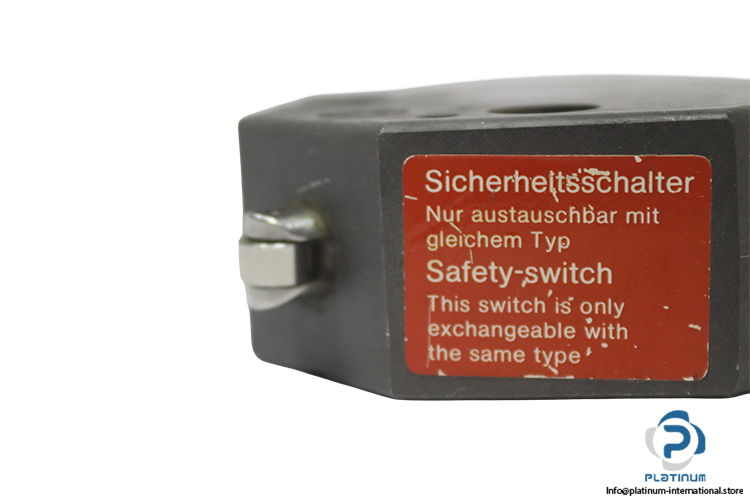

EUCHNER N1AR514SVM5-M Single Safety Switch

The EUCHNER N1AR514SVM5M single safety switch is designed for reliable position monitoring and safety-related control applications in industrial environments. With robust construction, precise switching behavior, and high protection class, it ensures dependable performance in demanding automation systems.

Manufacturer: EUCHNER

Type: Single Safety Switch

Model: N1AR514SVM5-M

Order No.: 087604

Series	N1AR
Rated Insulation Voltage (Ui)	50 V
Rated Impulse Voltage (Uimp)	1.5 kV
Contact Configuration	1 NO + 1 NC
Switching Voltage	24 V DC
Switching Current	5 mA
Actuator Type	Roller Plunger
Connection	M12 Connector, 6-Pin + PE
Material	Anodized Die-Cast Alloy
Protection Class	IP67
Ambient Temperature	-25 / 80 °C
Dimensions	76 x 76 x 28 mm
