Euchner NM12AK-M Safety Switch
Neu
Auf Lager1 EinheitVersandbereit
Industrieller Sicherheitsschalter EUCHNER mit klappbarem Betätiger und IP67-Schutz, entwickelt für Maschinenschutz und Türüberwachung in industriellen Automatisierungssystemen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
EUCHNER NM12AK-M Safety Switch
The EUCHNER NM12AK-M is an industrial safety switch designed for machine guarding and access control applications. It ensures reliable monitoring of protective doors and safety covers in automated systems and industrial equipment.
Manufacturer: EUCHNER
Type: Safety Switch
Model: NM12AK-M

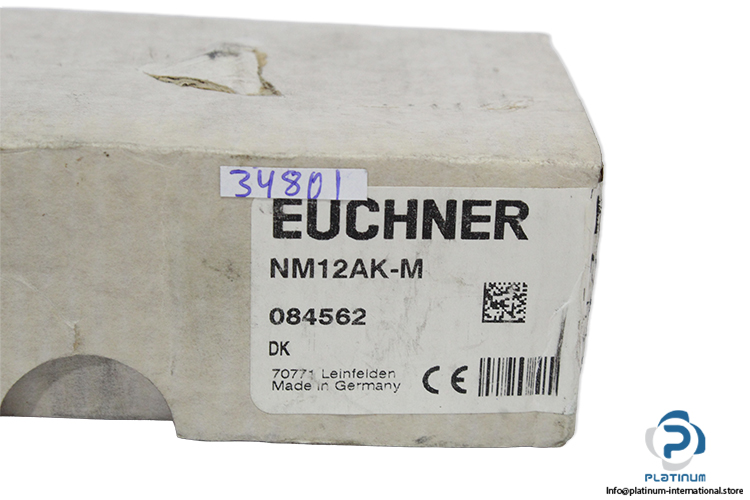

Order No: 084562
Mechanical Values And Environment

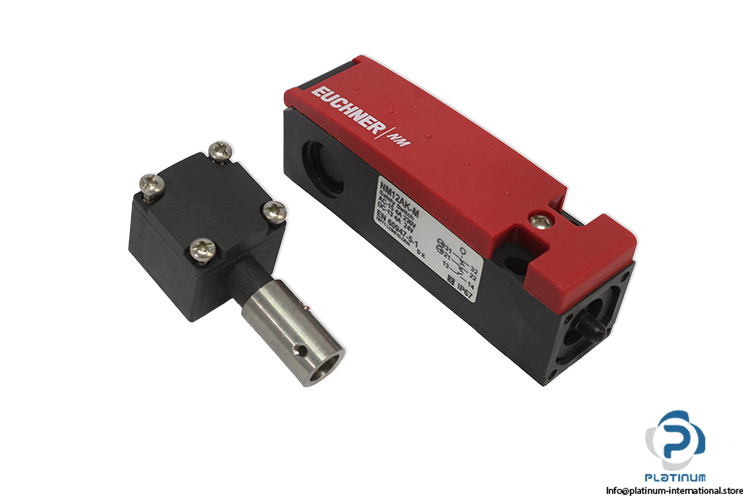

| Actuator Type | Hinged Actuator |
| Fuse | max. 4 A gG |
| Connection Cross Section | 0.34 ... 1.5 mm² |
| Rated Insulation Voltage (Ui) | 250 V |
| Rated Impulse Voltage (Uimp) | 2.5 kV |

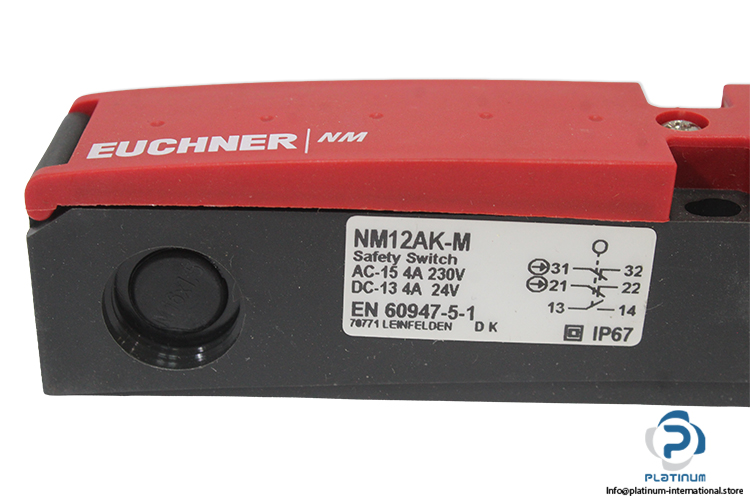

| Utilization Category AC-15 | 4 A 230 V |
| DC-13 | 4 A 24 V |
| Switching Voltage Min. At 10 mA | 12 V |
| Switching Current Min. At 24 V | 1 mA |
| Thermal Rated Current (Ith) | 4 A |
| Approach Speed (Anfahrgeschwindigkeit) | max. 60 m/min |
| Approach Direction | Head Enclosed |
| Connection Type | 3 x M16 x 1.5 |
| Number Of Door Position NO Contacts | 1 |
| Number Of Door Position Positively Driven Contacts | 2 |
| Design | Long Housing |
| Actuation Frequency | max. 5000 1/h |
| Actuating Torque | 0.1 Nm |
| Installation Orientation | Any |
| Storage Temperature | -25 ... 80 °C |
| Mechanical Life | 4 x 10¶ |
| Switching Principle | Slow-Action Switching Contact |
| Degree Of Protection | IP67 |
| Ambient Temperature | -20 ... 80 °C |
| Material Contact | Silver Alloy, Gold Flashed |
| Housing | Reinforced Thermoplastic |
| Standard | EN 60947-5-1 |
