Euchner NZ1RS-538-M Safety Switch
Sicherheitsschalter Der Euchner Sicherheitsschalter NZ1RS538M verfügt über einen Nennstrom von 10 A bei 230 V AC, einen Schutzgrad von IP67 und einen Rollenstößel-Aktor. Entwickelt für einen zuverlässigen Betrieb in industriellen Sicherheitsanwendungen mit einem weiten Temperaturbereich von -25 bis +80 °C.

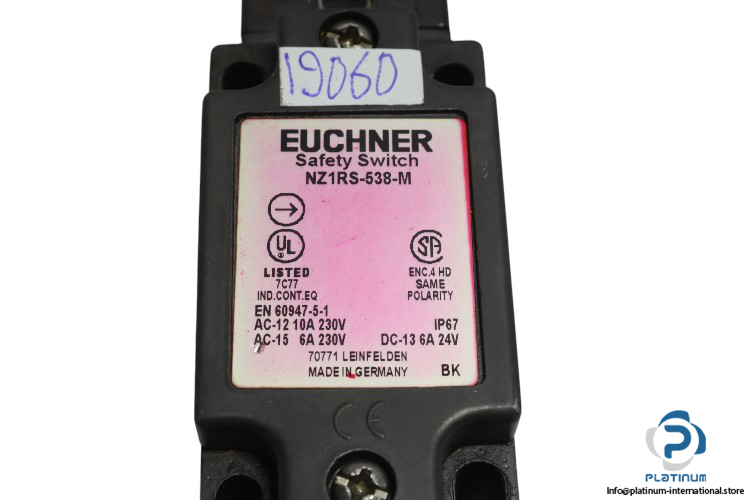

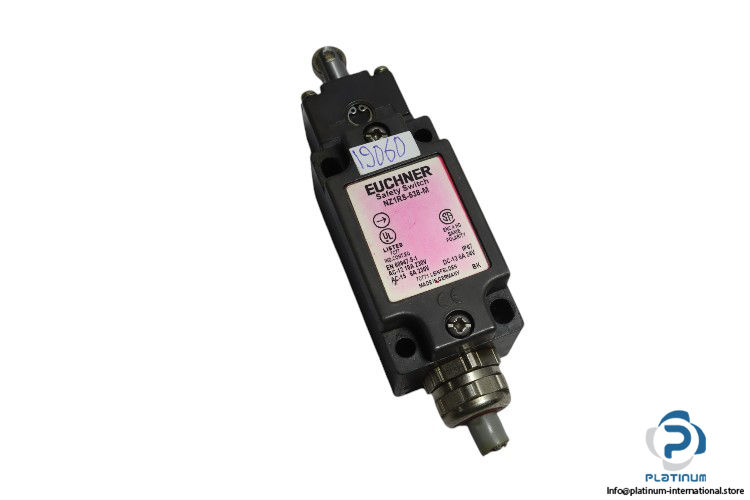

Euchner Safety Switch NZ1RS538M
The Euchner Safety Switch NZ1RS538M is designed to provide reliable and secure operation in safety-critical applications. With high-quality construction and precise switching functionality, it ensures safe machine operations. Featuring a roller plunger actuator and positively driven contacts, this safety switch meets high standards of reliability and durability, suitable for environments with high protection requirements.
Manufacturer: Euchner
Type: Safety Switch
Model: NZ1RS538M
Material:
With a high degree of protection (IP67) and wide temperature range, the Euchner NZ1RS538M is an ideal choice for industrial safety applications, offering reliable performance in harsh environments.
| Rated current at 230 V AC-12 | 10 A |
| Switching current at DC-13 24 V | 6 A |
| Switching current at AC-15 230 V | 6 A |
| Connection type | Cable entry M20 x 1.5 |
| Actuator type | Roller plunger |
| No. of door position positively driven contacts | 2 |
| Switching principle | Slow-action switching contact |
| Actuating force | 15 to 30 N |
| Standard | EN 60947-5-1 |
| Protection degree | IP67 |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
| Ambient temperature | -25 to +80 °C |
