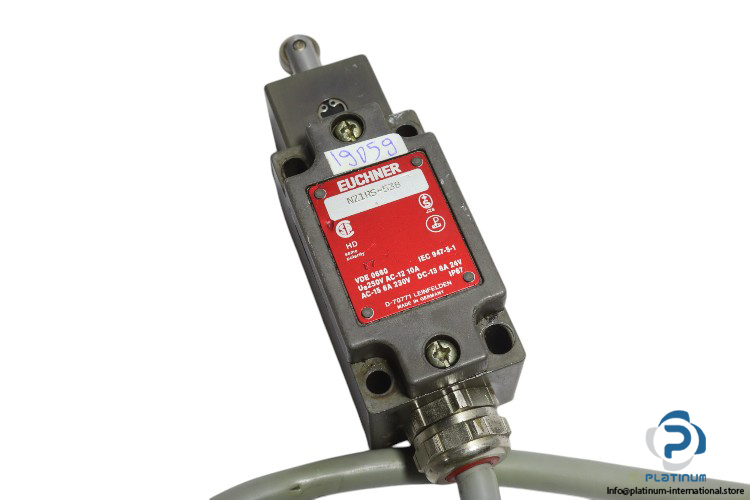

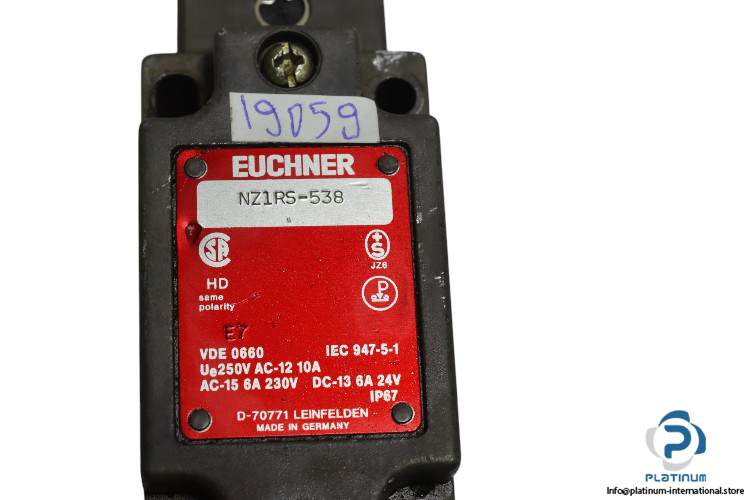

Euchner NZ1RS-538 Safety Switch
Sicherheitsschalter Der Euchner NZ1RS538 Sicherheitsschalter bietet eine Nennspannung von 250V, einen Nennstrom von 10A und einen Rollstempelbetätiger. Für Sicherheit gebaut, sorgt er für Zuverlässigkeit in industriellen Anwendungen mit langsam schaltendem Kontakt.
Euchner NZ1RS538 Safety Switch
The Euchner NZ1RS538 Safety Switch is a reliable and durable solution designed for safety applications. It ensures safe operation with slow-action switching contact and high-quality materials, providing high performance in demanding environments such as industrial machinery and automation systems.
Manufacturer: Euchner
Type: Safety Switch
Model: NZ1RS538
Material:
Designed for critical safety applications, the Euchner NZ1RS538 provides robust performance, high safety standards, and long-lasting durability.
| Rated Voltage | 250 V |
| Rated Current AC-12 | 10 A |
| Switching Current at DC-13 24 V | 6 A |
| Switching Current at AC-15 230 V | 6 A |
| Connection Type | Cable entry M20 x 1.5 |
| Actuator Type | Roller Plunger |
| No. of Door Position Positively Driven Contacts | 2 |
| Switching Principle | Slow-action switching contact |
| Standard | VDE 0660, IEC 947-5-1 |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
