Euchner NZ2HS-511L060 Safety Switch

Name: EUCHNER NZ2HS-511L060 SAFETY SWITCH
SKU: 1060833
Availability: LimitedAvailability

euchner-NZ2HS-511L060-safety-switch-(used)

euchner-NZ2HS-511L060-safety-switch-(used)-1

euchner-NZ2HS-511L060-safety-switch-(used)-2

euchner-NZ2HS-511L060-safety-switch-(used)-3

euchner-NZ2HS-511L060-safety-switch-(used)-4

Gebraucht

Auf Lager1 EinheitVersandbereit

Safety Switch

The EUCHNER NZ2HS-511L060 safety switch offers 6A rated current, IP65 protection, and LED display for reliable monitoring in industrial environments.

Hersteller

EUCHNER

SKU

1060833

Kategorie

Limit Switches

Zustand

Gebraucht

089094 Ac/Dc Connector Device Euchner Industrial IP65 LED monitoring NZ2HS-511L060 Plug Position Safety Switch

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

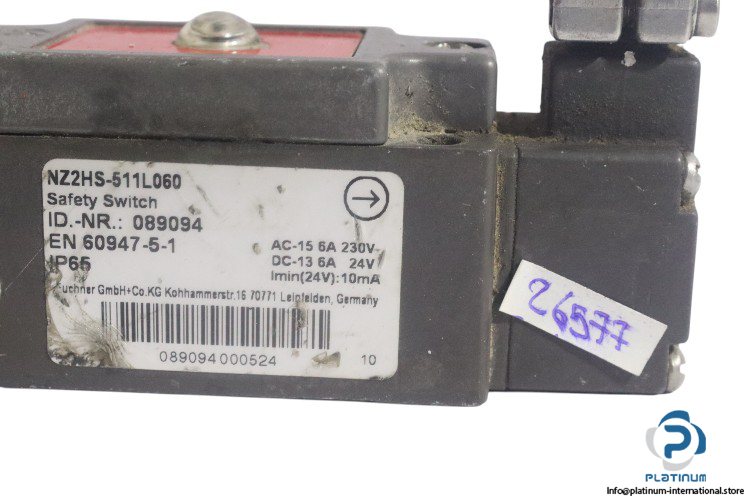

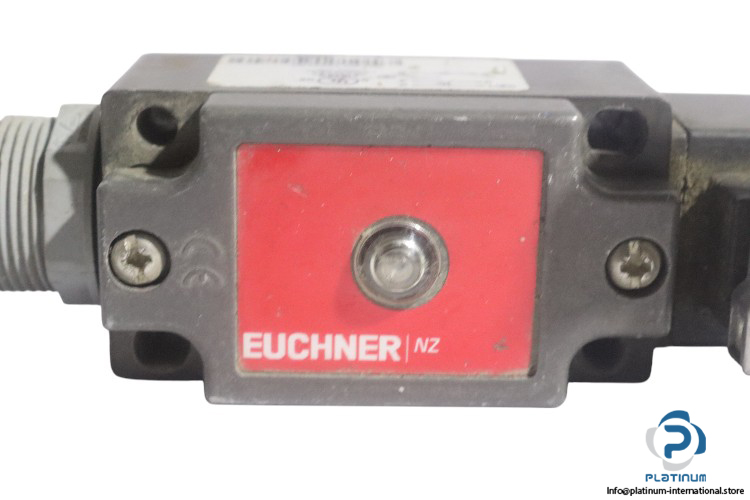

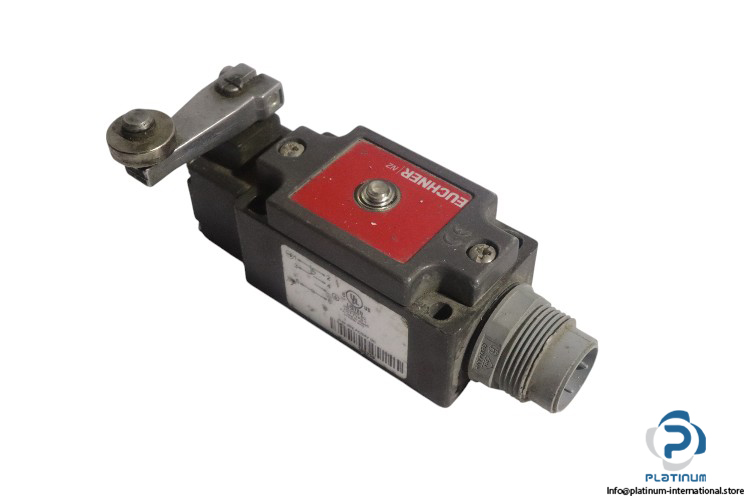

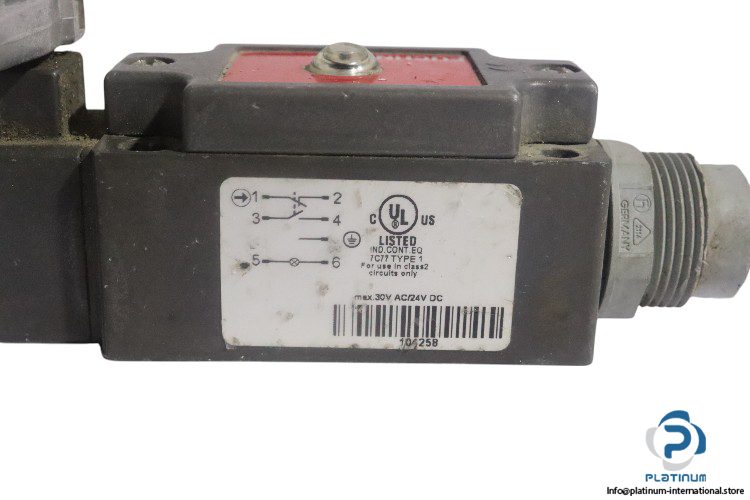

EUCHNER NZ2HS-511L060 Safety Switch

The EUCHNER NZ2HS-511L060 (Part No. 089094 / 60947-5-1) is a high-performance safety switch designed for secure position monitoring in industrial environments. It features a robust die-cast alloy housing, high electrical ratings, and a sealed IP65 protection level for demanding applications.

Manufacturer: EUCHNER

Type: Safety Switch

Model: NZ2HS-511L060

Part No.: 089094 / 60947-5-1

Utilization Category:

Display Module	12 ... 60 V AC/DC, LED red
Rated Insulation Voltage (Ui)	250 V
Rated Impulse Voltage (Uimp)	2.5 kV
DC-13	6 A, 24 V
AC-15	6 A, 230 V
Thermal Rated Current (Ith)	6 A

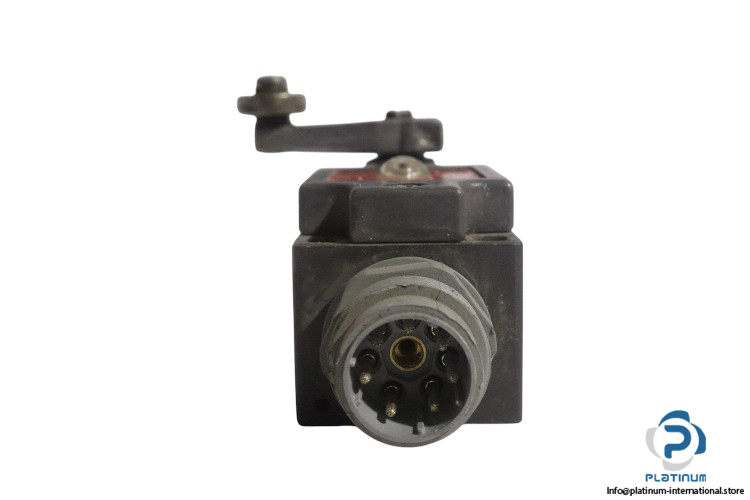

Connection Type	1 x Plug connector SR6
Degree of Protection	IP65
Ambient Temperature	-25 ... +80 °C
Housing Material	Anodized die-cast alloy
