Euchner NZ2VZ-528E Safety Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Safety Switch
The Euchner NZ2VZ-528E safety switch offers reliable door monitoring with IP65 protection, positively driven contacts, and robust die-cast alloy construction.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

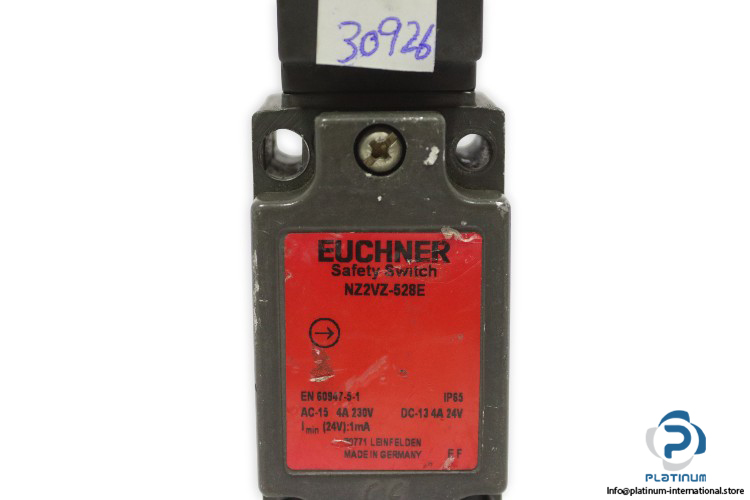

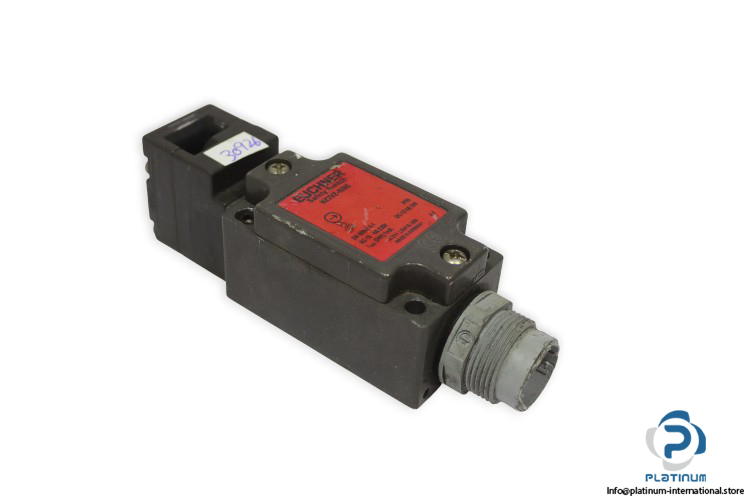

Euchner NZ2VZ-528E Safety Switch
The Euchner NZ2VZ528E Safety Switch is a robust and reliable safety device designed for monitoring guard doors and machine access points. Built with a durable anodized die-cast alloy housing and achieving IP65 protection, it ensures dependable operation in demanding industrial environments.
Manufacturer: Euchner
Type: Safety Switch
Model: NZ2VZ-528E
Order No.: 084885
| Rated Insulation Voltage Ui | 250 V |
| Rated Impulse Voltage (Uimp) | 2.5 kV |
| Door Position Positively Driven Contacts No. | 1 |
| Door Position Contacts | 1 Normally Open (NO) |
| Switching Voltage | 12 V |
| Switching Current | 1 mA |

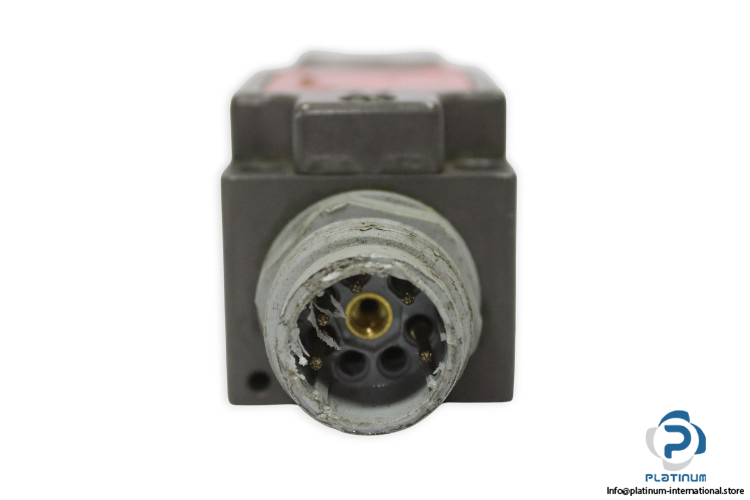

| Connection | SR6 Plug Connector 6-Pin + PE |
| Material | Anodized Die-Cast Alloy |
| Protection Class | IP65 |
| Ambient Temperature | -25 / 80 °C |
| Dimensions | 74 x 40 x 52 mm |
