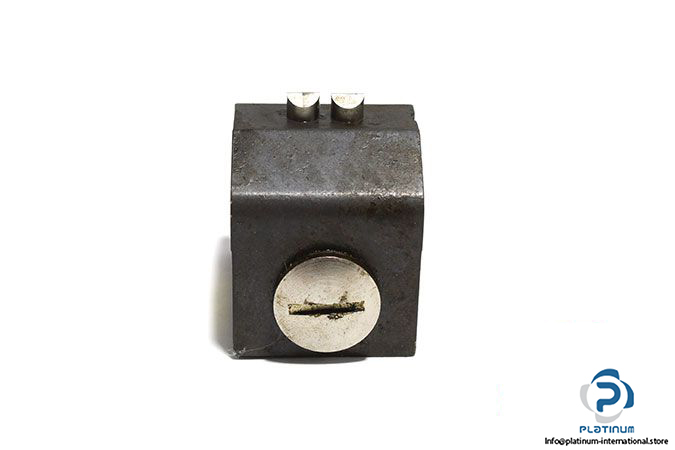

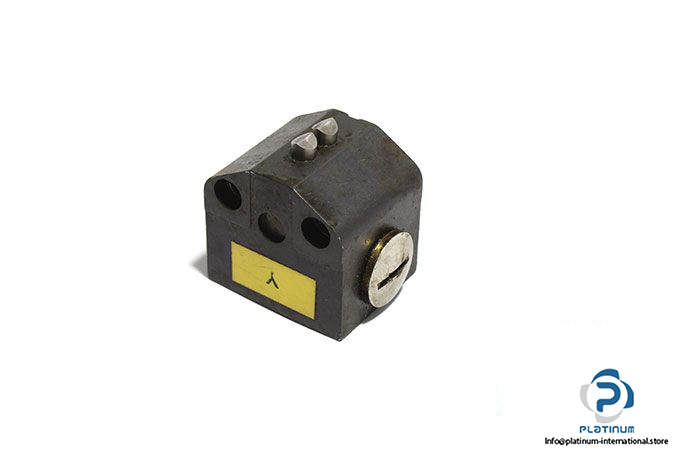

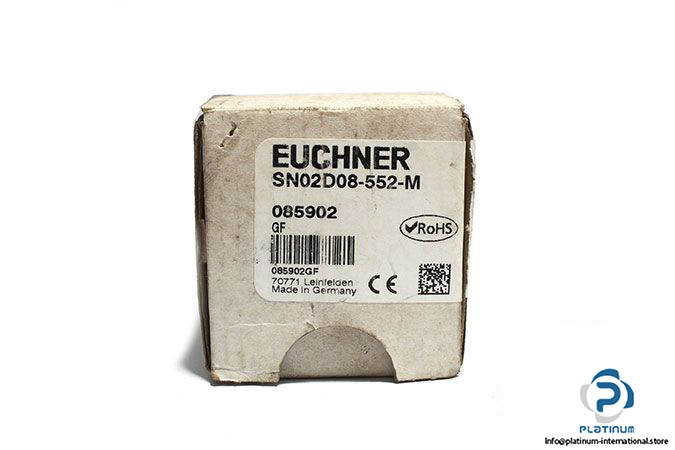

Euchner SN02D08-552-M Limit Switch

Manufacturer: EUCHNER

Type: Limit Switch

Model: SN02D08-552-M

Order No.: 085902

Output Configuration: 2 Normally open + 2 Normally closed

Contact Operation: Snap action

Actuator Type: Chisel Plunger

Switching Voltage max.: 230 V AC

Contact Current max.: 2 A

Connection: M16 x 1.5 cable entry,Both sides

Protection Class: IP67

Ambient Operating Temperature: -5 … 80°C

Dimensions: 40 x 33 x 38 mm

Weight: 0.120 Kg
