Electrical Components Switches Limit Switches

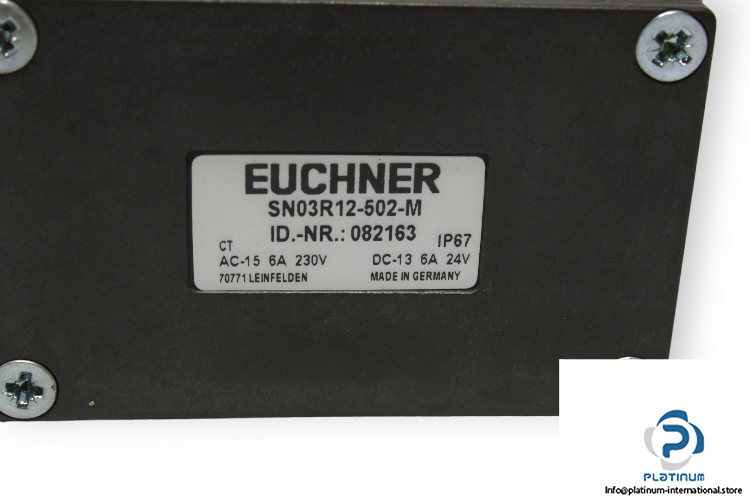

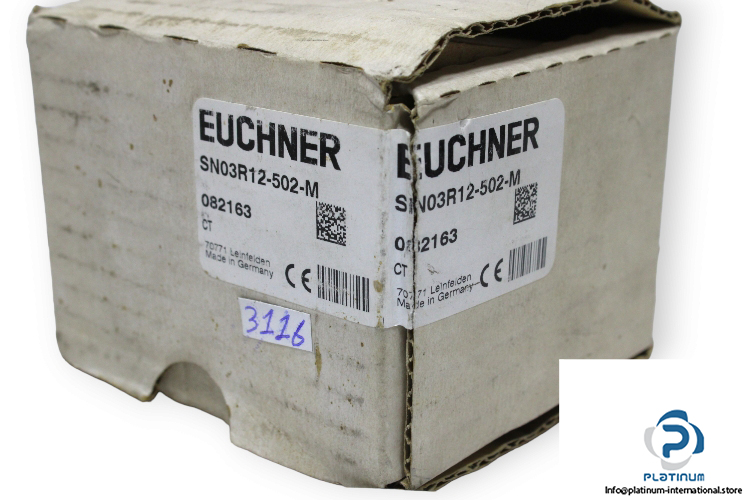

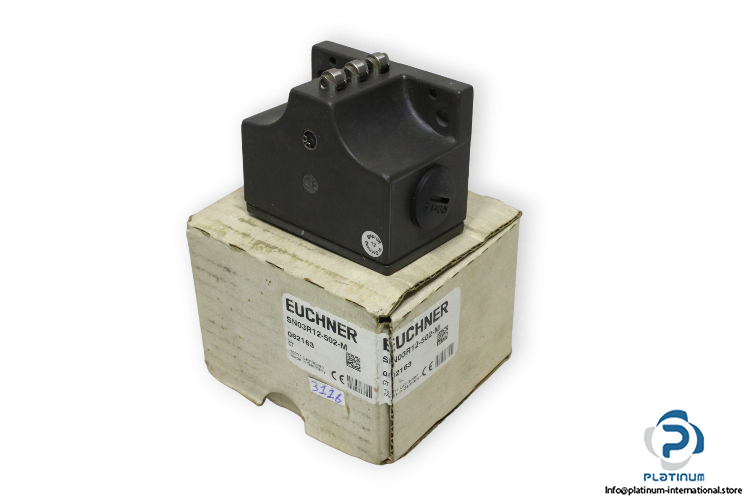

Euchner SN03R12-502-M Limit Switch

Name: EUCHNER SN03R12-502-M LIMIT SWITCH
SKU: 1017212
Price: 200.00 USD
Availability: InStock

euchner-SN03R12-502-M-multiple-limit-switch-(new)

euchner-SN03R12-502-M-multiple-limit-switch-(new)-1

euchner-SN03R12-502-M-multiple-limit-switch-(new)-2

Neu

Auf Lager3 EinheitenVersandbereit

200,00$

Manufacturer:

EUCHNER

Type:

Limit Switch

Model:

SN03R12-502-M

Part No.:

082163

Hersteller

EUCHNER

SKU

1017212

Kategorie

Limit Switches

Zustand

Neu

AND Limit Multiple Position Sensor Single Switch Switches

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: EUCHNER
Type: Limit Switch
Model: SN03R12-502-M
Part No.: 082163

Output Configuration: 1 NC + 1 NO
Contact Operation: Snap action
Actuator Type: Roller plunger
Plunger spacing: 12 mm
Upright housing: small flange
Connection cross section: 0.34 … 1.5 mm²
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 Kv
Switching current,min. at DC 12V: 10 mA
thermal rated current Ith: 8 A
Approach speed: 0.01 … 80 m/min
Connection: Cable entry
Protection class: IP67
Ambient temperature: -5 … +80 °C
