Euchner TP3-4121A024SR11 Safety Switch

Auf Lager1 EinheitVersandbereit

Safety Switch

The EUCHNER TP3-4121A024SR11 provides secure guard locking with IP65 protection, reinforced housing, positively driven contacts, and reliable operation for industrial safety applications.

Hersteller
EUCHNER
SKU
1084201
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

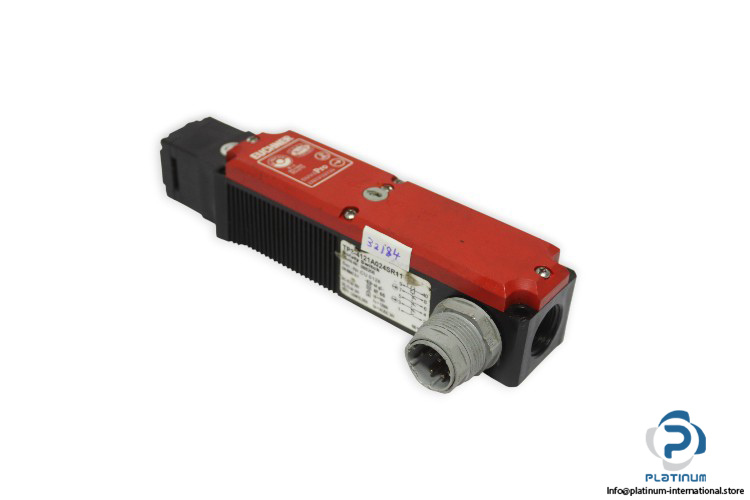

EUCHNER TP3-4121A024SR11 Safety Switch

The EUCHNER TP3-4121A024SR11 is a high-performance safety switch designed for reliable guard locking and monitoring in industrial machinery. Built with reinforced thermoplastic housing and slow-action switching contacts, it ensures dependable safety operation under demanding conditions.

Manufacturer: EUCHNER

Type: Safety Switch

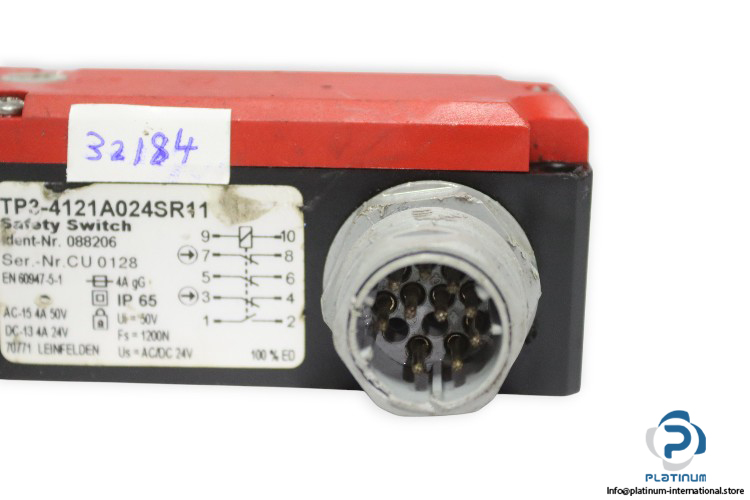

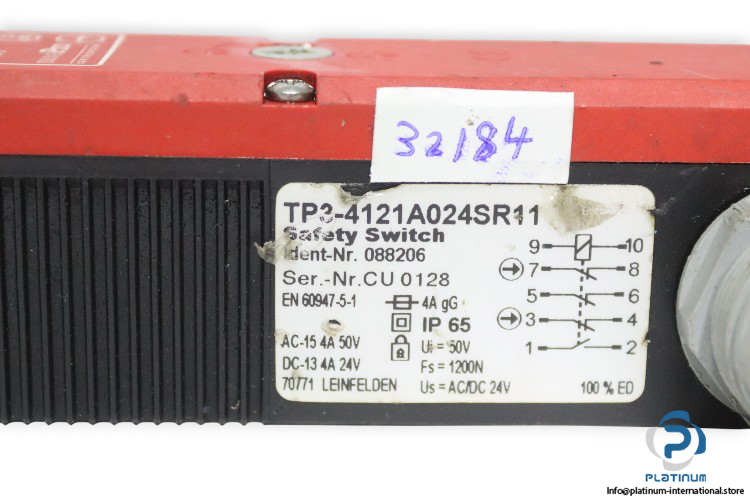

Model: TP3-4121A024SR11

ID Number: 088206

Serial Number: CU0128

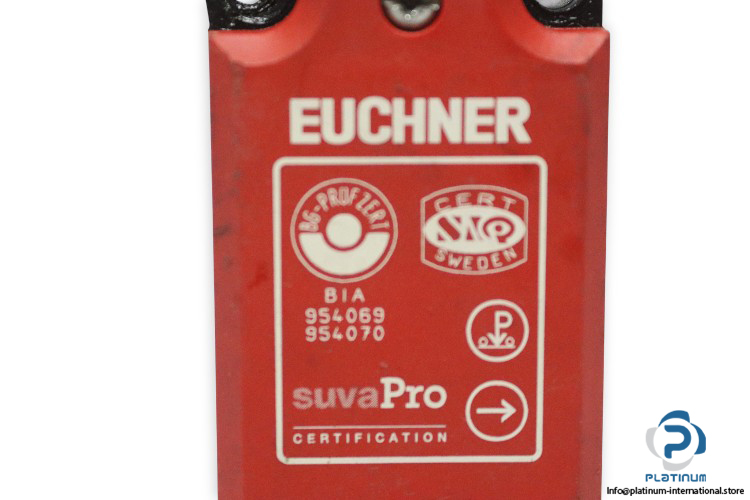

Codes: BIA 954069, BIA 954070

Series: SUVAPRO

Approach Speedmax 20 m per min
Connection Type1 x Plug connector SR11
Number of Door Position NC Contacts1
Number of Door Position NO Contacts1
Guard Lock Monitoring Positively Driven Contacts2
Extraction Force20 N
Actuation Frequencymax 1200 per hour
Actuating Force10 N
Installation OrientationAny
Storage Temperatureminus 25 to 70 degree Celsius
Mechanical Life1 x 10¶
Retention Force10 N
Switching PrincipleSlow-action switching contact
Degree of ProtectionIP65
Ambient Temperatureminus 20 to 55 degree Celsius
Housing MaterialReinforced thermoplastic
Contact MaterialSilver alloy, gold flashed
Locking Force Fmax1300 N
Locking Force S1200 N
Locking Force FZh1000 N
Guard Locking PrincipleClosed-circuit current principle
Fusemax 4 A gG
Power Consumption8 W
Rated Insulation Voltage Ui50 V
Rated Impulse Voltage Uimp1.5 kV
Utilization Category DC134 A 24 V
Utilization Category AC154 A 50 V
Solenoid Operating Voltage AC/DC24 V minus 15 percent to plus 10 percent
Solenoid Duty Cycle100 percent
Minimum Switching Voltage at 10 mA12 V
ConnectionCable entry
StandardsEN 60947-5-1
Ambient Operating Temperatureminus 20 to plus 55 degree Celsius
