Motors & Drives Servo Motors

Eurotherm Antriebe ACM2N 0220-4/1-3 AC Servomotor

Name: EUROTHERM ANTRIEBE ACM2N 0220-4/1-3 AC SERVOMOTOR
SKU: 1087044
Price: 744.44 USD
Availability: InStock

eurotherm-antrirbe-ACM2N-0220-4_1-3-AC-servomotor-used

eurotherm-antrirbe-ACM2N-0220-4_1-3-AC-servomotor-used-1

eurotherm-antrirbe-ACM2N-0220-4_1-3-AC-servomotor-used-2

Gebraucht

Auf Lager1 EinheitVersandbereit

744,44$

AC SERVOMOTOR

EUROTHERM ANTRIEBE ACM2N 0220-4/1-3 AC servomotor with 2.2 Nm torque, 4000 rpm speed, 4.7 A current, IP54 protection, resolver feedback, and thermal protection PTC.

Hersteller

EUROTHERM ANTRIRBE

SKU

1087044

Kategorie

Servo Motors

Zustand

Gebraucht

0220-4/1-3 0328-01245 2/2 4000 AC ACM2N Antrirbe B5 Eurotherm Feedback IM Industrial IP54 motor mounted Nm Protection PTC Resolver rpm Servo Servomotor Thermal

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

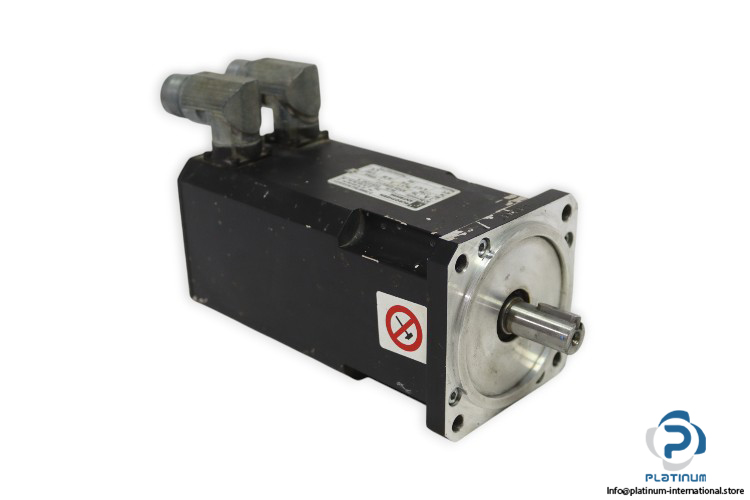

EUROTHERM ANTRIEBE ACM2N 0220-4/1-3 AC Servomotor

The EUROTHERM ANTRIEBE ACM2N 0220-4/1-3 is a high-performance AC servomotor designed for precise motion control in automation systems. With robust torque, high speed, and reliable thermal protection, it ensures long-lasting operation in demanding industrial environments.

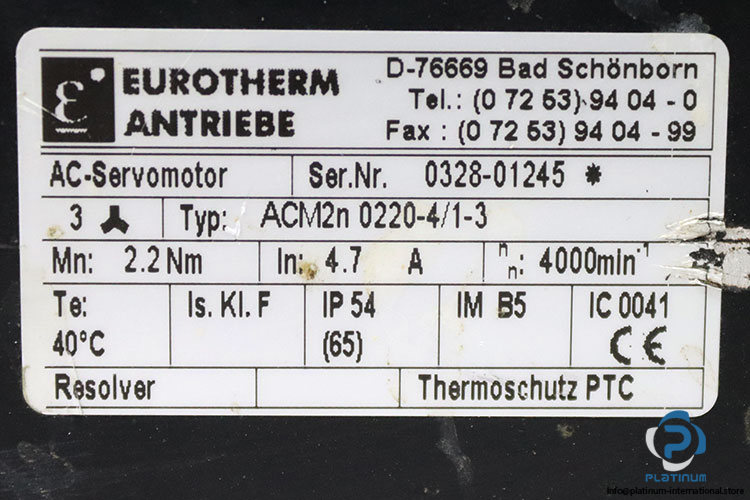

Manufacturer: EUROTHERM ANTRIEBE

Type: AC Servomotor

Model: ACM2N 0220-4/1-3

Serial No.: 0328-01245 *

Rated Torque (Mn)	2.2 Nm
Current	4.7 A
Speed	4000 min»¹ (rpm)
Ambient Temperature	40 °C
Insulation Class	F
Protection Class	IP54 (up to IP65)
Mounting	IM B5
Cooling Method	IC0041
Position Feedback	Resolver
Protection	Thermoschutz PTC (thermal protection)
