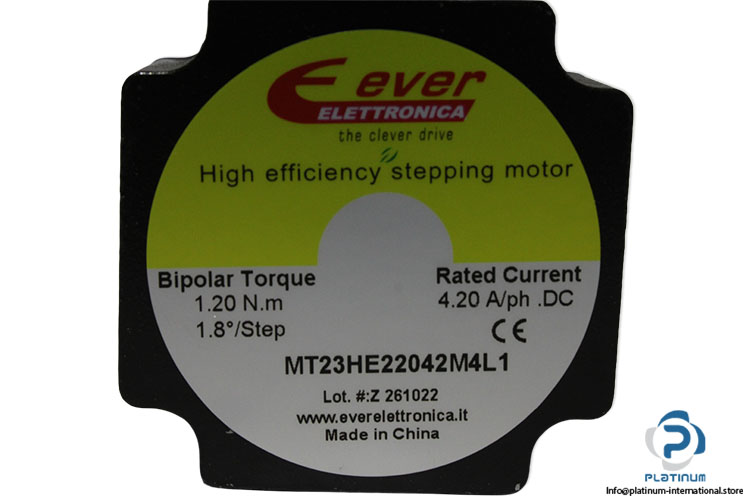

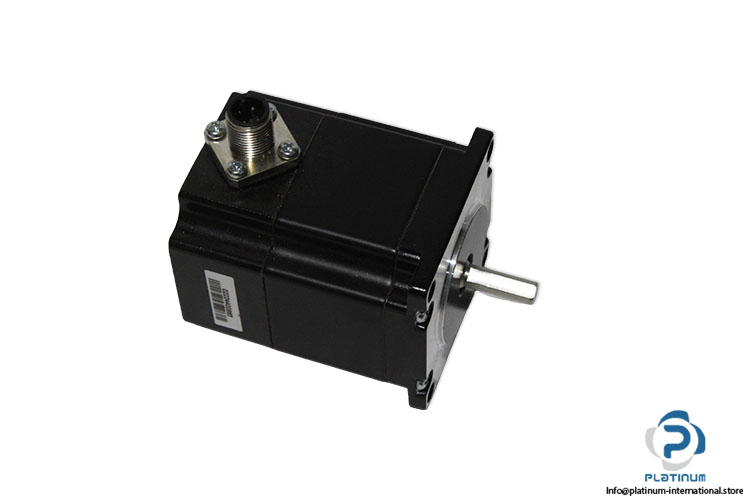

Ever MT23HE22042M4L1 Stepper Motor
Neu
Auf Lager68 EinheitenVersandbereit
199,99$
Schrittmotor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Ref no. | Z 261022 |
| Shaft diameter | 6,35 mm |
| Motor Size | NEMA 23 |
| number of motor stages | 2 |
| holding Torque | 1.20 N.m |
| Rated Current | 4.20 A/ph .DC |
| STEP ANGLE AND ACCURACY | 1,8° ±5% |

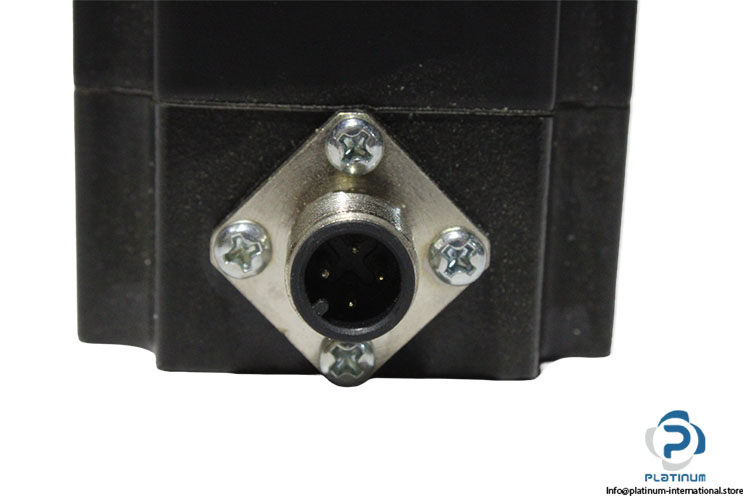

| connection | M12 CONNECTOR |
| Temperaure rise | 80K max at nominal current |
| Operating temperature | -20° to 50° C |
| Dielectric strength | 500 Vac 1 minute |
| Insulation class | B, 130° C |
| Protection Shaft | IP65 |
| radial load | 75 N (at front shaft end) |
| Shaft axial load | 15 N |
| Connector | Circular Connector m12 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1096851 |
| Weight | 0,75 |
