ISO Cylinder
The EICHHOM+WÖMER EWR 70-200 ISO Cylinder is a double-acting pneumatic actuator with 70 mm bore, 200 mm stroke, G 3/8 connection, and square profile for reliable linear motion in industrial environments.2003/867070-200ActingActuatorAirAutomationbarboreCompressedconnectionCylinderDoubleEichhom+Wã–MerEWRGIndustrialISOmalemmPneumaticProfileRODSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

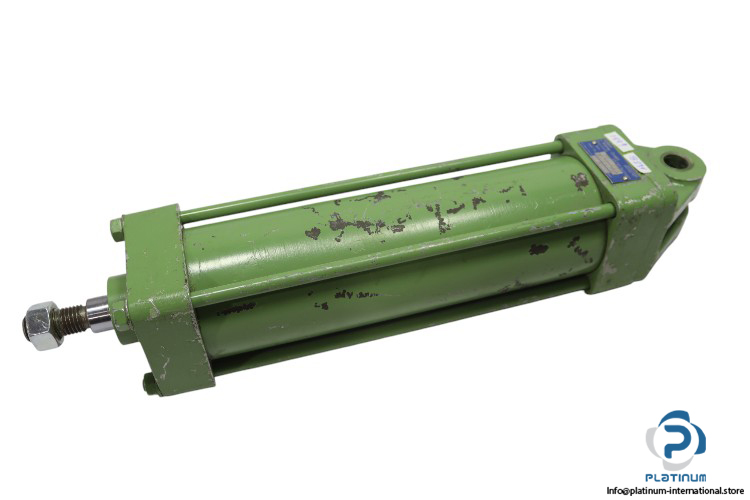

EICHHOM+WÖMER EWR 70-200 ISO Cylinder
The EICHHOM+WÖMER EWR 70200 ISO Cylinder is a high-quality pneumatic actuator designed for industrial applications requiring precise linear motion. Built with durable materials and a square profile, this double-acting cylinder provides reliable performance under a maximum pressure of 6 bar.
Manufacturer: EICHHOM+WÖMER EWR
Type: ISO Cylinder
Model: 70-200

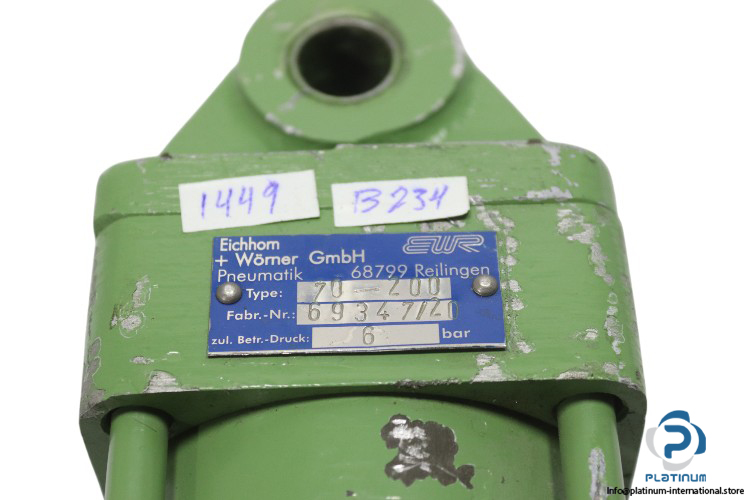

Part No.: 69347/20
| Media | Compressed Air |
| Bore Diameter | 70 mm |
| Stroke Length | 200 mm |
| Bore x Stroke | 70 x 200 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 80 x 320 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 6 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
