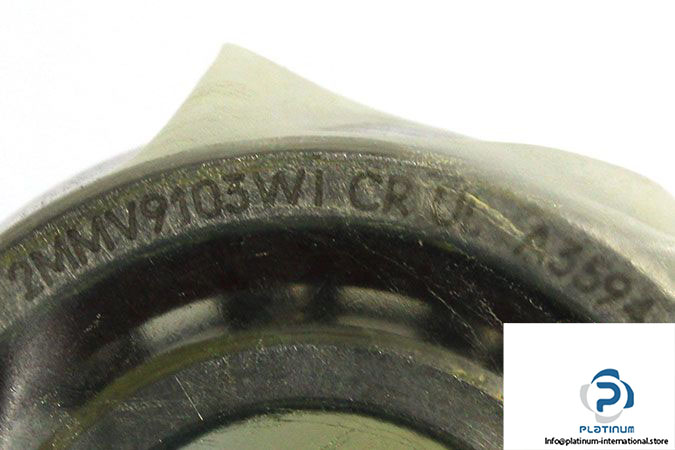

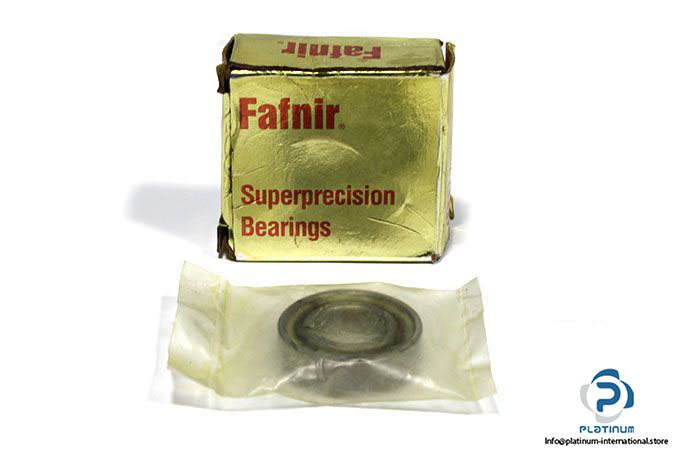

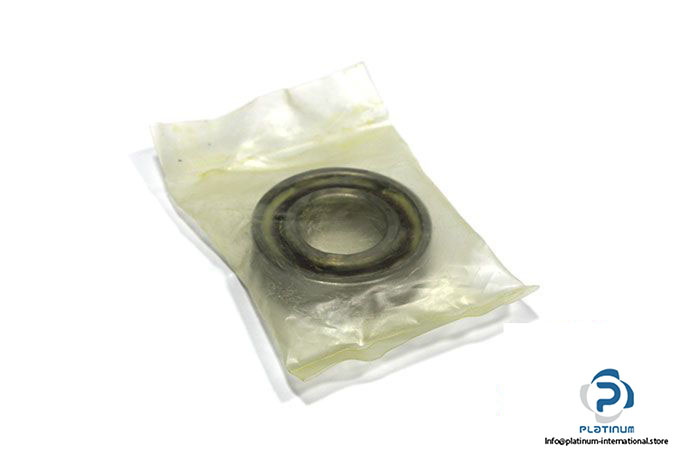

Fafnir 2MMV9103WICRDUL Super Precision Angular Contact Ball Bearing
Manufacturer: FAFNIR
Type: Spindle Angular Contact Ball Bearing

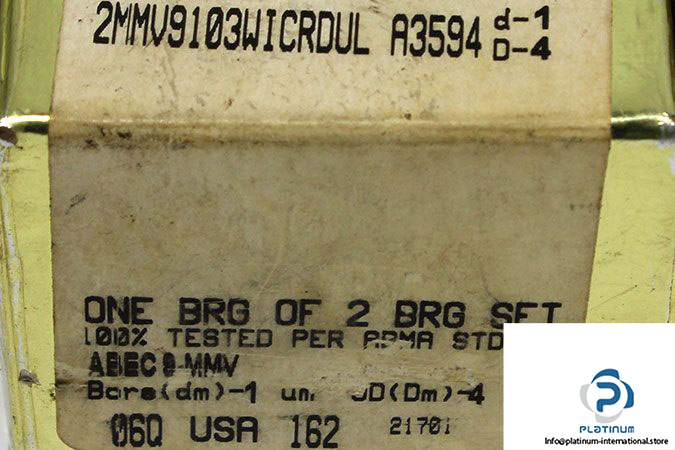

Model: 2MMV9103WI CR UL
Replaces: 7003C-T-P4/P4S

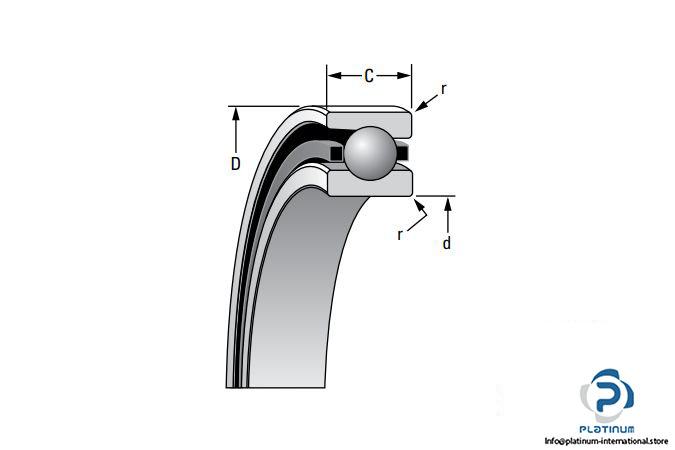

Dimensions
Bore Diameter d: 17 mm
Outer diameter D: 35 mm
Width C: 10 mm
Contact angle α: 15 °
Mounting: Duplex pairs of bearings
Basic load ratings:
Dynamic Cr: 6800 N
Static C0r: 3400 N
Speed Rating (single, grease lubricated): 43100 RPM
Operating Speed (DUL):
Grease: 34500 RPM
Oil: 58700 RPM
Preload (DUL): 20 N
Cage: phenolic cage
Weight: 0.05 kg
