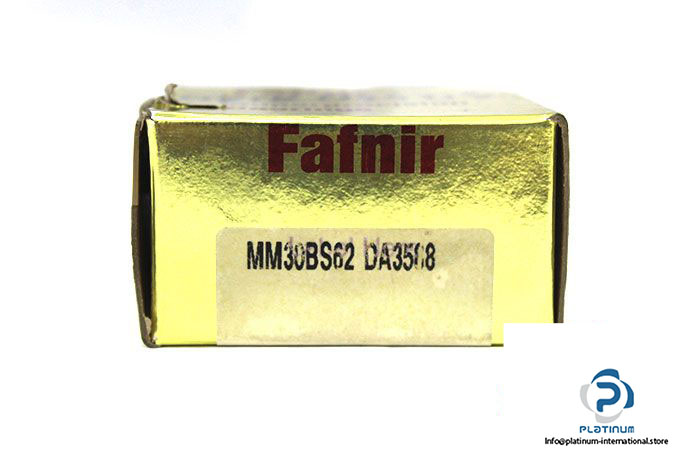

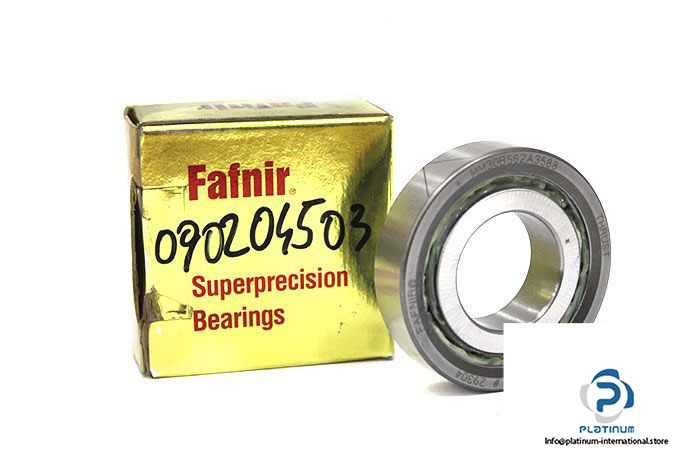

Fafnir MM30BS62 DA3588 Super Precision Ball Screw Bearing

Manufacturer: Timken Fafnir ‎

Type: ‎ Super Precision Ball Screw Bearing

Set No. : MM30BS62 DA3588‎

Bearing No.: MM30BS62A3588

Mounting: Duplex (two bearings)

Design Units: Metric

Bore Diameter: 30 mm

Outer Diameter: 62 mm

Width: 15 mm

Chamfer r_min: 0.8 mm

Contact Angle: 60°

Set G. Weight: 0.43 kg
