Bearings Housing Units Plummer Block Housing Units

Fafnir RCJ 1 3/8 Four-Bolt Flanged Mounted Bearing

Name: FAFNIR RCJ 1 3/8 FOUR-BOLT FLANGED MOUNTED BEARING
SKU: 1085024
Availability: LimitedAvailability

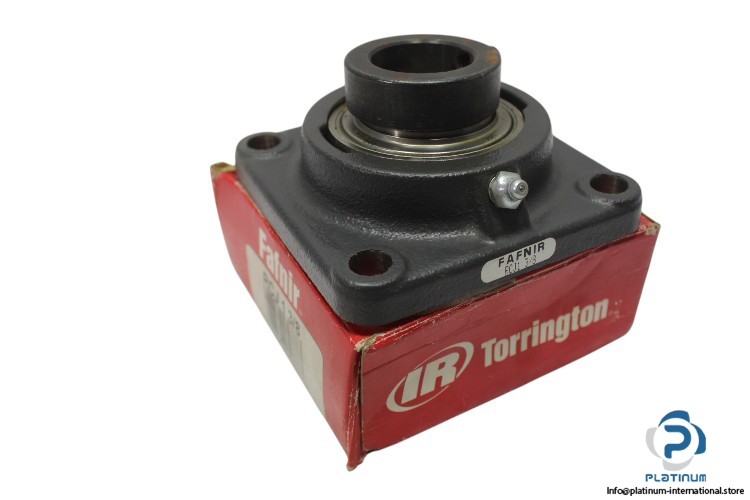

fafnir-RCJ-1-3_8-four-bolt-flanged-mounted-bearing-new-carton

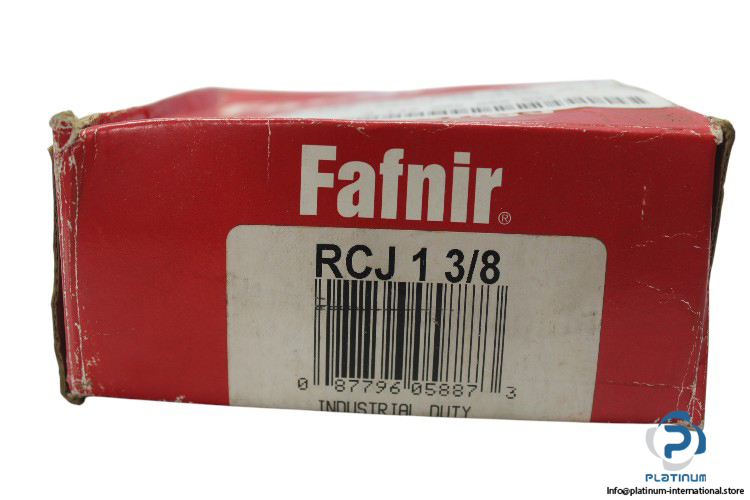

fafnir-RCJ-1-3_8-four-bolt-flanged-mounted-bearing-new-carton-1

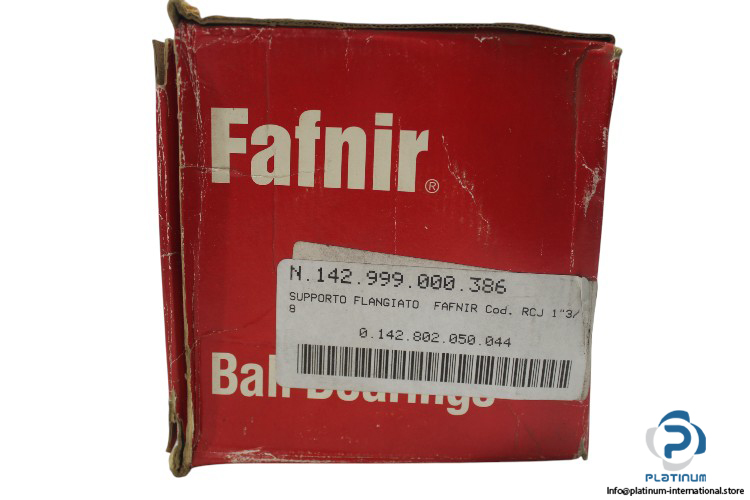

fafnir-RCJ-1-3_8-four-bolt-flanged-mounted-bearing-new-carton-2

Neu

Auf Lager2 EinheitenVersandbereit

Vierloch-Flanschlager Fafnir RCJ 1 3/8 mit 1,37-Zoll-Bohrung und 28500 N dynamischer Tragfähigkeit. Ideal für industrielle Anwendungen, die zuverlässige Leistung und Dichtung mit Schutzabdeckungen erfordern.

Hersteller

FAFNIR

SKU

1085024

Kategorie

Plummer Block Housing Units

Zustand

Neu

1 1.37 28500 3/8 bearing bore comas Dynamic Fafnir flanged Four-Bolt G1106KRRB inch Load mounted N RCJ Seal Shroud

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Fafnir RCJ 1 3/8 Four-Bolt Flanged Mounted Bearing

The Fafnir RCJ 1 3/8 Four-Bolt Flanged Mounted Bearing is designed for high-performance applications, featuring a durable construction with a shroud seal for reliable sealing. Ideal for applications that require a robust bearing system with high dynamic and static load ratings.

Manufacturer: Fafnir

Model: RCJ 1 3/8

Type: Four-Bolt Flanged Mounted Bearing

COMAS P/N: 0.142.802.050.044

Bearing Number: G1106KRRB

Bore Diameter	1.37 Inch, 34.79 mm
Overall Length	117.5 mm
Housing Width A	31.8 mm
Bolt Hole Spacing	92.1 mm
Flange Thickness A1	13.5 mm
Dynamic Load	28500 N
Static Load	15300 N
Seal Type	Shroud Seal
