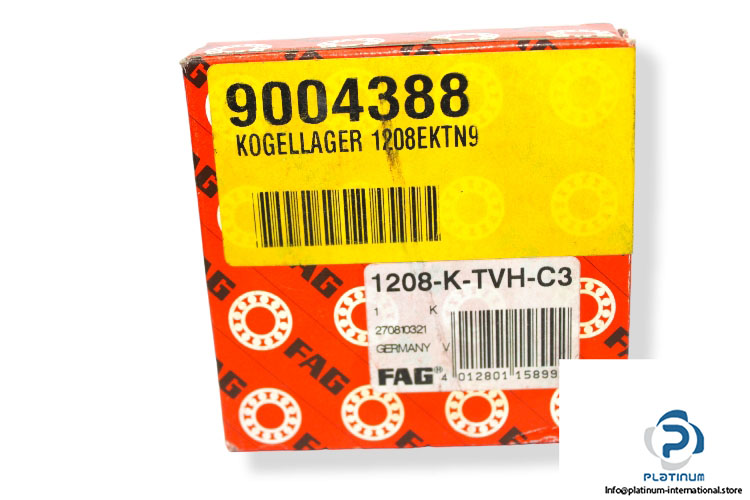

FAG 1208-K-TVH-C3 Self-Aligning Ball Bearing

Manufacturer: Schaeffler FAG

Type: Self-Aligning Ball Bearing with tapered bore

Model: 1208-K-TVH-C3

Replaces: 1208K.TV.C3

Dimensions

Bore Diameter d: 40 mm

Outer diameter D: 80 mm

Width B: 18 mm

Basic load ratings:

Dynamic C_r: 19400 N

Static C_0r: 6500 N

Fatigue load rating: 415 N

Limiting speed: 10100 rpm

Reference Speed: 8600 rpm

Bore Design: Tapered bore, taper 1:12

Cage: TVH ,solid cage made of glass-fiber reinforced polyamide PA66

Radial internal clearance: Group 3 (C3)
