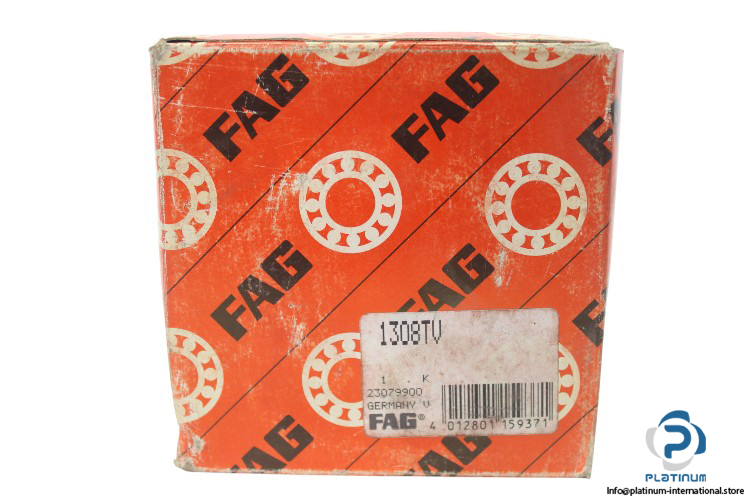

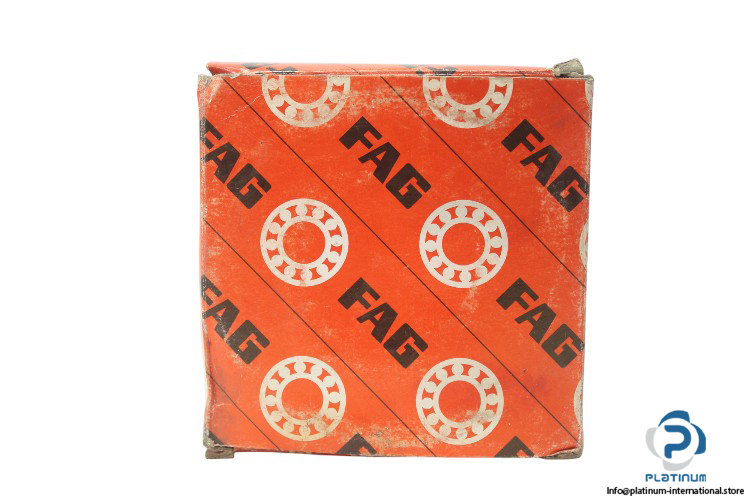

FAG 1308TV Self-Aligning Ball Bearing
Selbstausrichtendes Kugellager Das FAG 1308TV ist ein präzisionsgefertigtes selbstausrichtendes Kugellager mit einem 40 mm Bohrung und einem TV-Polyamidkäfig. Es ist ausgelegt, Fehlstellungen auszugleichen und bei Geschwindigkeiten von bis zu 8.600 1/min zu arbeiten, und gewährleistet eine reibungslose und langlebige Leistung.
FAG 1308TV Self-Aligning Ball Bearing
The FAG 1308TV Self-Aligning Ball Bearing is engineered for applications requiring compensation of misalignments and high running accuracy. Featuring a robust TV cage made of glass-fiber reinforced polyamide PA66, this bearing offers long-lasting durability and low-friction performance at high speeds.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing
Model: 1308TV
| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 90 mm |
| Width (B) | 23 mm |
| Dynamic Load Rating (Cr) | 30,000 N |
| Static Load Rating (C0r) | 9,700 N |
| Fatigue Load Rating | 610 N |
| Limiting Speed | 8,600 1/min |
| Reference Speed | 7,200 1/min |
| Cage | TV, solid cage made of glass-fiber reinforced polyamide PA66 |
