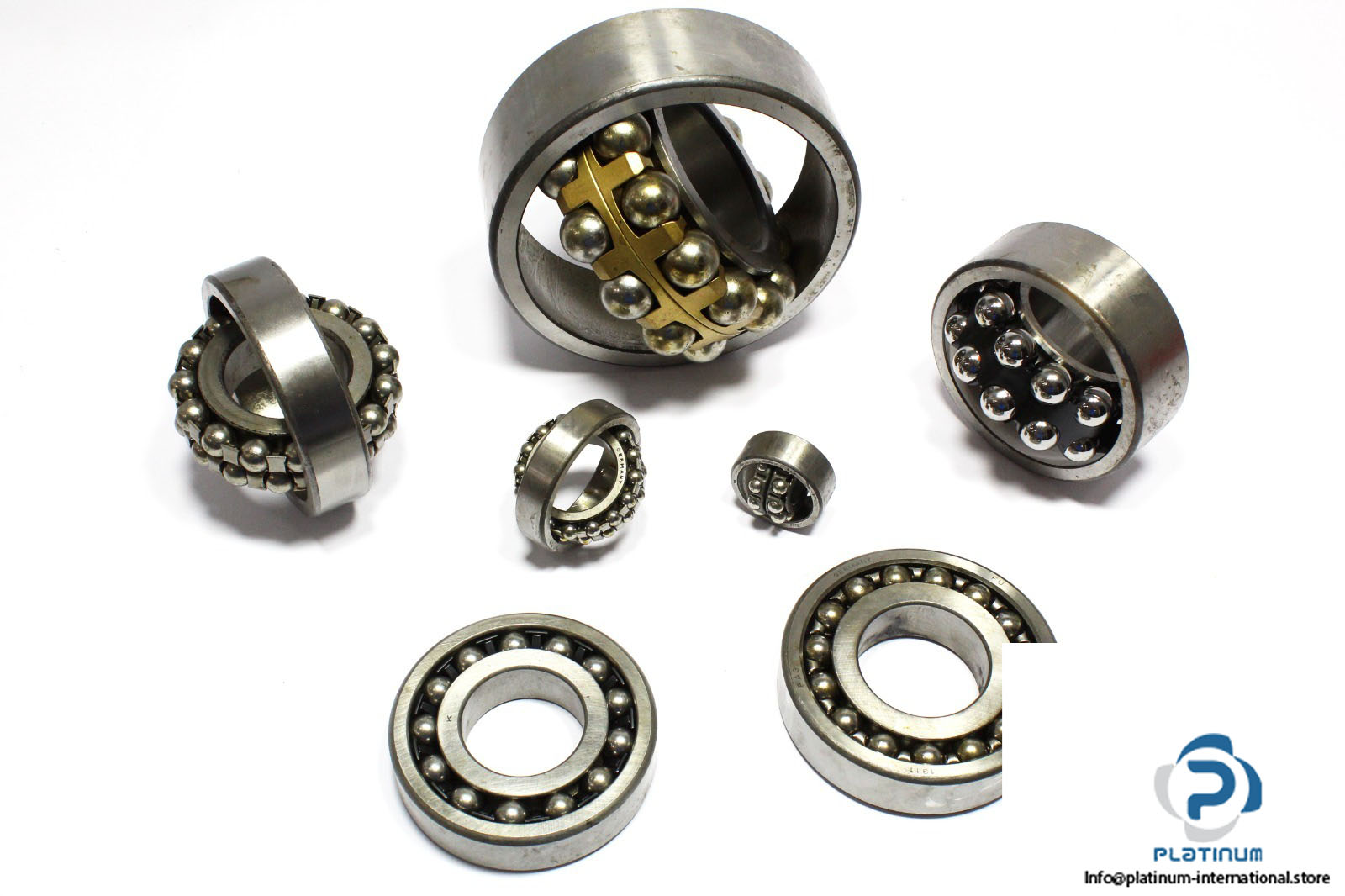

FAG 2216K.TV.C3 Self-Aligning Ball Bearing

Manufacturer: Schaeffler FAG
Type: Self-Aligning Ball Bearing with tapered bore
Model: 2216 K.TV.C3

Dimensions
Bore Diameter d: 80 mm
Outer diameter D: 140 mm
Width B: 33 mm
Dynamic load rating: 49500 N
Static load rating: 19900 N
Fatigue load limit: 1210 N
limiting speed: 5300 RPM
Reference speed: 5400 RPM
Cage material: Glass-fiber reinforced polyamid PA66
Radial internal clearance: C3
Bore: Tapered, taper 1:12
