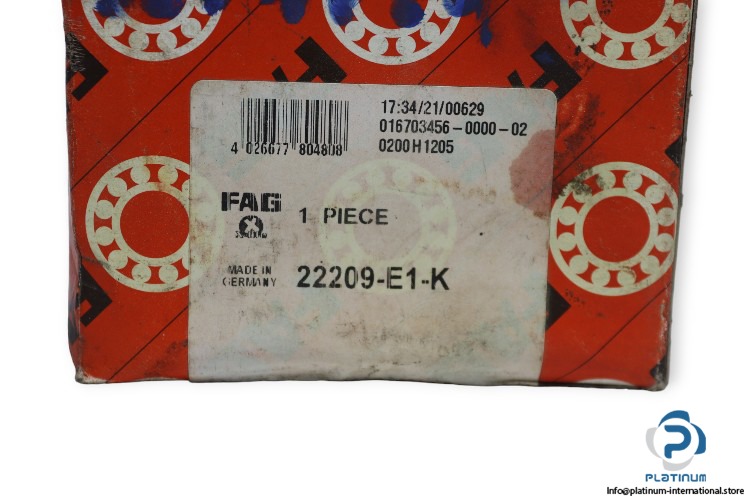

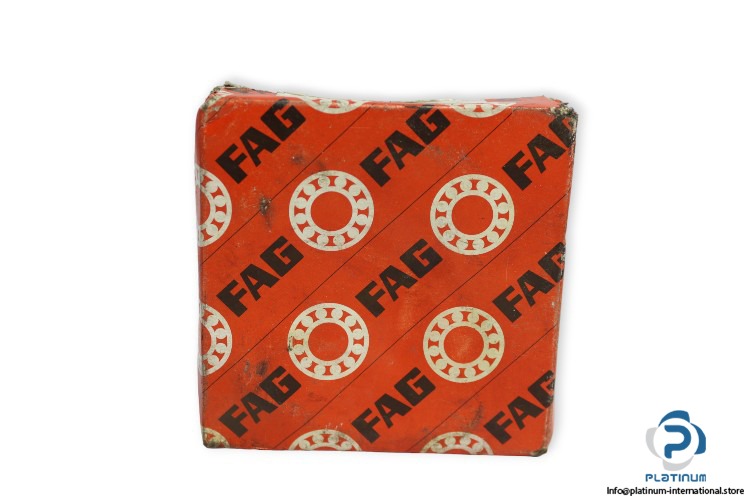

FAG 22209-E1-K Spherical Roller Bearing
Neu
Auf Lager3 EinheitenVersandbereit
Kugelrollenlager FAG 22209E1-K, Kugelrollenlager mit kegeligem Bohrung, Bohrung 45 mm, Außendurchmesser 85 mm, Breite 23 mm, dynamische Belastbarkeit 104000 N, und Grenzdrehzahl 10100 U/min.
1010022209E1-K234585bearingboreCageDesigndiameterDutyE1FagHeavyMetalmmOuterRollerrpmsheetSphericaltaperedWidth
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FAG 22209E1-K Spherical Roller Bearing with Tapered Bore
The FAG 22209E1-K is a high-quality spherical roller bearing with a tapered bore, designed for heavy-duty applications. Featuring an E1 design without a central rib and a robust sheet metal cage, it ensures long service life, high load capacity, and excellent performance in demanding environments.
Manufacturer: FAG
Type: Spherical Roller Bearing with tapered bore
Model: 22209E1-K
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 85 mm |
| Width (B) | 23 mm |
| Basic Dynamic Load Rating, Radial | 104000 N |
| Basic Static Load Rating, Radial | 99000 N |
| Fatigue Load Limit, Radial | 13000 N |
| Limiting Speed | 10100 rpm |
| Reference Speed | 5600 rpm |
| Bore Type | K, Tapered, taper 1:12 |
| Cage | Sheet metal cage |
| Design | E1, without central rib |
