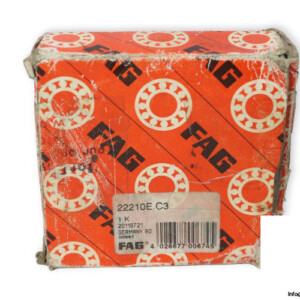

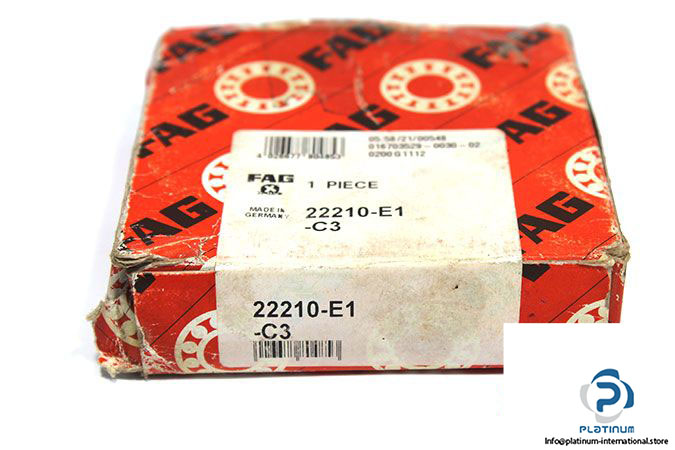

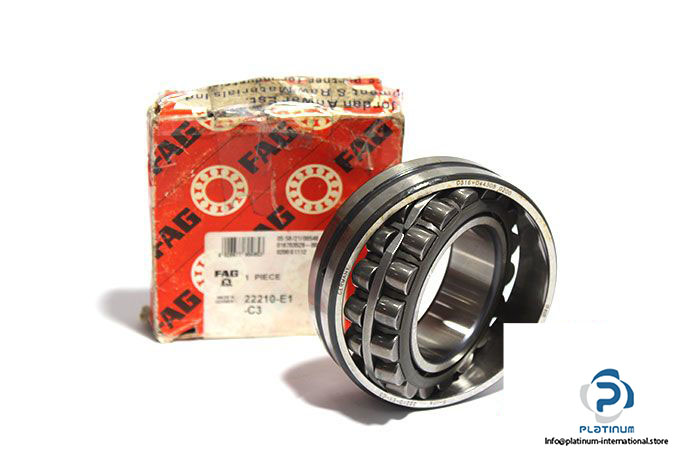

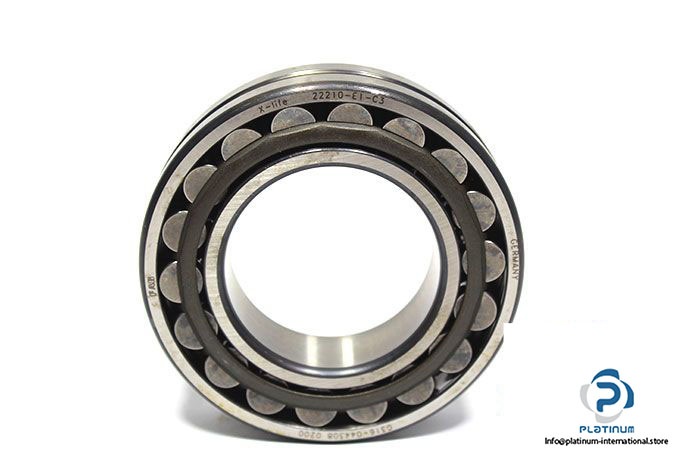

FAG 22210-E1-C3 Spherical Roller Bearing

Manufacturer: FAG
Type: Spherical Roller Bearing
Model: 22210 E1 C3
Replaces: 22210E1.C3, 22210-E1-XL-C3

Dimensions
Bore Diameter d: 50 mm
Outer diameter D: 90 mm
Width B: 23 mm
Basic dynamic load rating, radial: 109000 N
Basic static load rating, radial: 107000 N
Fatigue load limit, radial: 14600 N
Limiting speed: 9800 rpm
Reference speed: 5100 rpm
Cage: Sheet metal cage
Design: E1, without central rip
Radial internal clearance: C3
