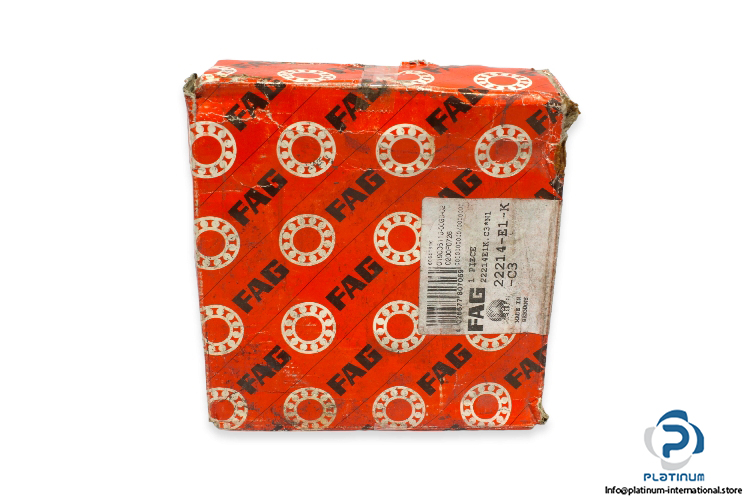

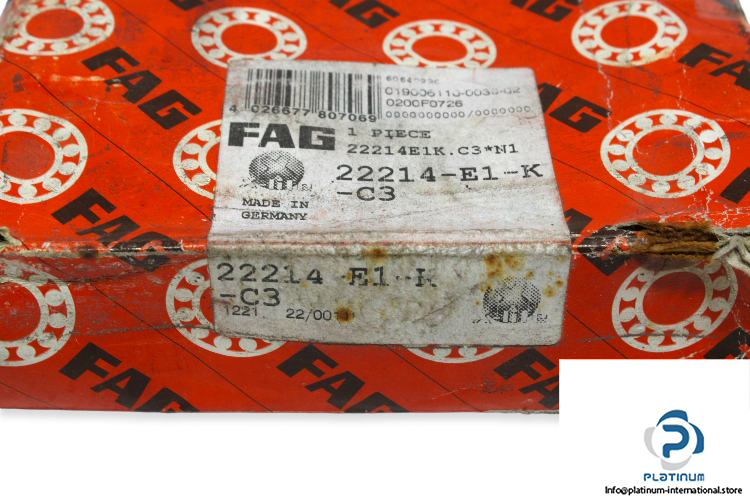

FAG 22214-E1-K-C3 Spherical Roller Bearing

Name: FAG 22214-E1-K-C3 SPHERICAL ROLLER BEARING
Brand: FAG
SKU: 999113
Availability: LimitedAvailability

fag-22214-e1-k-c3-spherical-roller-bearing-1

Neu

Auf Lager1 EinheitVersandbereit

FAG Hochleistungs-Kugelrollenlager mit konischem Innenring und C3-Laufradspiel, entwickelt für hohe Lasten und zuverlässigen Betrieb in anspruchsvollen Industrieumgebungen.

Hersteller

FAG

SKU

999113

Kategorie

Spherical Bearings

Zustand

Neu

22214 bearing bore C3 Clearance Duty Fag Heavy Industrial Roller Schaeffler Spherical tapered

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

FAG 22214-E1-K-C3 Spherical Roller Bearing

The FAG 22214-E1-K-C3 Spherical Roller Bearing from Schaeffler is a high-performance bearing designed for heavy-duty industrial applications requiring high load capacity and reliable operation under challenging conditions.

Manufacturer: FAG / Schaeffler

Type: Spherical Roller Bearing

Model: 22214-E1-K-C3

Replaces: 22214-E1-XL-K-C3, 22214E1K.C3

Bore Diameter d	70 mm
Outer Diameter D	125 mm
Width	31 mm
Dynamic Load Rating	211000 N
Static Load Rating	226000 N
Fatigue Load Limit	28500 N
Limiting Speed	6700 RPM
Reference Speed	3950 RPM
Design	E1, Without Central Rip
Bore Type	Tapered, Taper 1:12
Radial Internal Clearance	Group 3 (C3)
Operating Temperature	-30 / +200 °C
Recommended	Ideal choice for high-load and high-reliability applications”ensure optimal performance by pairing with proper lubrication and mounting accessories.
