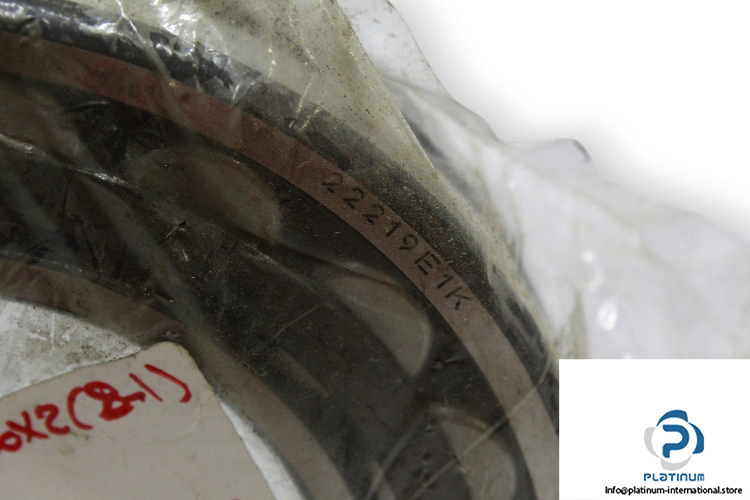

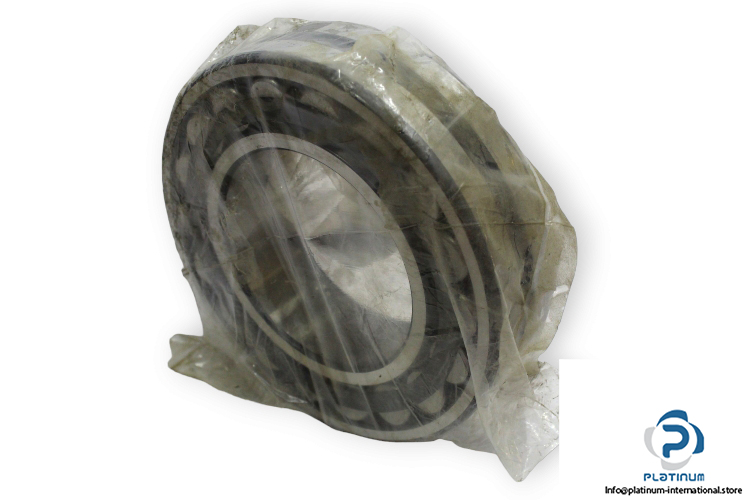

FAG 22219E1K Spherical Roller Bearing

Manufacturer: FAG
Type: Spherical Roller Bearing with tapered bore
Model: 22219 E1K
Replaces: 22219-E1-K, 22219-E1-XL-K

Dimensions
Bore Diameter d: 95 mm
Outer diameter D: 170 mm
Width B: 43 mm
Basic dynamic load rating, radial: 380000 N
Basic static load rating, radial: 415000 N
Fatigue load limit, radial: 48000 N
Limiting speed: 4850 rpm
Reference speed: 3300 rpm
Bore type: K, Tapered, taper 1:12
Cage: Sheet metal cage
Design: E1, without central rip
