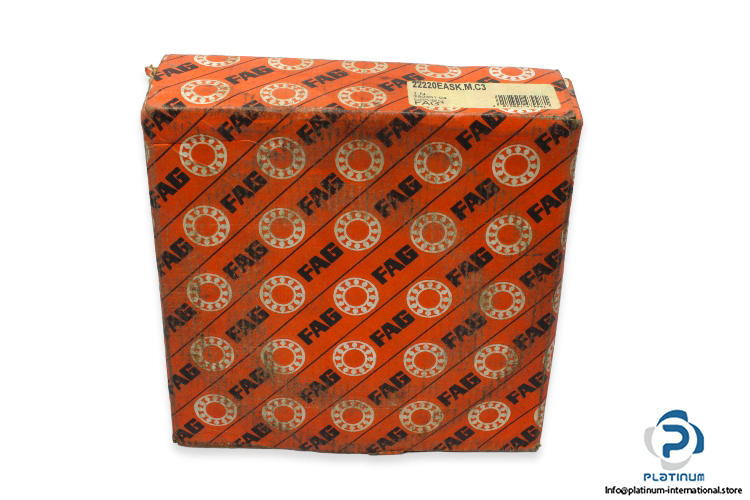

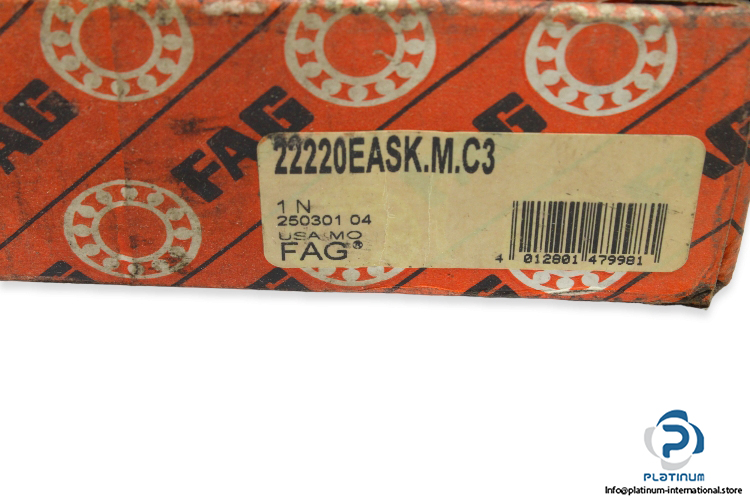

FAG 22220EASK.M.C3 Spherical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

Model: 22220 EASK.M.C3

Dimensions:

Bore Diameter d: 100 mm

Outer diameter D: 180 mm

Width: 46 mm

Bore type: Tapered 1:12

Dynamic load rating: 430000 N

Static load rating: 475000 N

Fatigue load limit: 53000 N

limiting speed: 4550 RPM

Reference speed: 3150 RPM

Radial internal clearance: Group 3 (C3)

Cage material: Solid brass cage

Operating temperature: -30 … +200 °C
